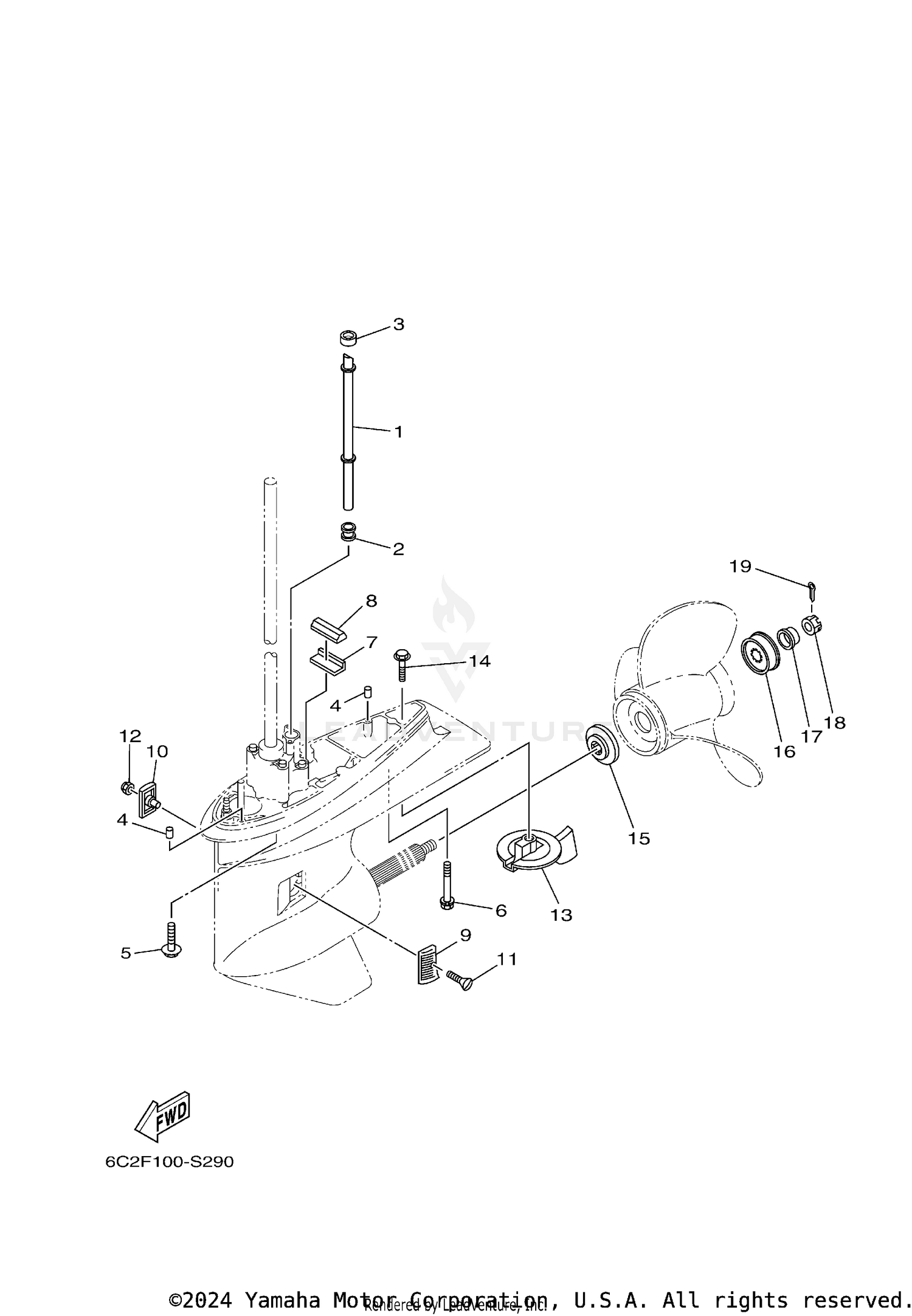

| Ref | Part Number | Description |
|---|
| 2 |
663-44367-01-00 |
DAMPER, WATER SEAL 3 Price: $5.55 |
| 3 |
663-44366-01-00 |
DAMPER, WATER SEAL 2 Price: $6.30 |
| 4 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 7 |
663-45376-00-00 |
GUIDE, SEAL DAMPER Price: $14.90 |
| 8 |
688-45375-00-00 |
DAMPER, SEAL Price: $13.75 |
| 9 |
6H1-45214-00-00 |
COVER, WATER INLET 1 Price: $14.20 |
| 10 |
6H1-45215-00-00 |
COVER, WATER INLET 2 Price: $14.20 |
| 11 |
90151-05M00-00 |
SCREW, COUNTERSUNK Price: $3.35 |
| 12 |
90185-05904-00 |
NUT, SELF-LOCKING This part replaces 90185-05002-00. Price: $2.25 |
| 13 |
67F-45371-00-00 |
TAB-TRIM Price: $27.50 |
| 14 |
90105-10M00-00 |
BOLT, FLANGE This part replaces 90105-10M67-00. Price: $5.20 |
| 15 |
688-45987-01-00 |
SPACER 1 Price: $55.00 |
| 16 |
67F-45997-00-00 |
SPACER 2 Price: $21.80 |
| 17 |
90389-25M00-00 |
BUSH Price: $19.55 |
| 18 |
90171-16011-00 |
NUT, CASTLE Price: $18.90 |
