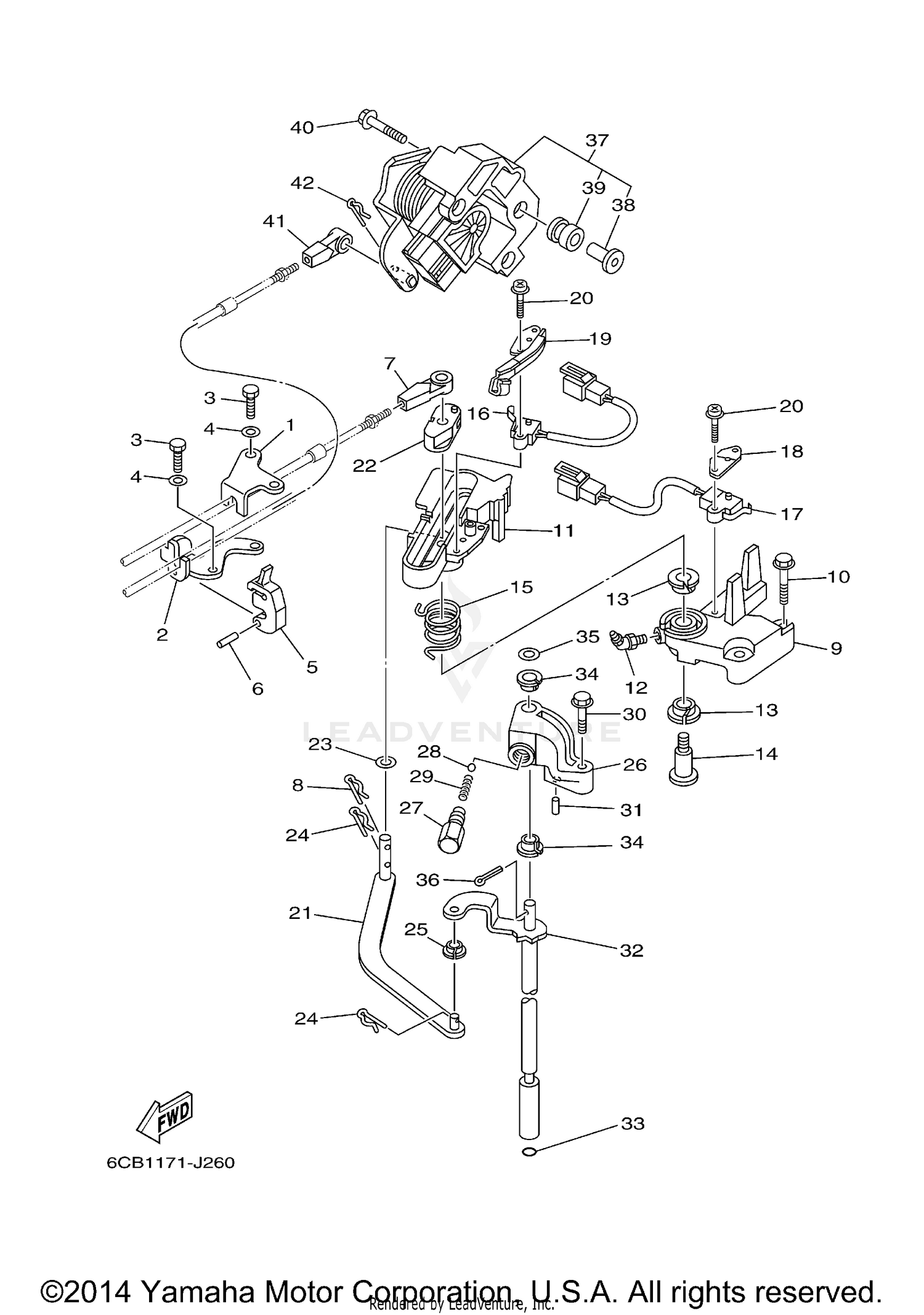

| Ref | Part Number | Description |
|---|
| 1 |
6CB-48531-00-00 |
BRACKET, REMOTE CONTROL 1 Price: $8.95 |
| 2 |
6CB-48532-00-00 |
BRACKET, REMOTE CONTROL 2 Price: $38.95 |
| 3 |
97D95-06016-00 |
BOLT, HEXAGON DEEP R This part replaces 97095-06016-00. Price: $2.76 |
| 4 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 5 |
6E5-48538-00-00 |
CLAMP, CABLE 1 Price: $40.65 |
| 6 |
91690-30010-00 |
PIN, SPRING Price: $6.15 |
| 7 |
6E5-48344-00-00 |
CABLE END, REMOTE CONTROL Price: $14.05 |
| 8 |
90468-18008-00 |
CLIP Price: $1.55 |
| 9 |
6CB-44117-00-00 |
BRACKET Price: $39.35 |
| 10 |
95D95-06035-00 |
BOLT, FLANGE DEEP This part replaces 95895-06035-00. Price: $1.10 |
| 11 |
69J-44176-01-00 |
BRACKET Price: $48.25 |
| 12 |
93700-06M01-00 |
NIPPLE, GREASE Price: $8.60 |
| 13 |
90386-12069-00 |
BUSH Price: $10.40 |
| 14 |
90109-08019-00 |
BOLT Price: $17.70 |
| 15 |
90508-20052-00 |
SPRING, TORSION Price: $7.60 |
| 16 |
60V-8259F-01-00 |
SWITCH ASSY This part replaces 60V-8259F-00-00. Price: $57.55 |
| 17 |
69J-8259F-00-00 |
SWITCH ASSY Price: $113.05 |
| 18 |
61A-82588-01-00 |
PLATE Price: $5.95 |
| 19 |
6CB-82588-00-00 |
PLATE Price: $12.75 |
| 20 |
97985-04116-00 |
SCREW, WITH WASHER Price: $3.55 |
| 21 |
6CB-44121-00-00 |
LEVER, SHIFT ROD Price: $74.70 |
| 22 |
69J-44122-00-00 |
BUSHING, SHIFT ROD LEVER Price: $6.60 |
| 23 |
90202-08M20-00 |
WASHER, PLATE Price: $6.40 |
| 24 |
90468-18008-00 |
CLIP Price: $1.55 |
| 25 |
90386-06M12-00 |
BUSH Price: $10.10 |
| 26 |
69J-44118-00-00 |
BRACKET Price: $40.25 |
| 27 |
648-42715-00-00 |
BUSHING Price: $15.40 |
| 28 |
93501-04M02-00 |
BALL Price: $2.10 |
| 29 |
90501-12082-00 |
SPRING, COMPRESSION Price: $6.60 |
| 30 |
97E75-06535-00 |
BOLT, HEXAGON W/W This part replaces 97575-06535-00. Price: $4.40 |
| 31 |
91690-30010-00 |
PIN, SPRING Price: $6.15 |
| 32 |
6CB-44120-02-00 |
HANDLE GEAR SHIFT AS This part replaces 6CB-44120-00-00. Price: $329.35 |
| 33 |
93210-09350-00 |
O-RING This part replaces 93210-09165-00. Price: $7.49 |
| 34 |
90386-90M90-00 |
BUSH Price: $6.60 |
| 35 |
90201-09M02-00 |
WASHER, PLATE Price: $6.30 |
| 36 |
91490-20015-00 |
PIN. COTTER Price: $2.20 |
| 37 |
6CB-8A410-11-00 |
SENSOR UNIT This part replaces 6CB-8A410-00-00. Price: $377.90 |
| 38 |
6P2-44139-00-00 |
COLLAR Price: $14.45 |
| 39 |
6CB-41273-00-00 |
GROMMET Price: $15.05 |
| 40 |
90119-06297-00 |
BOLT, WITH WASHER This part replaces 90119-06126-00. Price: $1.90 |
| 41 |
6E5-48344-00-00 |
CABLE END, REMOTE CONTROL Price: $14.05 |
