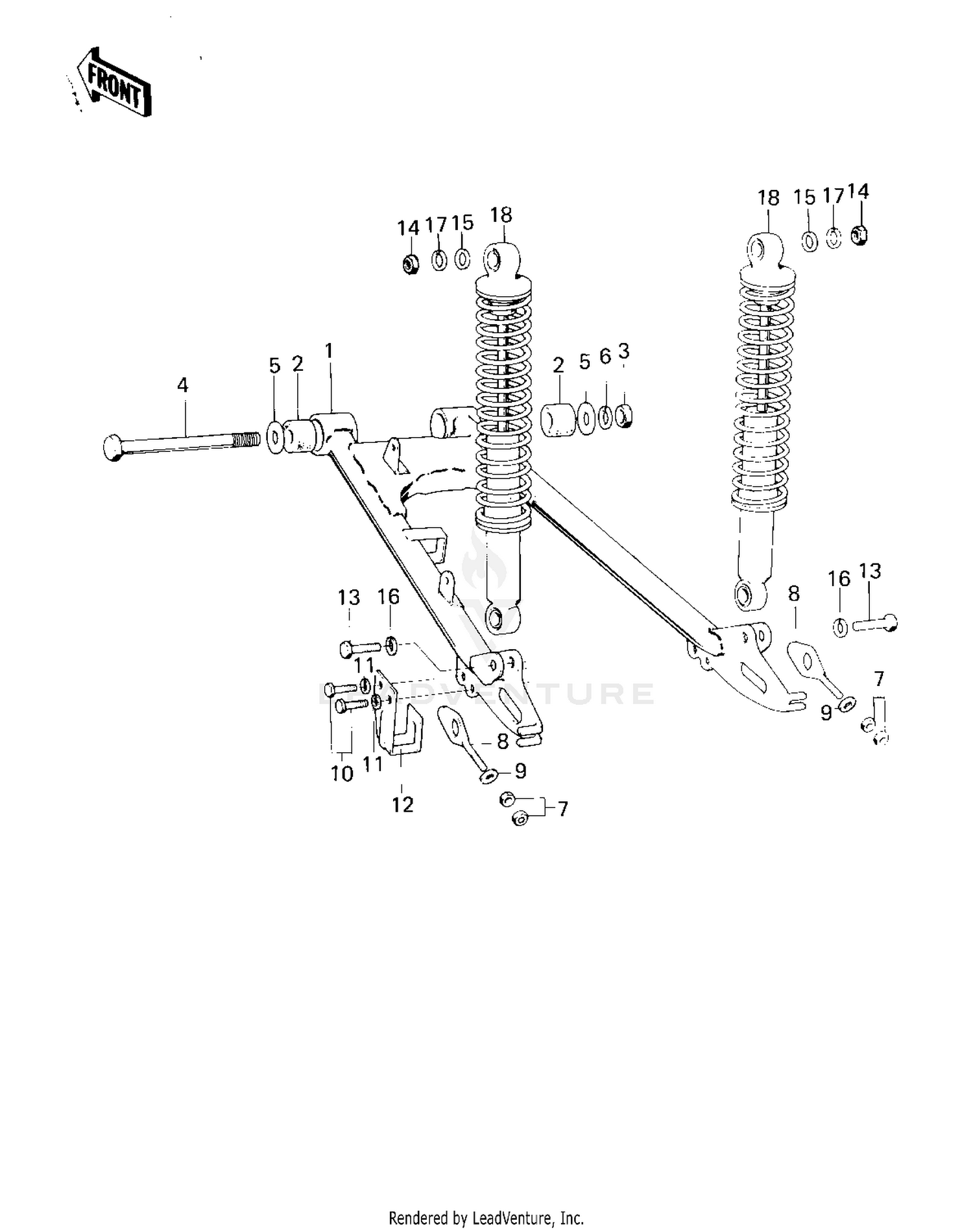

| Ref | Part Number | Description |
|---|
| 1 |
33001-1045 |
ARM,SWINGING Price: $136.14 |
| 2 |
92092-005 |
BUSHING-RUBBER Price: $14.10 |
| 3 |
92015-1381 |
NUT,12MM This part replaces 314B1200. Price: $2.67 |
| 4 |
33032-043 |
SHAFT,SWING ARM PIVOT Price: $28.34 |
| 5 |
410AA1200 |
WASHER-PLAIN-SMALL,12MM This part replaces 410B1200. Price: $0.72 |
| 6 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 7 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 8 |
33040-008 |
ADJUSTER CHAIN Price: $10.48 |
| 9 |
92022-1565 |
WASHER,6.5X16X2 Price: $3.92 |
| 10 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 11 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 12 |
55020-012 |
GUARD,CHAIN Price: $9.13 |
| 13 |
112G1030 |
BOLT-UPSET,10X30 Price: $8.84 |
| 14 |
315AA1200 |
NUT-HEX-FINE This part replaces 315B1200. Price: $0.95 |
| 15 |
410AA1200 |
WASHER-PLAIN-SMALL,12MM This part replaces 410B1200. Price: $0.72 |
| 16 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 17 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
