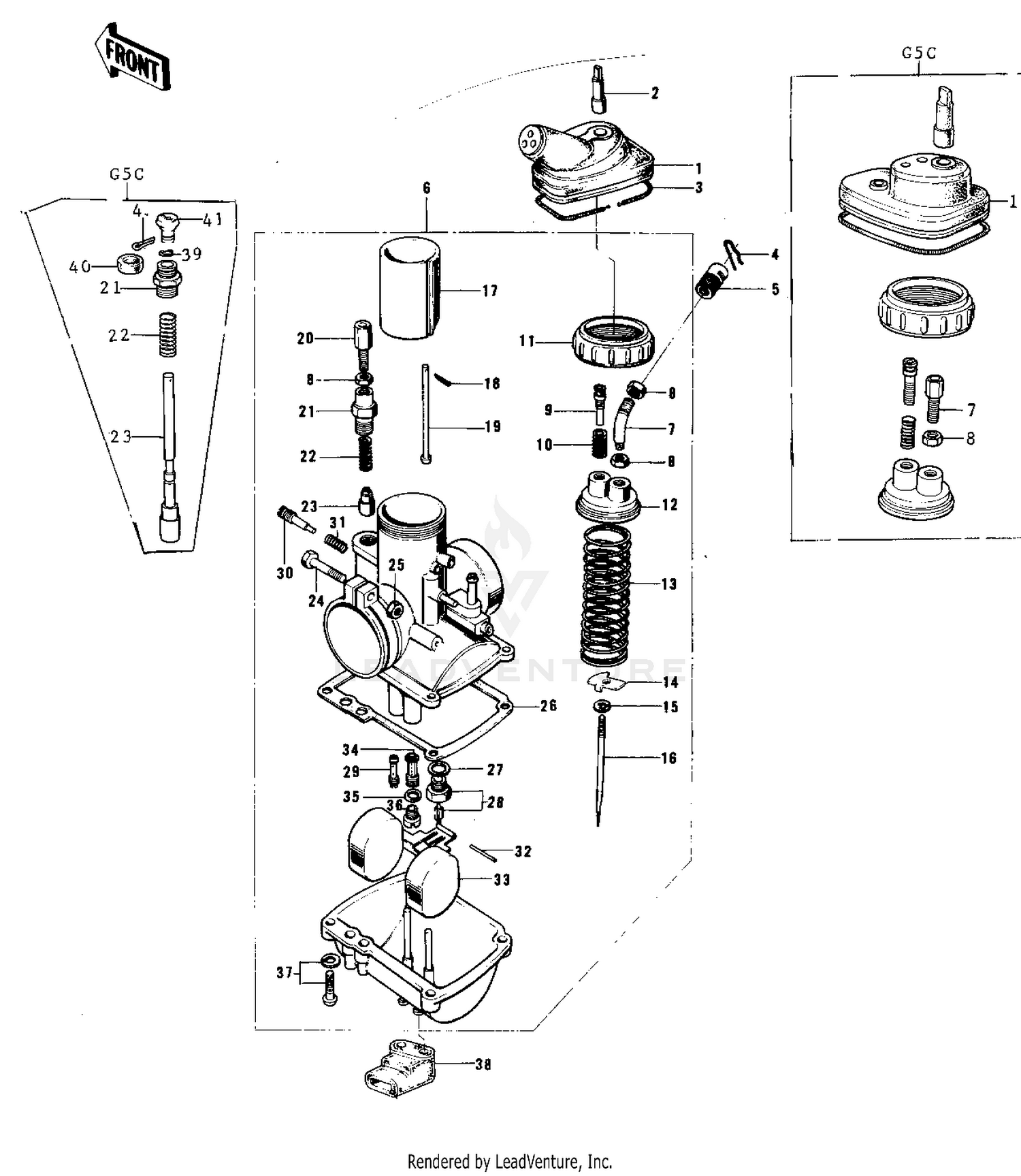

| Ref | Part Number | Description |
|---|
| 1 |
14038-033 |
CAP,CARBURETOR Price: $12.37 |
| 2 |
16147-001 |
PLUG,CARBURETOR CAP Price: $5.17 |
| 3 |
92081-047 |
SPRING COIL Price: $11.29 |
| 4 |
92036-018 |
RING-SNAP Price: $3.89 |
| 5 |
16002-007 |
CABLE ADJUSTER Price: $11.09 |
| 7 |
16077-001 |
CABLE GUIDE Price: $9.02 |
| 8 |
16003-004 |
NUT CABLE ADJUST LOCK Price: $7.34 |
| 9 |
16021-002 |
SCREW,THROTTLE STOP Price: $18.22 |
| 10 |
16022-005 |
SPRING THR STOP SCREW Price: $8.68 |
| 11 |
16004-010 |
CAP MIXING CHAMBER Price: $20.59 |
| 12 |
16005-005 |
TOP MIXING CHAMBER Price: $20.79 |
| 13 |
16006-013 |
SPRING THROTTLE VALVE Price: $15.02 |
| 14 |
16007-020 |
SPRING SEAT,THRTL TL Price: $10.97 |
| 15 |
16008-010 |
CIRCLIP Price: $9.21 |
| 16 |
16009-059 |
JET NEEDLE 4EJ7 Price: $37.51 |
| 18 |
550AA1210 |
PIN-COTTER,1.2X10 This part replaces 550D1210. Price: $2.65 |
| 19 |
16024-012 |
ROD,THROTTLE VLV STP Price: $10.79 |
| 20 |
16002-002 |
CABLE ADJUSTER Price: $11.83 |
| 21 |
16012-004 |
CAP STARTER PLUNGER Price: $11.80 |
| 22 |
16013-003 |
SPRING-PLUNGER Price: $6.16 |
| 23 |
16016-002 |
PLUNGER-ENRICHNER Price: $31.85 |
| 24 |
16010-004 |
SCREW CLAMP Price: $5.57 |
| 25 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 26 |
16019-021 |
GASKET,FLOAT CHAMBER Price: $20.79 |
| 27 |
16029-002 |
WASHER VALVE SEAT Price: $4.46 |
| 28 |
16030-001 |
FLOAT VALVE ASSY Price: $56.16 |
| 29 |
92064-020 |
PILOT JET #17.5 ISO Price: $19.96 |
| 30 |
16014-002 |
SCREW PILOT AIR ADJST Price: $18.22 |
| 31 |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
| 32 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 33 |
16031-015 |
FLOAT Price: $56.16 |
| 34 |
16017-068 |
NEEDLE JET O-Z Price: $55.22 |
| 35 |
16034-001 |
WASHER MAIN JET Price: $4.31 |
| 37 |
223AA0418 |
SCREW-PAN-WS-CROS This part replaces 16033-012. Price: $1.88 |
| 38 |
16136-007 |
GROMMET,OVER FLOW Price: $9.50 |
