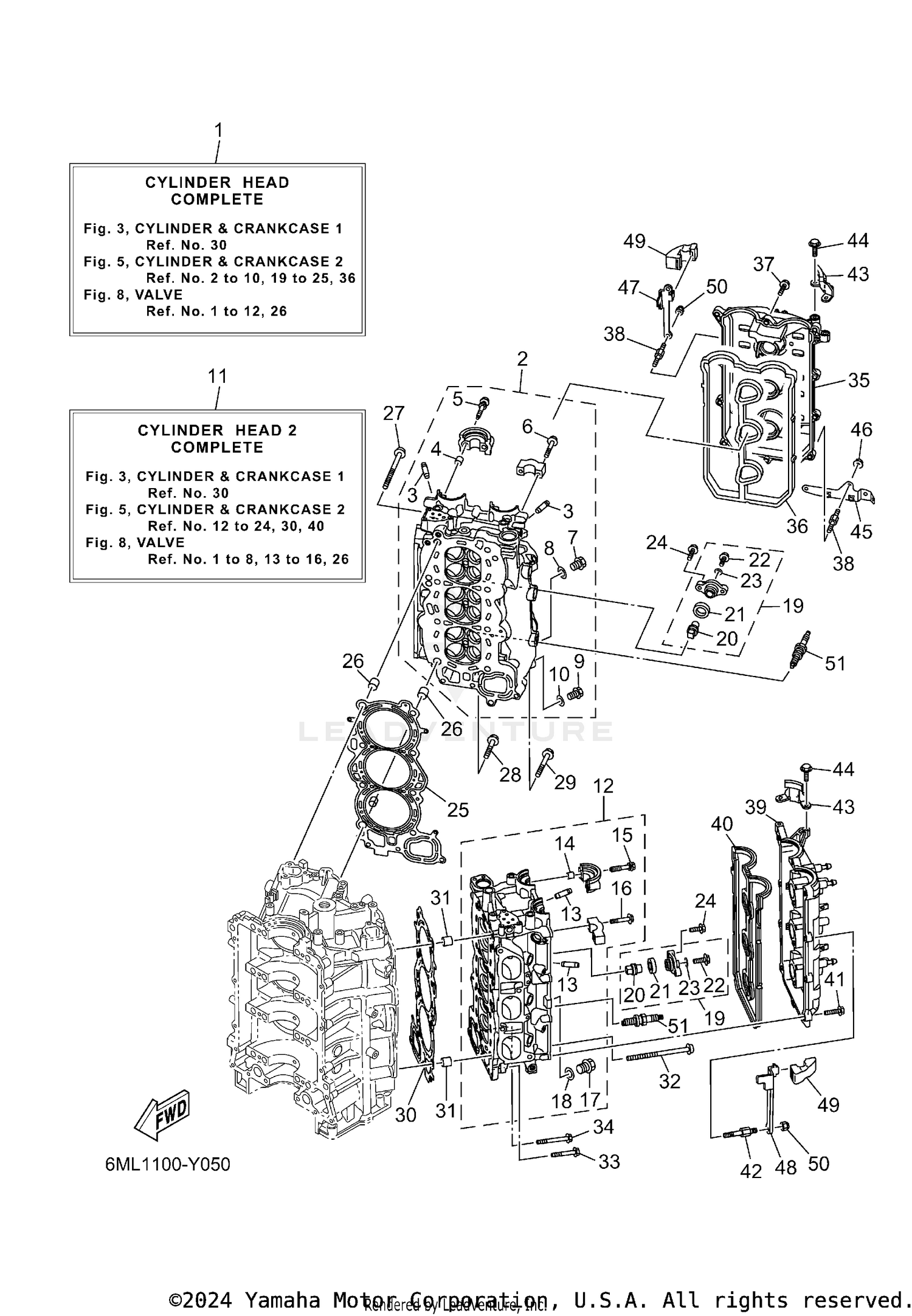

| Ref | Part Number | Description |
|---|
| 1 |
6ML-W009A-00-9S |
CYLINDER HEAD COMPLETE Price: $8,539.15 |
| 2 |
6ML-11110-00-9S |
CYLINDER HEAD ASSY Price: $4,713.45 |
| 3 |
6S5-11133-10-00 |
GUIDE, VALVE 1 Price: $58.49 |
| 4 |
91809-08006-00 |
PIN, DOWEL Price: $5.55 |
| 5 |
90119-07001-00 |
BOLT, WITH WASHER Price: $20.65 |
| 6 |
90119-07234-00 |
BOLT, WITH WASHER Price: $3.20 |
| 7 |
90340-18M09-00 |
PLUG, STRAIGHT SCREW Price: $28.10 |
| 8 |
90201-186F1-00 |
WASHER, PLATE Price: $10.49 |
| 9 |
90340-14M06-00 |
PLUG, STRAIGHT SCREW Price: $14.20 |
| 10 |
90430-14115-00 |
GASKET Price: $3.00 |
| 11 |
6ML-W009C-00-9S |
CYLINDER HEAD 2 COMPLETE Price: $8,539.15 |
| 12 |
6ML-11120-00-9S |
CYLINDER HEAD ASSY 2 Price: $4,852.75 |
| 13 |
6S5-11133-10-00 |
GUIDE, VALVE 1 Price: $58.49 |
| 14 |
91809-08006-00 |
PIN, DOWEL Price: $5.55 |
| 15 |
90119-07001-00 |
BOLT, WITH WASHER Price: $20.65 |
| 16 |
90119-07234-00 |
BOLT, WITH WASHER Price: $3.20 |
| 17 |
90340-18M09-00 |
PLUG, STRAIGHT SCREW Price: $28.10 |
| 18 |
90201-186F1-00 |
WASHER, PLATE Price: $10.49 |
| 19 |
6ML-11301-00-00 |
ANODE COVER ASSY Price: $56.30 |
| 21 |
67F-11328-01-00 |
GROMMET, ANODE Price: $3.80 |
| 22 |
90105-06M07-00 |
BOLT, FLANGE Price: $2.30 |
| 23 |
90430-06M03-00 |
GASKET Price: $3.65 |
| 24 |
95D95-08025-00 |
BOLT, FLANGE DEEP Price: $1.90 |
| 26 |
90387-11005-00 |
COLLAR Price: $7.70 |
| 27 |
90149-11001-00 |
SCREW Price: $15.20 |
| 28 |
90105-08175-00 |
BOLT, FLANGE Price: $6.40 |
| 29 |
90105-08220-00 |
BOLT, FLANGE Price: $7.05 |
| 31 |
90387-11005-00 |
COLLAR Price: $7.70 |
| 32 |
90149-11001-00 |
SCREW Price: $15.20 |
| 33 |
90105-08175-00 |
BOLT, FLANGE Price: $6.40 |
| 34 |
90105-08220-00 |
BOLT, FLANGE Price: $7.05 |
| 35 |
6ML-11191-00-00 |
COVER, CYLINDER HEAD 1 Price: $412.00 |
| 36 |
6CB-11193-00-00 |
GASKET, HEAD COVER 1 Price: $42.15 |
| 37 |
95D95-06030-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 38 |
90109-06277-00 |
BOLT Price: $21.85 |
| 39 |
6CB-11192-02-00 |
COVER, CYLINDER HEAD 2 Price: $195.50 |
| 40 |
6CB-11194-00-00 |
GASKET, HEAD COVER 2 Price: $44.05 |
| 41 |
95D95-06030-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 42 |
90109-06277-00 |
BOLT Price: $21.85 |
| 43 |
6ML-15142-00-00 |
GUIDE 1 Price: $23.40 |
| 44 |
95D95-06014-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 45 |
6KA-2134V-00-00 |
BRACKET Price: $43.00 |
| 46 |
90179-06M28-00 |
NUT Price: $4.75 |
| 47 |
6KW-11998-00-00 |
BRACKET 1 Price: $27.40 |
| 48 |
6KW-11999-00-00 |
BRACKET 2 Price: $30.20 |
| 49 |
6KW-42662-00-00 |
DAMPER Price: $10.00 |
| 50 |
90185-06M07-00 |
NUT, SELF-LOCKING Price: $3.15 |
