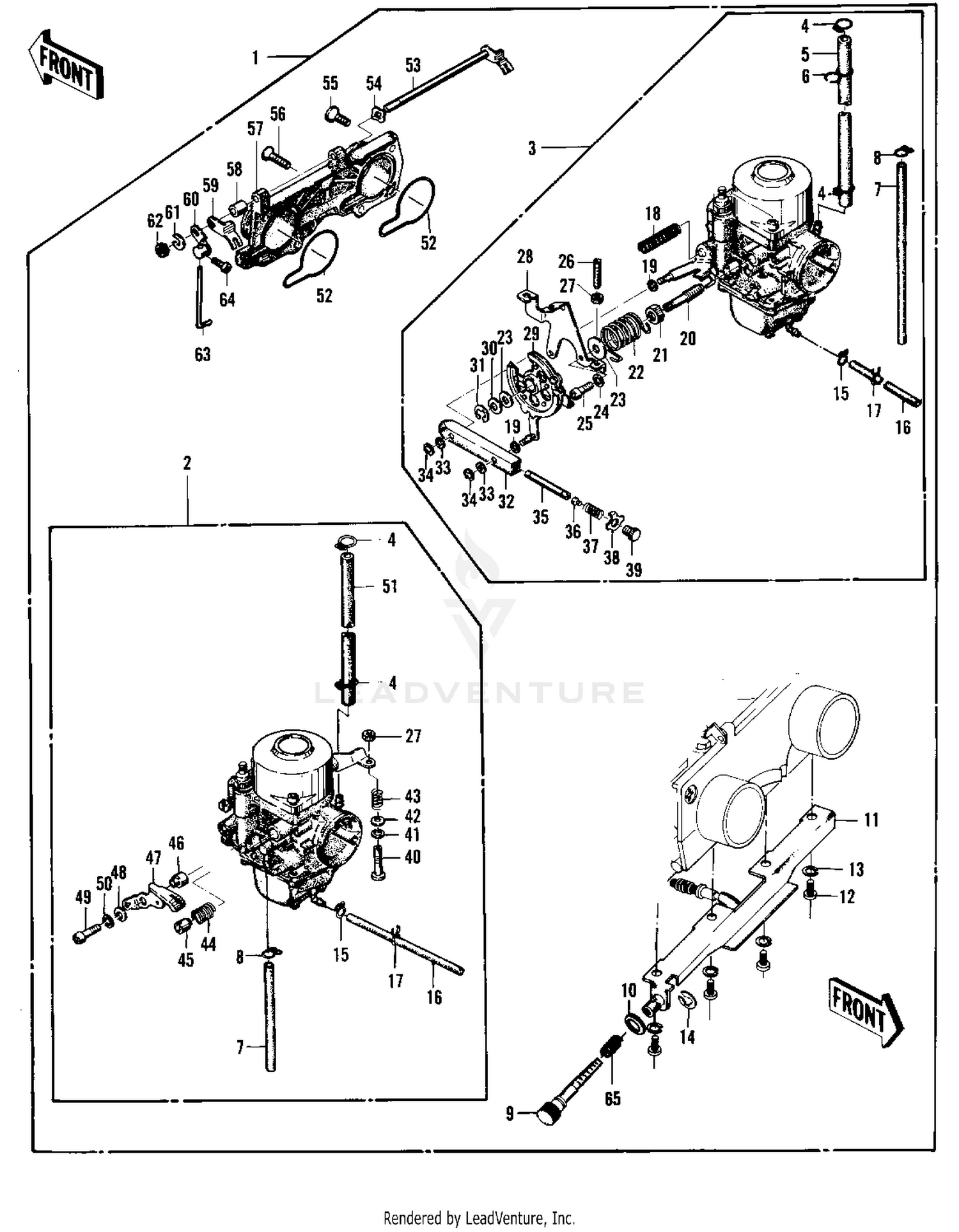

| Ref | Part Number | Description |
|---|
| 1 |
16001-275 |
CARBURETOR ASSY Price: $552.22 |
| 2 |
16001-282 |
CARBURETOR,R.H Price: $255.96 |
| 3 |
16001-283 |
CARBURETOR,L.H Price: $268.06 |
| 4 |
92037-1040 |
CLAMP,FUEL HOSE Price: $6.31 |
| 6 |
16044-005 |
CLAMP,FUEL HOSE Price: $1.20 |
| 7 |
92059-110 |
HOSE Price: $17.42 |
| 8 |
16044-004 |
CLAMP,HOSE Price: $0.55 |
| 9 |
16021-024 |
SCREW,THROTTLE STOP Price: $21.53 |
| 10 |
16039-029 |
WASHER,PLAIN,7MM Price: $2.03 |
| 11 |
16065-044 |
STAY PLATE Price: $20.80 |
| 12 |
220AA0406 |
SCREW-PAN CROS,4X6 This part replaces 220B0406. Price: $1.67 |
| 13 |
461F0400 |
WASHER SPRING 4MM Price: $0.47 |
| 14 |
482J6000 |
CIRCLIP-TYPE-E,6MM Price: $0.69 |
| 15 |
92037-1142 |
CLAMP,TUBE Price: $4.31 |
| 17 |
16044-002 |
CLAMP,OVERFLOW HOSE Price: $0.98 |
| 18 |
16040-013 |
SPRING,THR CABLE PLY Price: $4.07 |
| 19 |
16034-009 |
WASHER,WAVE Price: $2.05 |
| 20 |
16041-008 |
SCREW,BALANCE ADJUST Price: $15.01 |
| 21 |
16003-010 |
NUT,5MM Price: $2.08 |
| 22 |
16040-011 |
SPRING,ADJUST Price: $9.06 |
| 23 |
16039-023 |
WASHER,PLAIN Price: $1.52 |
| 24 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 25 |
220AA0510 |
SCREW-PAN-CROS,5X10 This part replaces 220B0510. Price: $0.71 |
| 26 |
16046-006 |
SCREW,SLOTTED Price: $3.73 |
| 27 |
16003-011 |
NUT,5MM Price: $2.24 |
| 28 |
16070-002 |
HOLDER,THR CABL PULY Price: $22.47 |
| 29 |
16074-003 |
PULLEY,THROTTLE CABL Price: $29.11 |
| 30 |
16039-024 |
WASHER,PLAIN,8MM Price: $1.57 |
| 31 |
482J6000 |
CIRCLIP-TYPE-E,6MM Price: $0.69 |
| 32 |
16071-002 |
LINK,ADJUSTER Price: $29.22 |
| 33 |
16039-030 |
WASHER,PLAIN,3MM Price: $2.67 |
| 34 |
16008-013 |
CIRCLIP Price: $2.05 |
| 35 |
16002-015 |
ROD CABLE ADJUSTING Price: $7.31 |
| 36 |
16042-007 |
PLUG,CABLE ADJST ROD Price: $2.60 |
| 37 |
16040-012 |
SPRING,CABLE ADJUST Price: $2.42 |
| 38 |
16054-006 |
WASHER,LOCK,7MM Price: $1.76 |
| 39 |
16067-007 |
BOLT,HEX HEAD,7MM Price: $4.45 |
| 44 |
16040-014 |
SPRING,CHOKE LEVER Price: $6.71 |
| 45 |
16147-002 |
CONTACT,CHOKE LEVER Price: $10.85 |
| 46 |
16073-010 |
COLLAR,CHOKE LEVER Price: $4.98 |
| 47 |
16063-006 |
LEVER,CHOKE Price: $8.86 |
| 48 |
16039-027 |
WASHER,PLAIN Price: $1.59 |
| 49 |
220AA0520 |
SCREW-PAN-CROS This part replaces 220B0520. Price: $0.68 |
| 50 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 52 |
16038-015 |
O RING,CARB MOUNT Price: $16.74 |
| 52 |
16038-023 |
O RING,CARB MOUNT Price: $4.59 |
| 53 |
16041-019 |
SHAFT,THROTTLE VALVE Price: $15.01 |
| 54 |
16034-010 |
WASHER,WAVE Price: $1.76 |
| 55 |
220AA0616 |
SCREW-PAN-CROS,6X16 This part replaces 220B0616. Price: $3.04 |
| 56 |
220AA0620 |
SCREW-PAN-CROS,6X20 This part replaces 220B0620. Price: $5.82 |
| 57 |
16070-003 |
PLATE,CARB MOUNTING Price: $54.72 |
| 58 |
16073-011 |
COLLAR,CHOKE LEV SHFT Price: $2.05 |
| 59 |
16063-011 |
LEVER,THROTTLE VALVE Price: $7.61 |
| 60 |
16063-008 |
LEVER,THROTTLE VALVE Price: $7.63 |
| 61 |
16054-007 |
WASHER,LOCK,6MM Price: $1.30 |
| 62 |
16003-012 |
NUT,6MM Price: $2.05 |
| 63 |
16024-013 |
ROD Price: $2.42 |
| 64 |
92009-1123 |
SCREW,3X5 This part replaces 220B0305A. Price: $0.59 |
