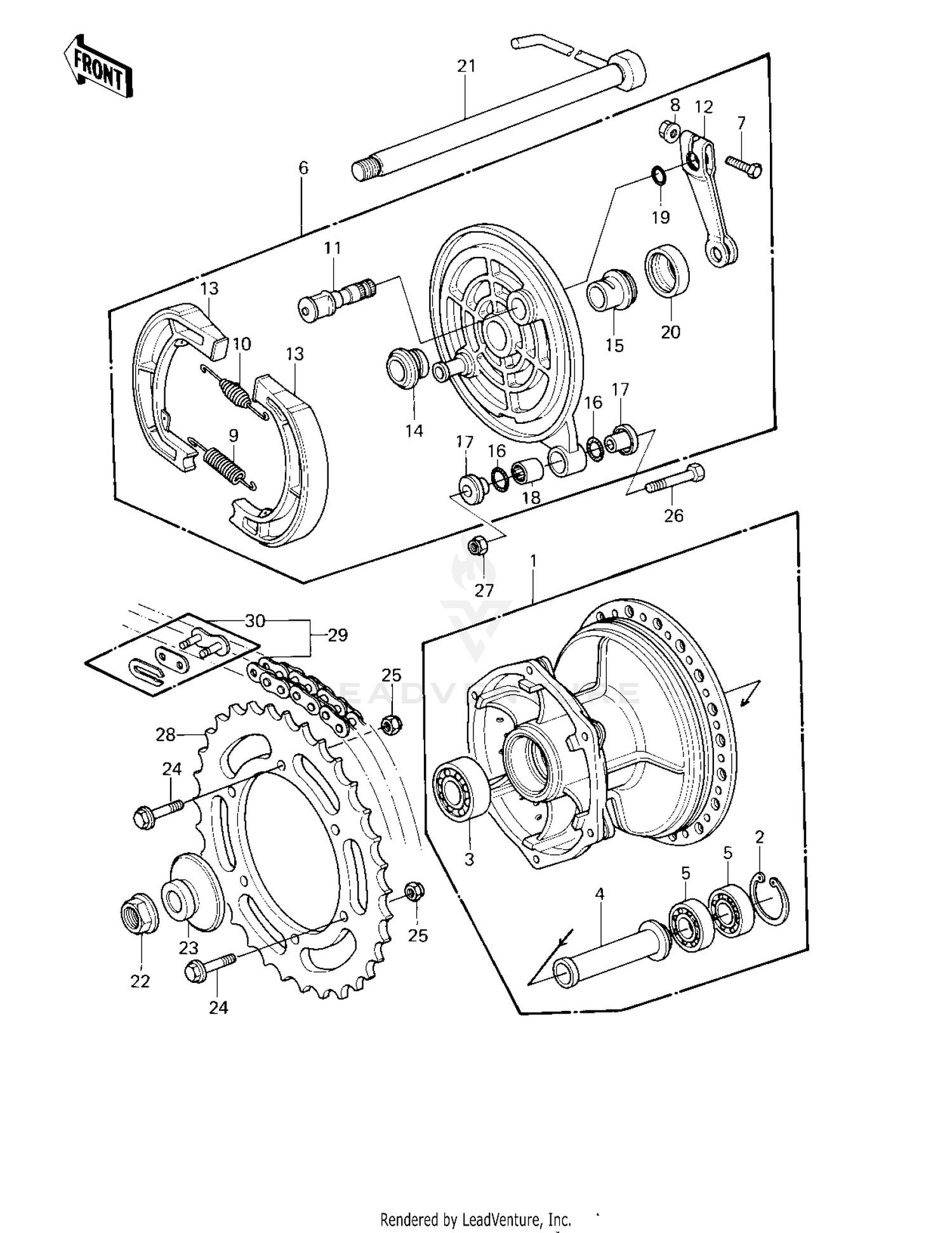

| Ref | Part Number | Description |
|---|
| 1 |
41034-1017 |
DRUM-ASSY,RR BRK Price: $449.32 |
| 2 |
481J3500 |
CIRCLIP-TYPE-C,35MM Price: $1.96 |
| 3 |
601B6004UU |
BEARING-BALL,#6004UUC3 Price: $28.82 |
| 4 |
92027-1207 |
COLLAR,REAR BRAKE Price: $45.82 |
| 5 |
601B6003U |
BEARING-BALL,#6003UC3 Price: $22.40 |
| 6 |
41035-1031 |
PANEL-ASY,RR BRK Price: $385.63 |
| 7 |
112BA0630 |
BOLT-UPSET This part replaces 112G0630. Price: $1.38 |
| 8 |
92210-0630 |
NUT,FLANGED,6MM This part replaces 92015-1078. Price: $2.00 |
| 9 |
92081-1766 |
SPRING,BRAKE SHOE Price: $8.03 |
| 10 |
92081-1550 |
SPRING,BRAKE SHOE Price: $9.49 |
| 11 |
41050-1017 |
CAM SHAFT,RR BRAKE Price: $23.52 |
| 12 |
41053-1019 |
LEVER,FR BRAKE CAM Price: $34.61 |
| 13 |
41048-1076 |
SHOE-BRAKE This part replaces 42019-010. Price: $38.07 |
| 14 |
42036-1009 |
SLEEVE,REAR BRAKE Price: $50.06 |
| 15 |
42036-1035 |
SLEEVE,REAR PANEL,R.H Price: $79.01 |
| 16 |
670B2011 |
O RING,11MM Price: $1.28 |
| 17 |
92027-1040 |
COLLAR,L=11.5 Price: $21.84 |
| 18 |
92046-1009 |
BEARING-NEEDLE,HK1216LL Price: $18.45 |
| 19 |
670B2012 |
O RING,12MM Price: $3.23 |
| 20 |
92093-1004 |
OIL SEAL Price: $8.89 |
| 21 |
41068-1043 |
AXLE,REAR Price: $54.56 |
| 22 |
92015-1015 |
NUT,16M/M Price: $24.00 |
| 23 |
92027-1206 |
COLLAR,REAR AXLE Price: $53.57 |
| 24 |
92001-1040 |
BOLT,HEX HEAD,8X32 Price: $11.65 |
| 25 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 26 |
92001-1577 |
BOLT,FLANGED,8X35 Price: $5.00 |
| 27 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 28 |
42041-1044 |
REAR SPROCKET,52T Price: $218.62 |
| 29 |
92057-1051 |
CHAIN,520X118TR Price: $141.43 |
