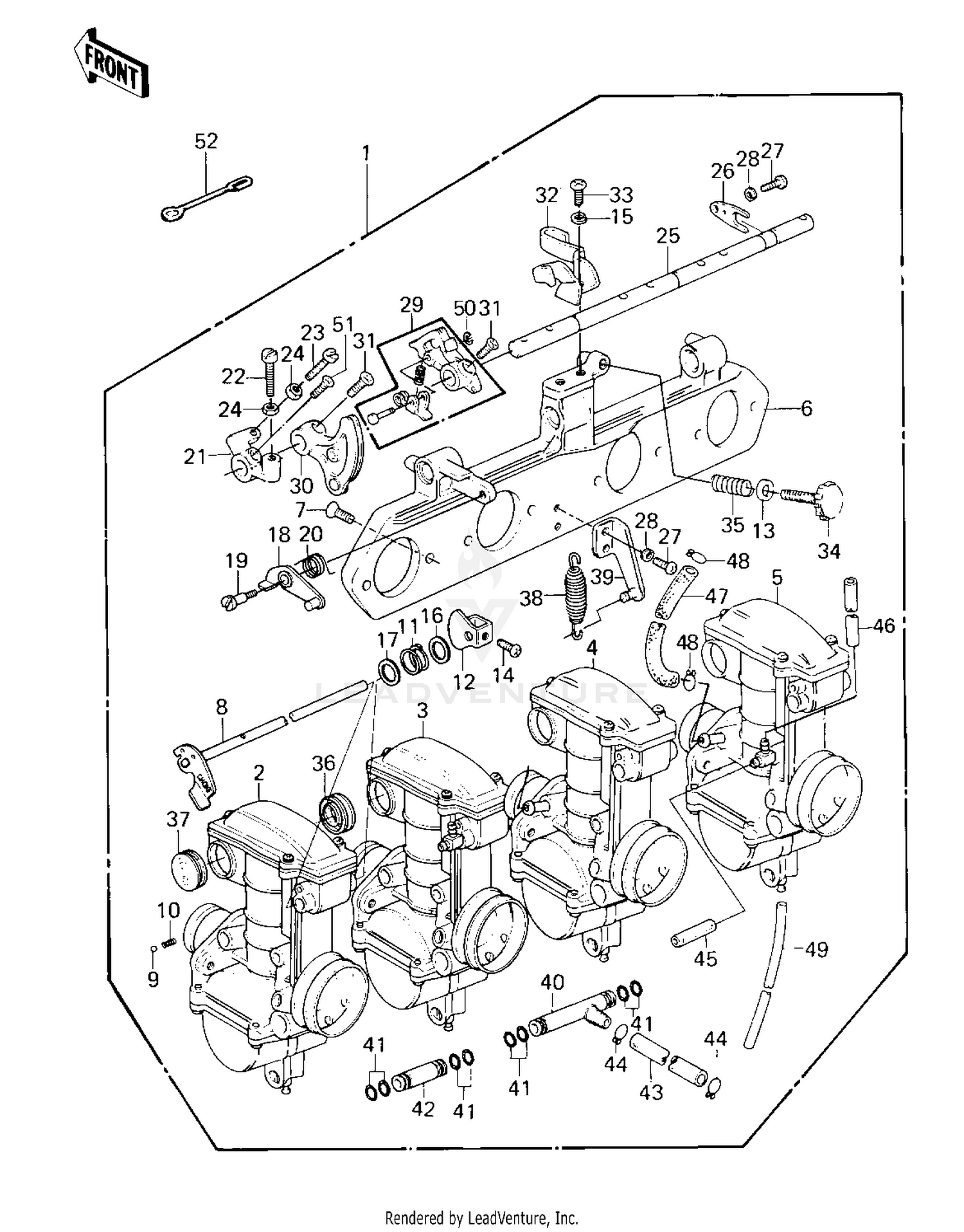

| Ref | Part Number | Description |
|---|
| 1 |
16001-1210 |
CARBURETOR ASSY, Price: $1,091.07 |
| 6 |
11034-1588 |
BRACKET,CARBURETOR Price: $112.19 |
| 7 |
221AA0616 |
SCREW-CSK-CROS,6X16 This part replaces 221B0616. Price: $0.59 |
| 8 |
16041-1021 |
SHAFT,CHOKE LEVER Price: $32.02 |
| 9 |
600A0500 |
BALL-STEEL,5/32 Price: $0.81 |
| 10 |
92081-1195 |
SPRING, CHOKE LEVER Price: $2.73 |
| 11 |
92081-1191 |
SPRING,CHOKE LEVER Price: $8.96 |
| 12 |
49060-1002 |
CAM,CHOKE Price: $12.77 |
| 13 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 14 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 15 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 16 |
92022-1168 |
WASHER,CHOKE LEVER Price: $5.27 |
| 17 |
92022-1169 |
WASHER,CHOKE LEVER Price: $5.25 |
| 18 |
13168-1053 |
LEVER ASSY,TIMING Price: $23.80 |
| 19 |
92009-1081 |
SCREW,TIMING LEVER Price: $12.50 |
| 20 |
92081-1192 |
SPRING,TIMING LEVER Price: $5.11 |
| 21 |
11034-1590 |
BRACKET,THROTTLE STOP Price: $15.42 |
| 22 |
92009-1082 |
SCREW,TIMING LEVER Price: $5.25 |
| 23 |
92009-1083 |
SCREW,THROTTLE STOP Price: $4.57 |
| 24 |
312AA0500 |
NUT-HEX,5MM This part replaces 312B0500. Price: $0.47 |
| 25 |
16041-1012 |
SHAFT,THROTTLE Price: $121.22 |
| 26 |
11034-1591 |
PLATE,THROTTLE SHAFT Price: $8.12 |
| 27 |
220AA0514 |
SCREW-PAN-CROS,5X14 This part replaces 220B0514. Price: $4.43 |
| 28 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 29 |
13168-1054 |
LEVER ASSY,THROTTLE Price: $41.15 |
| 30 |
13168-1055 |
LEVER,ASSY,THROTTLE Price: $32.93 |
| 31 |
221B0514A |
SCREW,CNTSNK HD,5X14 Price: $5.22 |
| 32 |
11034-1592 |
BRACKET,THROTTLE CABL Price: $16.64 |
| 33 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 34 |
16021-1017 |
SCREW,THROTTLE STOP Price: $18.09 |
| 35 |
92081-1193 |
SPRING,ADJUST SCREW Price: $8.84 |
| 36 |
92093-1033 |
DUST SEAL,THROTTLE Price: $19.67 |
| 37 |
92093-1034 |
CAP,THROTTLE SHAFT Price: $11.86 |
| 38 |
92081-1381 |
SPRING,THROTTLE RETRN Price: $14.78 |
| 39 |
11034-1593 |
BRACKET,THROTTLE RETN Price: $10.99 |
| 40 |
92005-1020 |
TJOINT,FUEL Price: $36.06 |
| 41 |
670B1507 |
O RING,7MM Price: $1.28 |
| 42 |
92005-1021 |
JOINT,FUEL Price: $37.66 |
| 44 |
92037-1158 |
CLAMP,FUEL HOSE Price: $8.84 |
| 45 |
92059-1099 |
HOSE,AIR VENT,4.5X30 Price: $5.51 |
| 46 |
92059-1100 |
HOSE,AIR VENT,4.5X300 Price: $24.74 |
| 47 |
92059-1101 |
HOSE,NEGATIVE PRESSUR Price: $37.74 |
| 48 |
92037-1159 |
CLAMP,NEGATIVE PRESSU Price: $3.60 |
| 49 |
92059-1102 |
HOSE,OVERFLOW,3.5X550 Price: $28.95 |
| 50 |
482J3000 |
CIRCLIP,3M/M Price: $3.22 |
| 51 |
92009-1080 |
SCREW.CNTSNK HD,4X12 Price: $5.71 |
