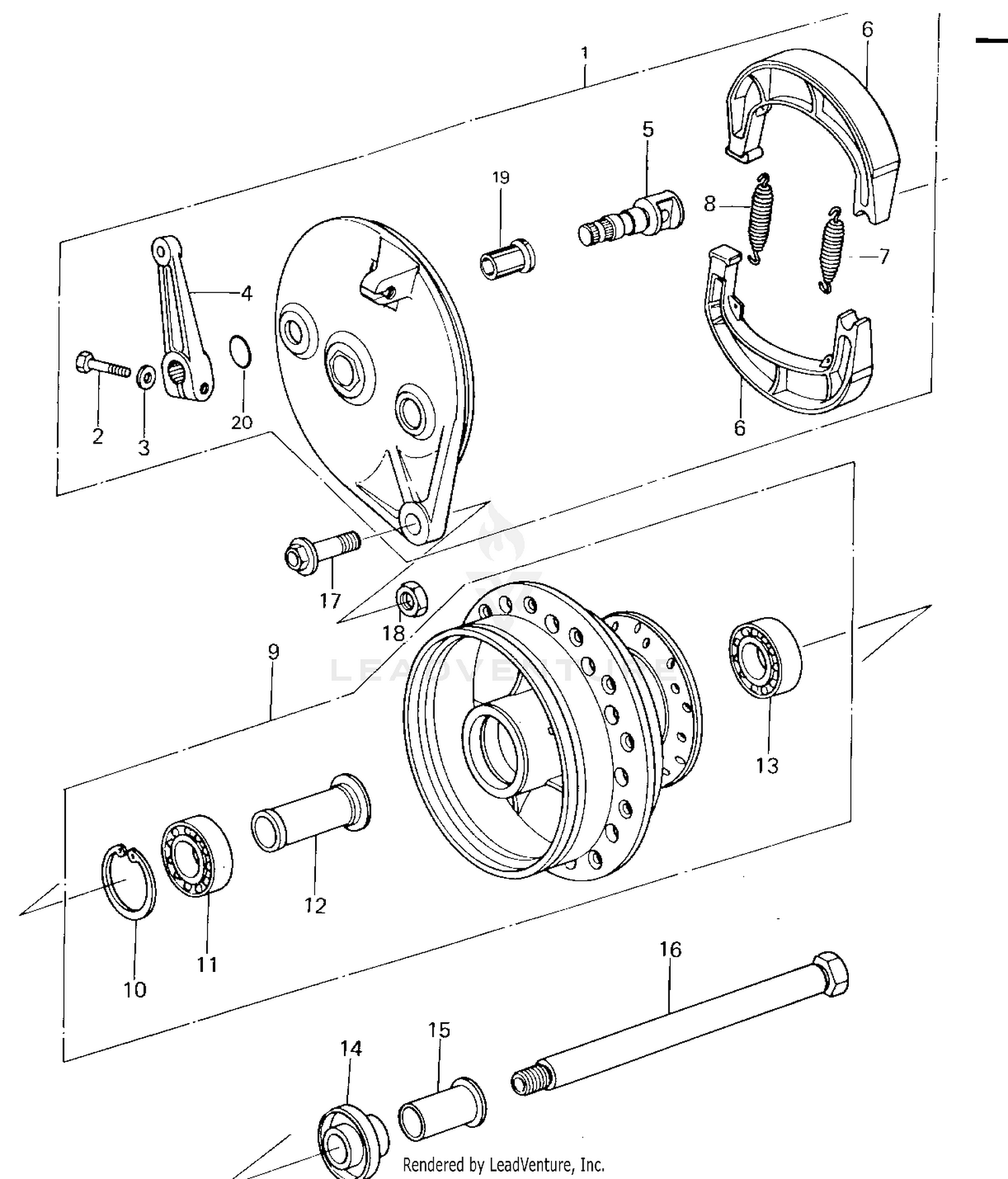

| Ref | Part Number | Description |
|---|
| 1 |
41035-1011-21 |
PANEL-ASY,FR BRK Price: $323.73 |
| 2 |
112BA0622 |
BOLT-UPSET This part replaces 112G0622. Price: $3.74 |
| 3 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 4 |
41053-1007 |
LEVER,BRAKE CAM,FRONT Price: $58.19 |
| 5 |
41050-1006 |
CAM SHAFT,FRONT BRAKE Price: $27.68 |
| 6 |
41048-1091 |
SHOE-BRAKE This part replaces 41048-015. Price: $32.19 |
| 7 |
92081-1766 |
SPRING,BRAKE SHOE Price: $8.03 |
| 8 |
92081-1550 |
SPRING,BRAKE SHOE Price: $9.49 |
| 9 |
41034-1009-21 |
DRUM-ASSY,FR BRK,BLK Price: $405.37 |
| 10 |
481J3700 |
CIRCLIP-TYPE-C,37MM Price: $3.04 |
| 11 |
601B6301UG |
BEARING-BALL,#6301UG This part replaces 601B6301U. Price: $17.30 |
| 12 |
92027-1073 |
COLLAR,FRONT BEARING Price: $44.33 |
| 13 |
601B6201U |
BEARING,BALL Price: $19.40 |
| 14 |
92027-1071 |
COLLAR,FRONT AXLE Price: $12.74 |
| 15 |
92027-1070 |
COLLAR,FRONT AXLE Price: $50.09 |
| 16 |
41068-1008 |
AXLE,FRONT Price: $49.51 |
| 18 |
92210-1184 |
NUT,LOCK,10MM This part replaces 92019-021. Price: $6.11 |
| 19 |
92028-1020 |
BUSHING,BRAKE CAMSHFT Price: $17.59 |
