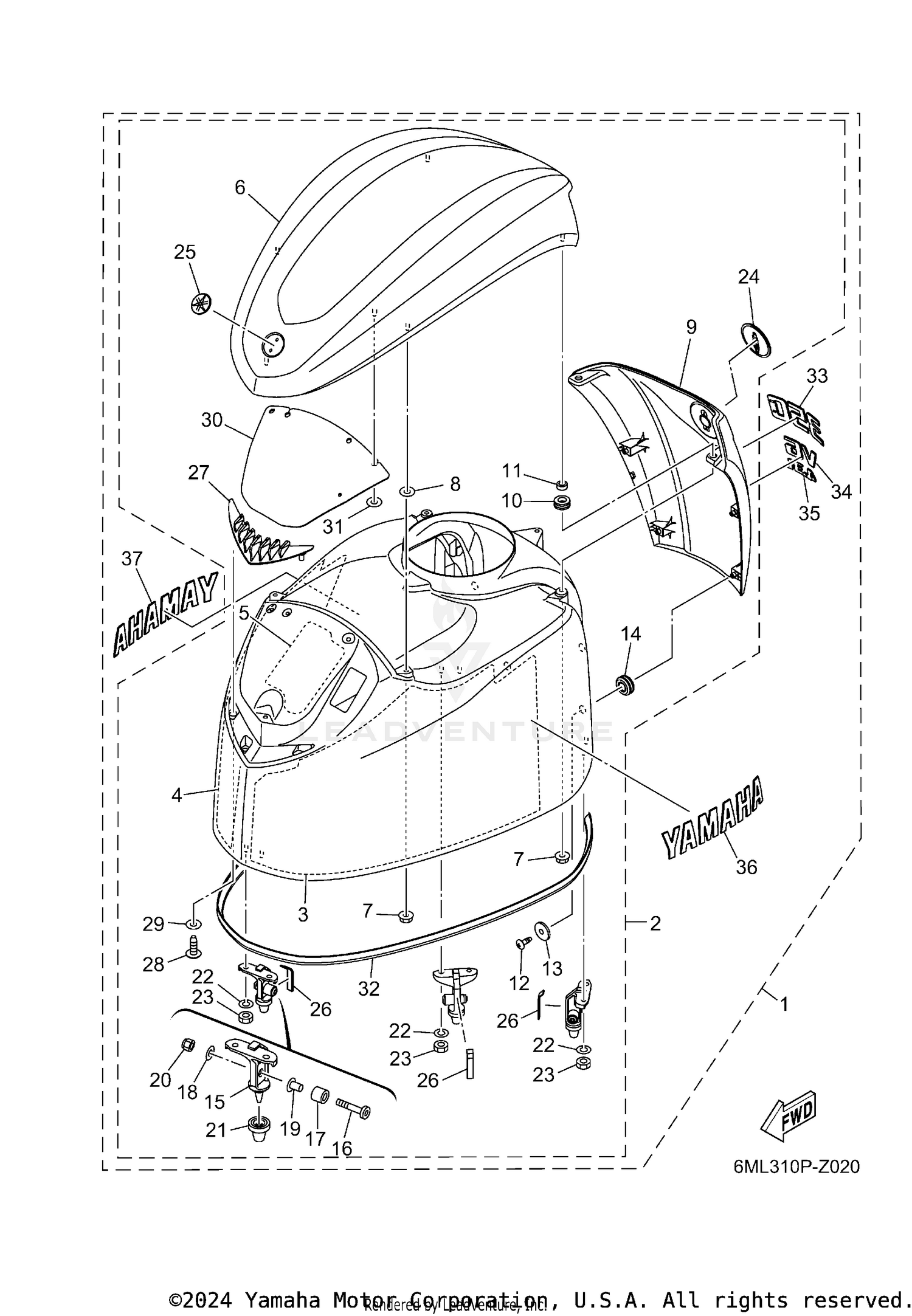

| Ref | Part Number | Description |
|---|
| 1 |
6ML-42610-20-CJ |
TOP COWLING ASSY Price: $4,366.75 |
| 3 |
6ML-426A1-00-00 |
SHEET,SOUND 1 Price: $155.25 |
| 4 |
6ML-426A2-00-00 |
SHEET,SOUND 2 Price: $155.25 |
| 5 |
6ML-426A3-00-00 |
SHEET,SOUND 3 Price: $38.80 |
| 7 |
90179-06M28-00 |
NUT Price: $4.75 |
| 8 |
6CB-42545-00-00 |
WASHER, PLAIN Price: $4.50 |
| 9 |
6KA-42625-00-CJ |
PANEL, REAR Price: $464.85 |
| 10 |
90480-13004-00 |
GROMMET Price: $8.49 |
| 11 |
90387-07054-00 |
COLLAR Price: $5.20 |
| 12 |
97780-50016-00 |
SCREW, TAPPING Price: $2.45 |
| 13 |
90201-053R1-00 |
WASHER, PLATE Price: $1.15 |
| 14 |
90480-16009-00 |
GROMMET Price: $6.75 |
| 16 |
90111-08078-00 |
BOLT,HEX. SOCKET BUTTON Price: $7.05 |
| 17 |
90387-10094-00 |
COLLAR Price: $5.65 |
| 18 |
92990-08600-00 |
WASHER, PLATE Price: $2.70 |
| 19 |
90387-08M45-00 |
COLLAR Price: $4.72 |
| 20 |
95780-08300-00 |
NUT, FLANGE Price: $11.80 |
| 21 |
6AW-42663-01-00 |
DAMPER 2 Price: $2.30 |
| 22 |
92995-06100-00 |
WASHER, SPRING This part replaces 92990-06100-00. Price: $3.45 |
| 23 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 24 |
6KN-42697-00-00 |
TUNING FORK MARK Price: $52.10 |
| 26 |
6CB-42134-01-00 |
COVER Price: $0.95 |
| 28 |
97780-50016-00 |
SCREW, TAPPING Price: $2.45 |
| 29 |
6CB-42545-00-00 |
WASHER, PLAIN Price: $4.50 |
| 31 |
90183-05M06-00 |
NUT, SPRING Price: $0.50 |
| 32 |
6CB-42628-00-00 |
SEAL Price: $182.40 |
| 34 |
6KA-4267A-00-00 |
GRAPHIC, REAR 2 Price: $50.50 |
| 36 |
6KA-2153A-00-00 |
EMBLEM, YAMAHA Price: $153.00 |
