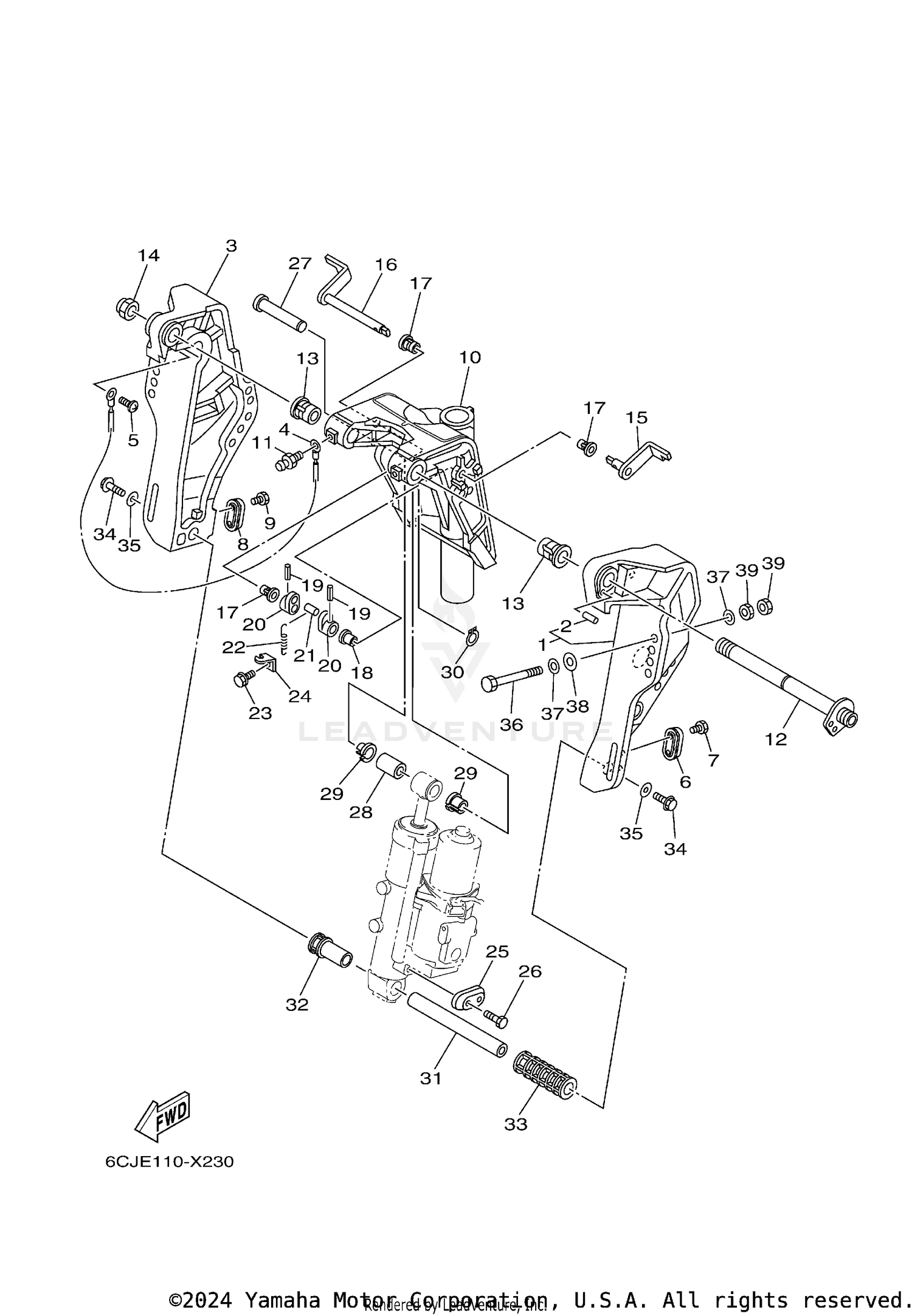

| Ref | Part Number | Description |
|---|
| 2 |
93606-19002-00 |
PIN, DOWEL Price: $4.90 |
| 4 |
6E5-82148-00-00 |
WIRE, LEAD 4 Price: $22.90 |
| 5 |
97885-06008-00 |
SCREW, PAN HEAD Price: $1.15 |
| 6 |
65W-45251-00-00 |
ANODE Price: $12.75 |
| 7 |
90101-06020-00 |
BOLT Price: $3.95 |
| 8 |
65W-45251-00-00 |
ANODE Price: $12.75 |
| 9 |
90101-06020-00 |
BOLT Price: $3.95 |
| 11 |
93700-06002-00 |
NIPPLE, GREASE Price: $8.55 |
| 12 |
6C5-43131-00-00 |
BOLT, CLAMP BRACKET Price: $82.15 |
| 13 |
90386-22MA4-00 |
BUSH Price: $9.10 |
| 14 |
90185-22007-00 |
NUT, SELF-LOCKING This part replaces 90185-22M11-00. Price: $23.95 |
| 15 |
6C5-43181-00-00 |
LEVER, TILT STOP 1 Price: $64.30 |
| 16 |
6C5-43185-00-00 |
LEVER, TILT STOP 2 Price: $77.20 |
| 17 |
90386-10M16-00 |
BUSH Price: $5.55 |
| 18 |
90386-10025-00 |
BUSH Price: $12.55 |
| 19 |
91690-30020-00 |
PIN, SPRING Price: $3.55 |
| 20 |
6G5-43148-00-00 |
COLLAR, DISTANCE Price: $9.45 |
| 21 |
90249-06M19-00 |
PIN Price: $9.10 |
| 22 |
90506-14M24-00 |
SPRING, TENSION Price: $9.10 |
| 23 |
97E95-06512-00 |
BOLT, HEXAGON W/W Price: $2.05 |
| 24 |
6G5-43144-00-00 |
HOOK, SPRING Price: $7.15 |
| 25 |
65W-45251-00-00 |
ANODE Price: $12.75 |
| 26 |
90101-06020-00 |
BOLT Price: $3.95 |
| 27 |
6E5-43126-02-00 |
PIN, UPPER SHOCK MOUNT Price: $54.05 |
| 28 |
90386-18M92-00 |
BUSH Price: $7.15 |
| 29 |
90386-18M35-00 |
BUSH Price: $15.65 |
| 30 |
93410-18M05-00 |
CIRCLIP Price: $5.65 |
| 31 |
6CJ-43818-00-00 |
PIN, LOWER SHOCK MOUNT Price: $126.75 |
| 32 |
6C5-43833-00-00 |
PIPE Price: $7.40 |
| 33 |
6C5-43834-00-00 |
PIPE Price: $11.10 |
| 34 |
90119-10054-00 |
BOLT, WITH WASHER Price: $12.55 |
| 35 |
90201-10060-00 |
WASHER, PLATE Price: $14.45 |
| 36 |
90101-12063-00 |
BOLT (L:105MM) Price: $33.25 |
| 37 |
90201-12062-00 |
WASHER, PLATE Price: $2.30 |
| 38 |
90201-12426-00 |
WASHER, PLATE Price: $2.25 |
