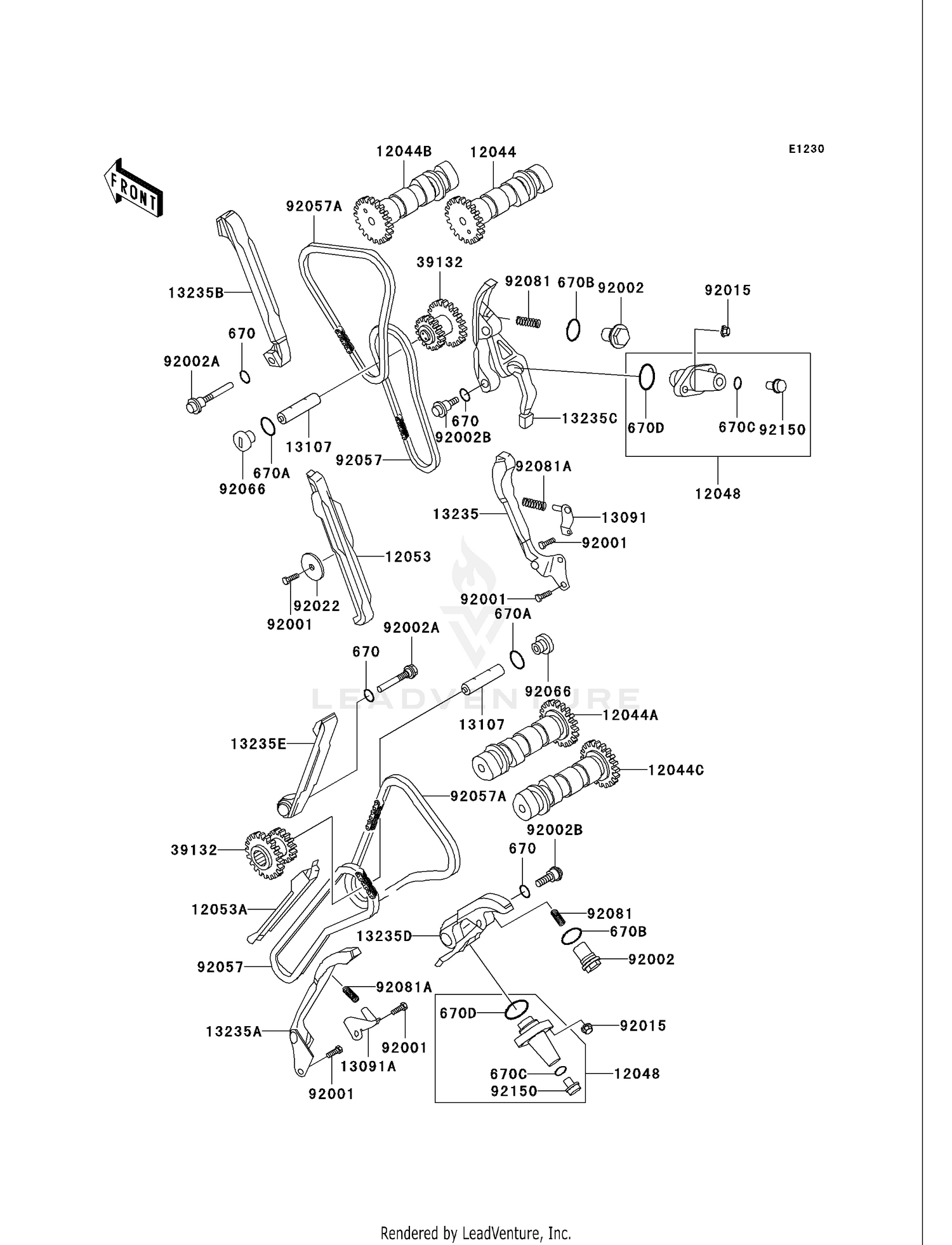

| Ref | Part Number | Description |
|---|
| 670 |
670B2011 |
O RING,11MM Price: $1.28 |
| 670A |
670B2016 |
O RING,16MM Price: $1.36 |
| 670B |
670B2018 |
O RING,18MM Price: $1.42 |
| 670C |
670D2010 |
O RING,10MM Price: $1.94 |
| 670D |
670D2021 |
O RING,21MM Price: $6.85 |
| 12044 |
12044-1341 |
CAMSHAFT-VALVE,INTAKE Price: $206.89 |
| 12044A |
12044-1342 |
CAMSHAFT-VALVE,INTAKE Price: $206.89 |
| 12044B |
12044-1343 |
CAMSHAFT-VALVE,EXHAUS Price: $206.89 |
| 12044C |
12044-1344 |
CAMSHAFT-VALVE,EXHAUS Price: $206.89 |
| 12048 |
12048-1072 |
TENSIONER-ASSY Price: $128.03 |
| 12053 |
12053-1161 |
GUIDE-CHAIN,FR,LWR Price: $67.41 |
| 12053A |
12053-1162 |
GUIDE-CHAIN,RR,LWR Price: $67.41 |
| 13091 |
13091-1367 |
HOLDER,CHAIN GUIDE,FR Price: $17.40 |
| 13091A |
13091-1368 |
HOLDER,CHAIN GUIDE,RR Price: $17.40 |
| 13107 |
13107-1145 |
SHAFT,IDLER Price: $37.01 |
| 13235 |
13235-1051 |
GUIDE-COMP,FR,LWR Price: $121.16 |
| 13235A |
13235-1052 |
GUIDE-COMP,RR,LWR Price: $121.16 |
| 13235B |
13235-1053 |
GUIDE-COMP,FR,UPP Price: $121.16 |
| 13235C |
13235-1054 |
GUIDE-COMP,FR,UPP Price: $292.91 |
| 13235D |
13235-1055 |
GUIDE-COMP,RR,UPP Price: $292.91 |
| 13235E |
13235-1056 |
GUIDE-COMP,RR,UPP Price: $121.16 |
| 39132 |
39132-1053 |
SPROCKET-ASSY-IDLER Price: $146.81 |
| 92001 |
92001-1457 |
BOLT,6X16 Price: $5.00 |
| 92002 |
92002-1621 |
BOLT,TENSIONER Price: $26.05 |
| 92002A |
92002-1731 |
BOLT Price: $31.88 |
| 92002B |
92002-1732 |
BOLT Price: $17.56 |
| 92015 |
92015-1385 |
NUT,CAP,6MM Price: $4.31 |
| 92022 |
92022-1282 |
WASHER,7X28X1.6 This part replaces 92022-227. Price: $4.69 |
| 92057 |
92057-1192 |
CHAIN LWR 75RH2015X82 Price: $89.02 |
| 92057A |
92057-1193 |
CHAIN,UPP,79RH2020X82 Price: $98.80 |
| 92066 |
92066-1409 |
PLUG,IDLER Price: $32.10 |
| 92081 |
92081-1380 |
SPRING,TENSIONER Price: $8.14 |
| 92081A |
92081-1837 |
SPRING Price: $5.54 |
