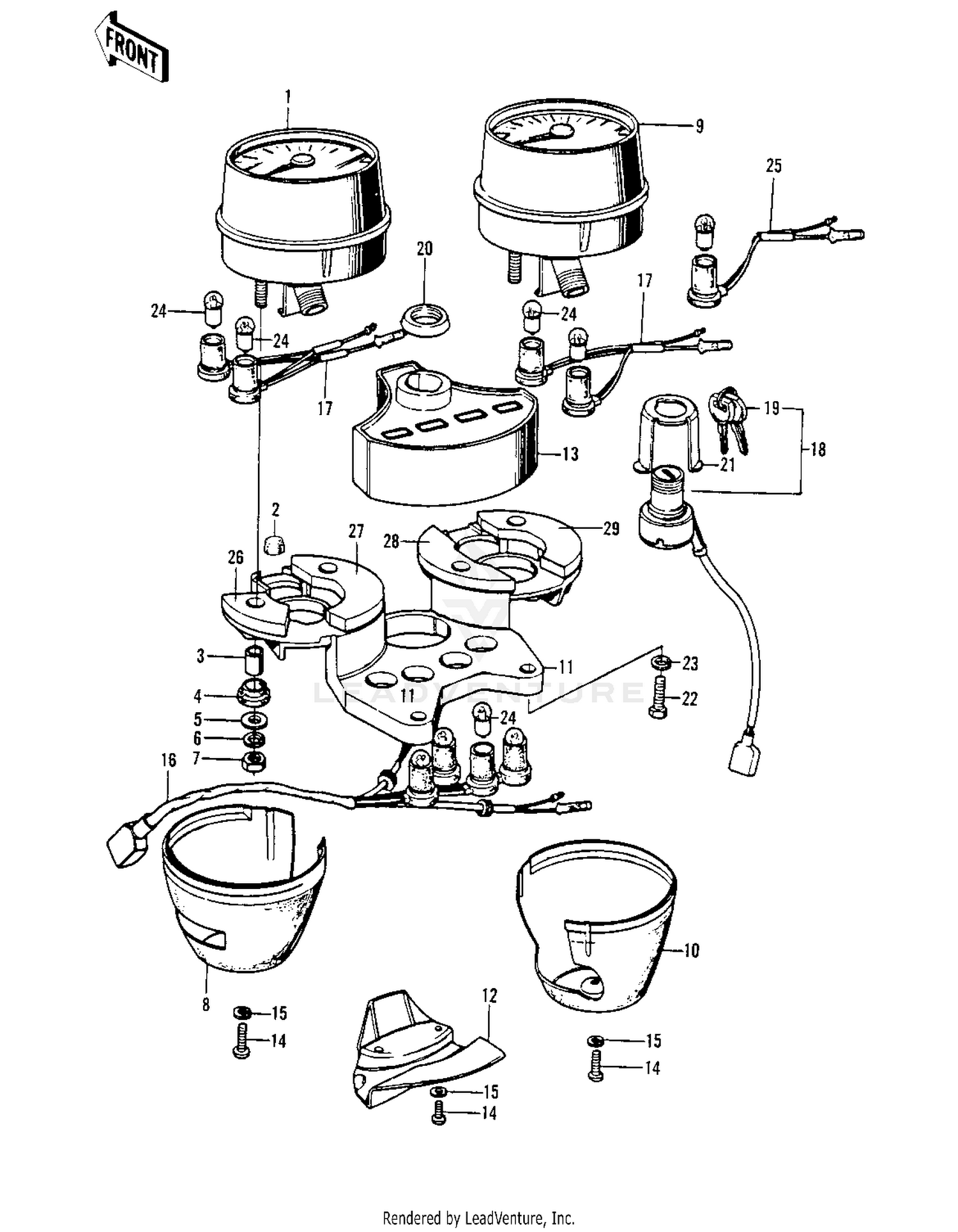

| Ref | Part Number | Description |
|---|
| 2 |
25019-029 |
SHOCK DAMPER,SOCKET Price: $0.27 |
| 3 |
92027-211 |
COLLAR,METER Price: $14.88 |
| 4 |
92161-2323 |
DAMPER This part replaces 92075-172. Price: $14.92 |
| 5 |
92022-241 |
WASHER,PLAIN,5MM Price: $4.58 |
| 6 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 7 |
312AA0500 |
NUT-HEX,5MM This part replaces 312B0500A. Price: $0.47 |
| 8 |
25012-010 |
COVER,SPEEDOMETER Price: $140.34 |
| 10 |
25012-011 |
COVER,TACHOMETER Price: $143.99 |
| 11 |
25008-044 |
BRACKET,SPEEDO Price: $246.59 |
| 12 |
25024-001 |
COVER,WIRING HARNESS Price: $84.61 |
| 14 |
220AA0308 |
SCREW-PAN-CROS,3X8 This part replaces 220B0308A. Price: $0.59 |
| 15 |
461DA0300 |
WASHER-SPRING This part replaces 461F0300. Price: $0.47 |
| 17 |
25011-027 |
SOCKET ASSY,METER LAM Price: $56.18 |
| 18 |
27005-042 |
SWITCH ASSY,IGNITION Price: $201.27 |
| 19 |
27008-069-51 |
KEY SET,#751 This part replaces 27008-046-51. Price: $49.14 |
| 19 |
27008-069-52 |
KEY SET,#752 This part replaces 27008-046-52. Price: $43.05 |
| 19 |
27008-069-53 |
KEY SET,#753 This part replaces 27008-046-53. Price: $49.11 |
| 19 |
27008-069-54 |
KEY SET,#754 This part replaces 27008-046-54. Price: $49.14 |
| 19 |
27008-069-55 |
KEY SET,#755 This part replaces 27008-046-55. Price: $25.71 |
| 19 |
27008-1013 |
KEY,BLANK Price: $23.31 |
| 20 |
27007-004 |
NUT,IGNITION SW LOCK Price: $15.94 |
| 21 |
27019-003 |
HOLDER IGNITION SW Price: $23.16 |
| 22 |
92002-1241 |
BOLT, 8X32 This part replaces 110B0832. Price: $2.59 |
| 23 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 24 |
92069-018 |
BULB 12V 3W Price: $4.87 |
| 26 |
25019-025 |
SHOCK DAMPER A,SPEED Price: $4.48 |
| 27 |
25019-026 |
SHOCK DAMPER B,SPEED Price: $4.82 |
| 28 |
25019-027 |
SHOCK DAMPER A,TACHO Price: $3.56 |
