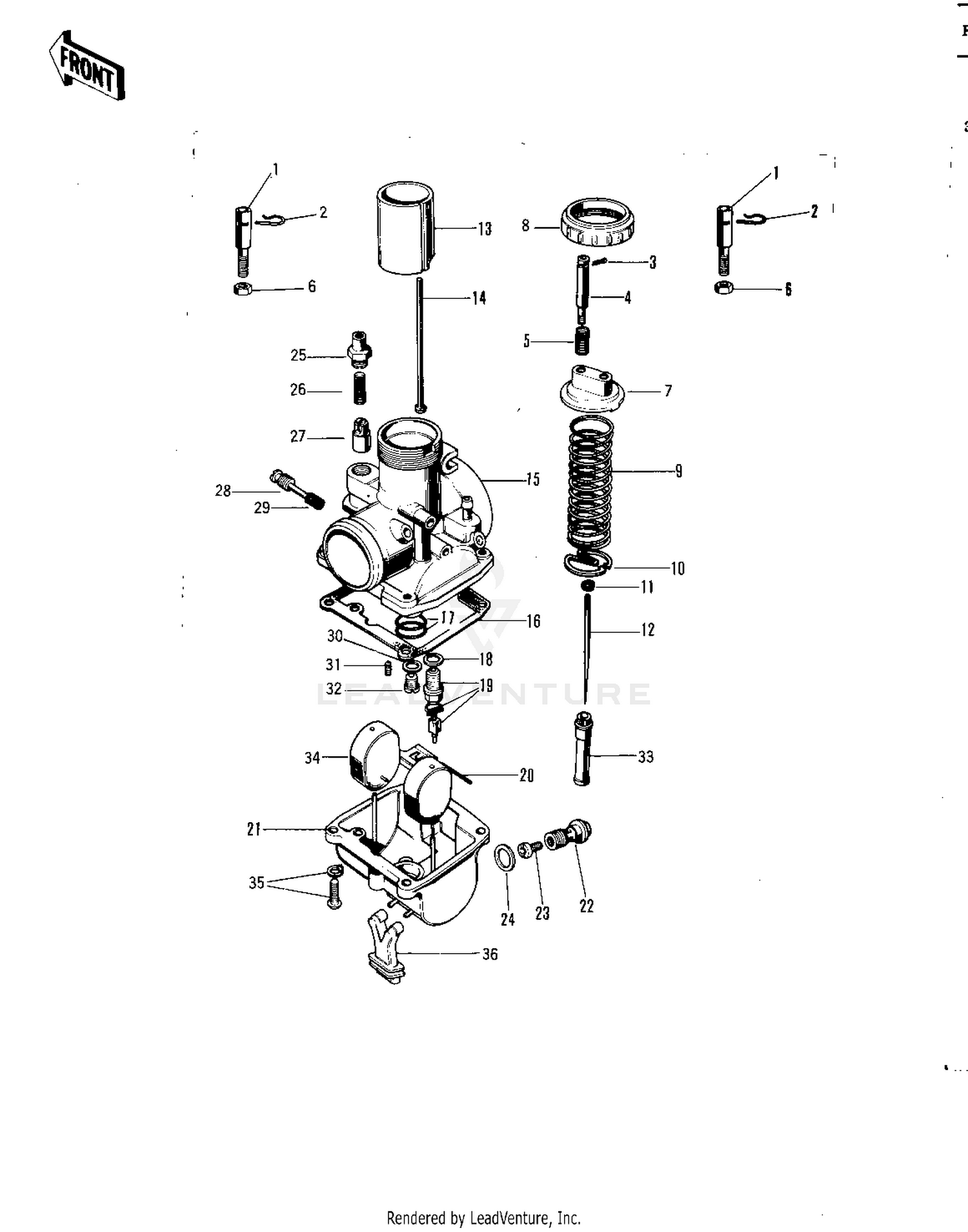

CARBURETOR ('71 F81M)
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 92120-001 | ADJUSTER-CABLE Price: $5.70 |
| 2 | 92036-018 | RING-SNAP Price: $3.89 |
| 3 | 550D1610 | PIN COTTER 1.6X10 Price: $2.93 |
| 4 | 16021-011 | SCREW-THROTTLE STOP Price: $6.67 |
| 5 | 16022-005 | SPRING THR STOP SCREW Price: $8.68 |
| 6 | 16003-004 | NUT CABLE ADJUST LOCK Price: $7.34 |
| 7 | 16005-022 | TOP-MIXING CHAMBER Price: $20.30 |
| 8 | 16004-015 | CAP-MIXING CHAMBER Price: $10.97 |
| 9 | 16006-016 | SPRING-THROTTLE VALVE Price: $24.74 |
| 10 | 16007-014 | SPRING SEAT-THRTL VLV Price: $4.44 |
| 11 | 16008-010 | CIRCLIP Price: $9.21 |
| 12 | 16009-044 | JET NEEDLE 5EH7 Price: $8.14 |
| 13 | 16025-033 | VALVE-THROTTLE Price: $44.54 |
| 14 | 16024-011 | ROD-THROTTLE VLV STOP Price: $3.90 |
| 16 | 16019-015 | GASKET-FLOAT CHAMBER Price: $14.45 |
| 18 | 16029-004 | GASKET,FLOAT VALVE SEAT Price: $3.89 |
| 19 | 16030-013 | FLOAT VALVE ASSY Price: $26.17 |
| 20 | 16032-005 | FLOAT PIN Price: $2.93 |
| 22 | 92001-097 | BOLT-BANJO Price: $22.55 |
| 24 | 16034-005 | GASKET-BANJO BOLT Price: $7.20 |
| 25 | 16012-004 | CAP STARTER PLUNGER Price: $11.80 |
| 26 | 16013-003 | SPRING-PLUNGER Price: $6.16 |
| 27 | 16016-002 | PLUNGER-ENRICHNER Price: $31.85 |
| 28 | 16014-006 | SCREW Price: $17.15 |
| 29 | 16022-007 | SPRING,PILOT AIR SCREW Price: $8.13 |
| 30 | 16034-001 | WASHER MAIN JET Price: $4.31 |
| 31 | 92064-024 | JET-PILOT NO 40 Price: $22.86 |
| 32 | 92063-102 | MAIN JET NO 2.4R Price: $6.36 |
| 33 | 16017-053 | NEEDLE JET Price: $15.61 |
| 34 | 16031-020 | FLOAT Price: $22.77 |
| 35 | 223AA0414 | SCREW-PAN-WS-CROS,4X14 This part replaces 223B0414. Price: $1.52 |
