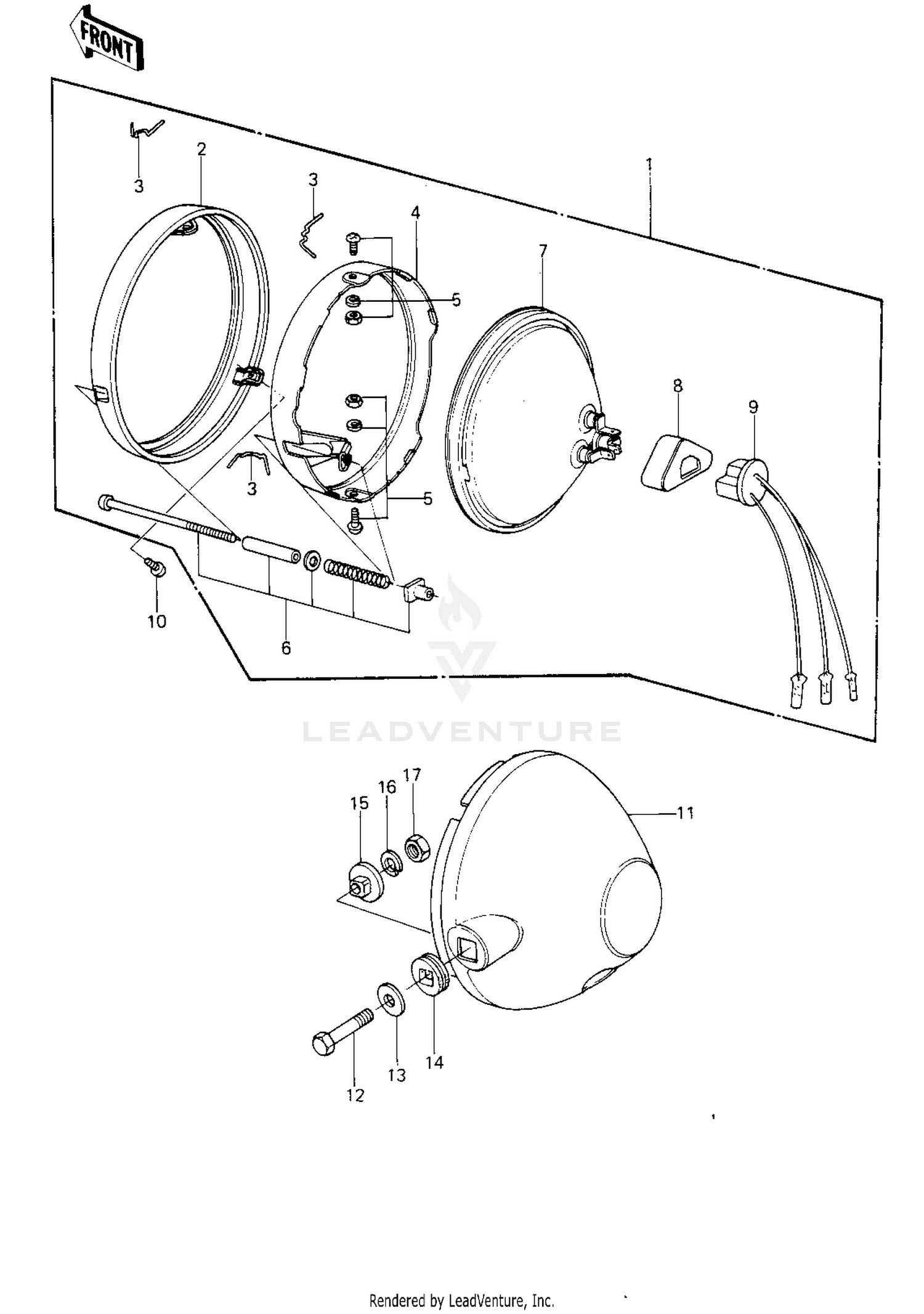

| Ref | Part Number | Description |
|---|
| 1 |
23003-026 |
LIGHT UNIT,HEAD Price: $177.67 |
| 2 |
23006-042 |
RIM,HEAD LAMP Price: $62.05 |
| 3 |
23009-015 |
CLAMP,HEAD LAMP LENS Price: $5.44 |
| 4 |
23072-002 |
RETAINER,SEALED BEAM Price: $39.06 |
| 5 |
23013-007 |
SCREW SET,LENS UNIT Price: $6.35 |
| 6 |
23013-5001 |
SCREW ASSY,FOCUS AJST Price: $15.85 |
| 8 |
23081-001 |
COVER,HD LAMP SOCKET Price: $8.08 |
| 9 |
23008-044 |
SOCKET ASSY,HD LIGHT Price: $22.32 |
| 10 |
220AA0512 |
SCREW-PAN-CROS,5X12 This part replaces 23019-025. Price: $0.47 |
| 12 |
92007-041 |
BOLT,HEX HEAD,10X30 Price: $12.16 |
| 13 |
92200-1313 |
WASHER This part replaces 411D1000. Price: $4.78 |
| 14 |
23066-011 |
DAMPER RUBBER Price: $4.95 |
| 15 |
23052-005 |
COLLAR Price: $15.16 |
| 16 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
