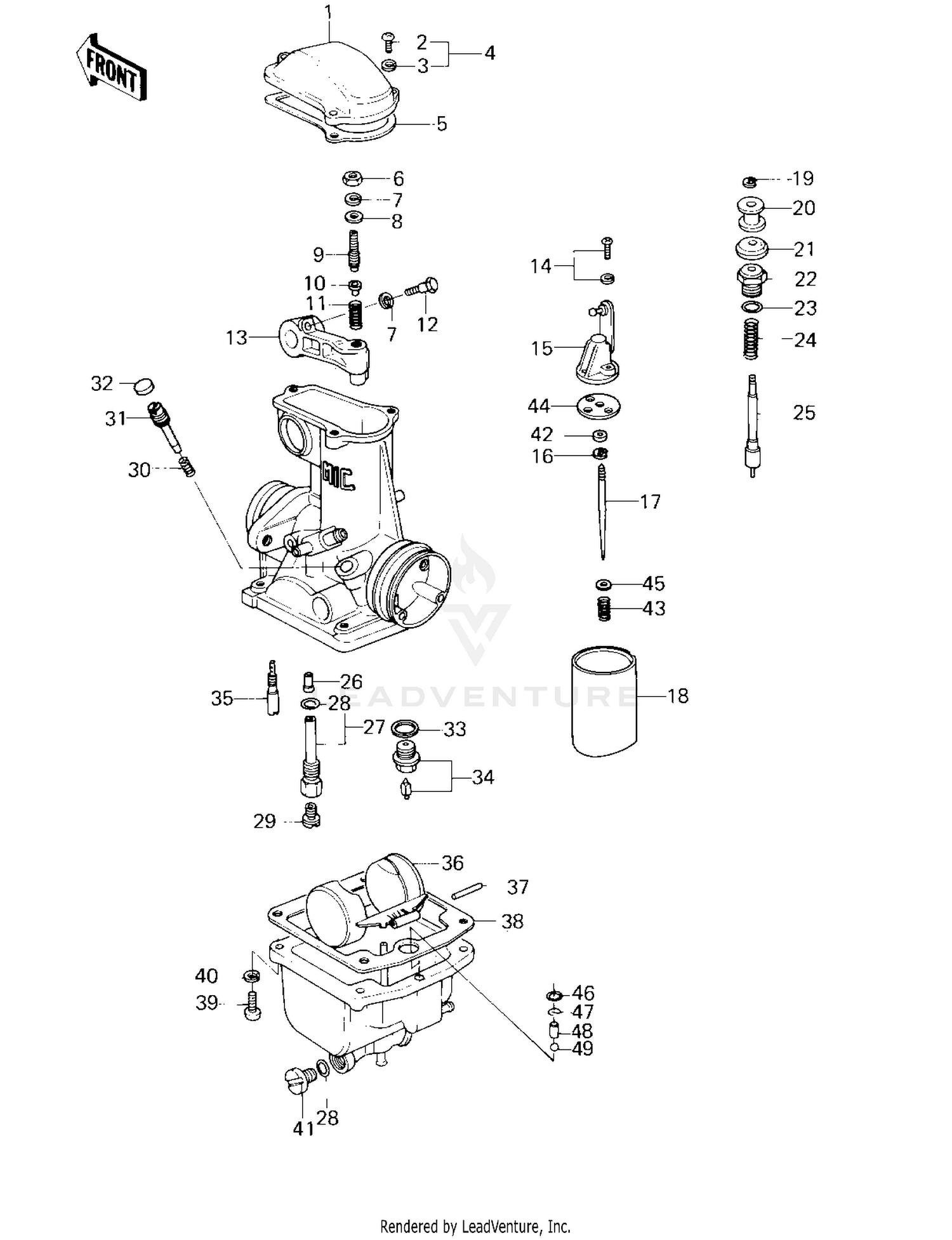

| Ref | Part Number | Description |
|---|
| 1 |
16005-027 |
TOP,MIXING CHAMBER Price: $24.02 |
| 2 |
220AA0414 |
SCREW-PAN-CROS This part replaces 220B0414. Price: $4.60 |
| 3 |
461F0400 |
WASHER SPRING 4MM Price: $0.47 |
| 4 |
223AA0414 |
SCREW-PAN-WS-CROS,4X14 This part replaces 223B0414. Price: $1.52 |
| 5 |
16019-031 |
GASKET,CHAMBER TOP Price: $43.53 |
| 6 |
16003-013 |
NUT,5MM Price: $9.40 |
| 6 |
312AA0500 |
NUT-HEX,5MM This part replaces 312B0500. Price: $0.47 |
| 7 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 8 |
16039-016 |
WASHER,PLAIN Price: $8.03 |
| 9 |
16046-012 |
SCREW,SLOTTED Price: $26.55 |
| 10 |
16057-002 |
SEAT,SPRING Price: $10.53 |
| 11 |
16040-026 |
SPRING Price: $6.62 |
| 12 |
16067-006 |
BOLT,HEX HEAD,5X14 Price: $18.26 |
| 13 |
39075-1001 |
LEVER,THROTTLE Price: $33.42 |
| 14 |
16033-031 |
SCREW,PAN HEAD,3X14 Price: $8.38 |
| 15 |
11034-1238 |
BRACKET,THROTTLE VLV Price: $36.75 |
| 16 |
16008-010 |
CIRCLIP Price: $9.21 |
| 17 |
16009-1046 |
JET NEEDLE,5CN29 Price: $27.13 |
| 18 |
16025-1026 |
VALVE,THROTTLE,CA2.0 Price: $73.73 |
| 19 |
16076-003 |
CIRCLIP Price: $8.92 |
| 20 |
16073-014 |
COLLAR Price: $10.47 |
| 21 |
16039-015 |
CAP,RUBBER,STARTER PLUNGE Price: $6.88 |
| 22 |
16012-015 |
CAP,STARTER PLUNGER Price: $17.25 |
| 23 |
670B1509 |
O RING,9MM Price: $3.65 |
| 24 |
16013-008 |
SPRING,STARTER PLUNGER Price: $6.46 |
| 25 |
16016-021 |
PLUNGER,STARTER Price: $42.89 |
| 26 |
16017-1035 |
NEEDLE JET,AO-4 Price: $35.48 |
| 27 |
49122-1001 |
PIPE,BLEED Price: $70.06 |
| 29 |
92063-1028 |
MAIN JET,#A102.5 Price: $17.74 |
| 30 |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
| 31 |
16014-1020 |
SCREW,PILOT ADJUSTING Price: $18.22 |
| 32 |
92066-1051 |
PLUG,PILOT AIR SCREW,6.9X2 Price: $5.05 |
| 33 |
16029-004 |
GASKET,FLOAT VALVE SEAT Price: $3.89 |
| 34 |
16030-027 |
FLOAT VALVE ASSY Price: $129.50 |
| 35 |
92064-1017 |
PILOT JET,#A15 Price: $29.67 |
| 36 |
16031-031 |
FLOAT Price: $172.74 |
| 37 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 38 |
11009-1562 |
GASKET,FLOAT CHAMBER Price: $24.64 |
| 39 |
220AA0416 |
SCREW-PAN-CROS This part replaces 220B0416. Price: $1.78 |
| 40 |
461F0400 |
WASHER SPRING 4MM Price: $0.47 |
| 41 |
16049-007 |
SCREW,GUIDE Price: $18.41 |
| 42 |
92027-1103 |
RING,JET NEEDLE Price: $7.34 |
| 43 |
92081-1072 |
SPRING,JET NEEDLE Price: $5.54 |
| 44 |
13169-1107 |
PLATE,JET NEEDLE Price: $7.05 |
| 45 |
92022-1024 |
WASHER,THROTTLE VALVE Price: $6.61 |
| 46 |
92055-1059 |
O RING,CHECK VALVE Price: $11.60 |
| 47 |
92037-1123 |
CLAMP,SPRING,CHECK VL Price: $8.01 |
| 48 |
13042-1004 |
WEIGHT,PUMP,CHECK VLV Price: $7.63 |
