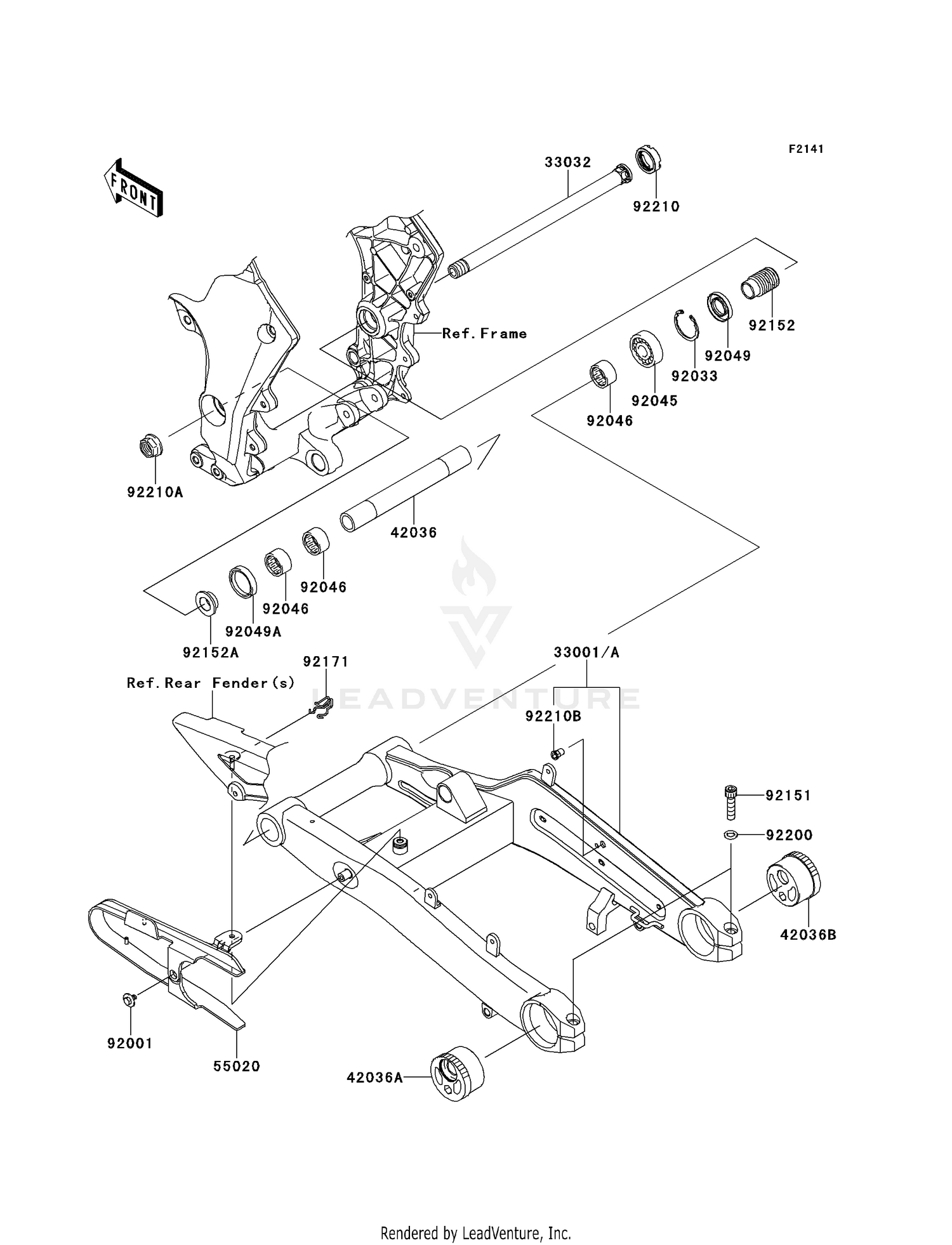

| Ref | Part Number | Description |
|---|
| 33001 |
33001-0694-18R |
ARM-COMP-SWING,F.S.BL This part replaces 33001-0554-18R. Price: $1,044.79 |
| 33001A |
33001-0694-26M |
ARM-COMP-SWING,F.M.GR This part replaces 33001-0554-26M. Price: $1,044.79 |
| 33032 |
33032-0044 |
SHAFT-SWING ARM This part replaces 33032-0013. Price: $104.53 |
| 42036 |
42036-0069 |
SLEEVE,20.1X28X226 Price: $71.68 |
| 42036A |
42036-1153-KX |
SLEEVE,REAR AXLE,LH,SILVER Price: $104.88 |
| 42036B |
42036-1265-KX |
SLEEVE,REAR AXLE,RH,SILVER Price: $104.88 |
| 55020 |
55020-0903 |
GUARD,CHAIN This part replaces 55020-0549. Price: $74.82 |
| 92001 |
92001-1771 |
BOLT,6X12 Price: $3.92 |
| 92033 |
92033-1041 |
RING-SNAP,42MM Price: $6.16 |
| 92045 |
92045-0017 |
BEARING-BALL,6004UL11 Price: $14.39 |
| 92046 |
92046-0008 |
BEARING-NEEDLE,7E-HVS 28X34X17 Price: $21.54 |
| 92049 |
92049-1314 |
SEAL-OIL,MHSA25X42X6 Price: $13.75 |
| 92049A |
92049-1352 |
SEAL-OIL,MHSA25X34X7 Price: $9.28 |
| 92151 |
92151-1899 |
BOLT,SOCKET,10X40 Price: $5.00 |
| 92152 |
92152-2980 |
COLLAR,SWING ARM,L=47 This part replaces 92152-0154. Price: $37.14 |
| 92152A |
92152-3997 |
COLLAR,SWING ARM,L=12.5 This part replaces 92152-1234. Price: $8.97 |
| 92171 |
92171-0907 |
CLAMP Price: $10.30 |
| 92200 |
92200-0531 |
WASHER,10.5X18X2.0 Price: $3.52 |
| 92210 |
92210-0134 |
NUT,30MM Price: $28.51 |
| 92210A |
92210-0320 |
NUT,FLANGED,20MM Price: $11.93 |
