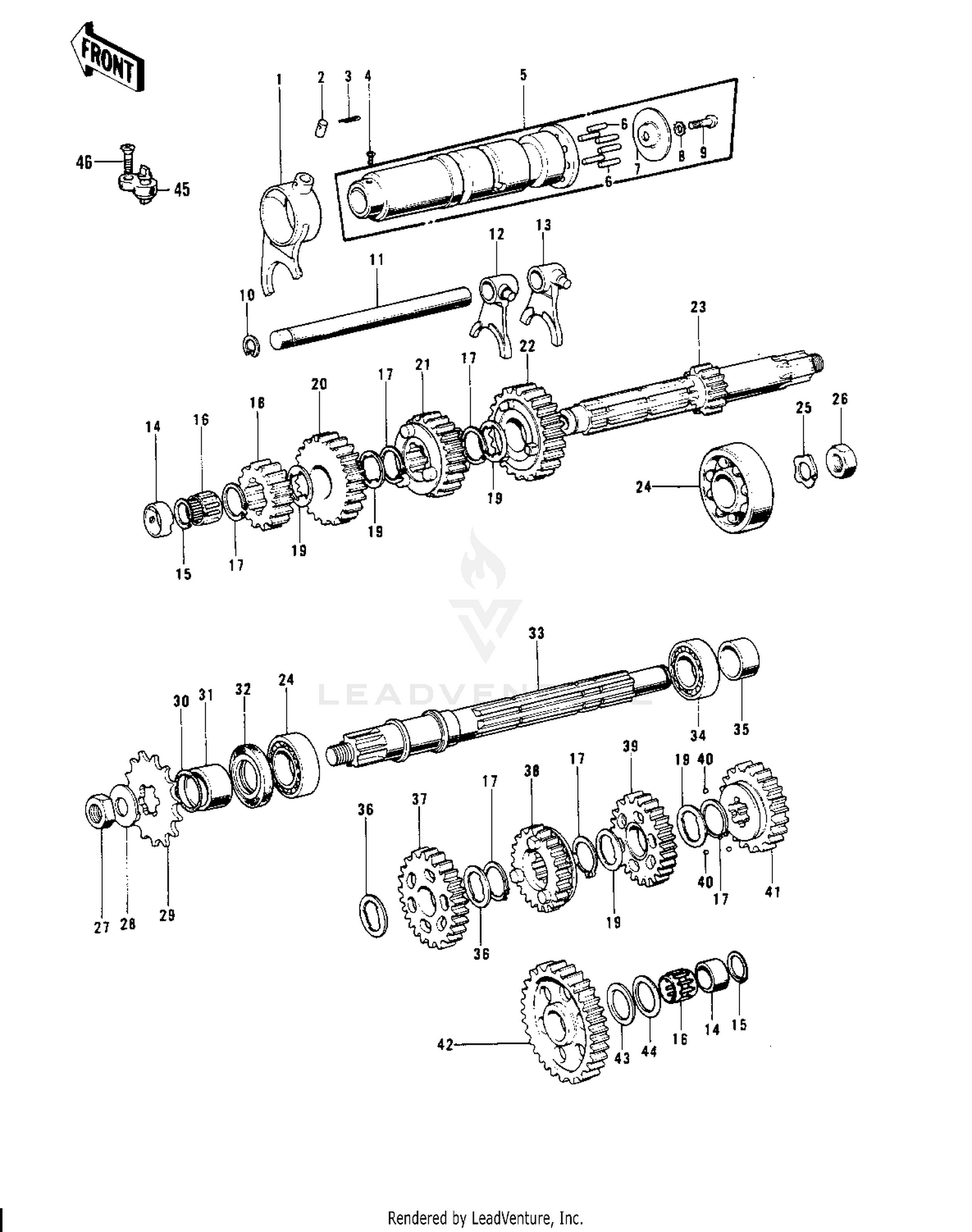

| Ref | Part Number | Description |
|---|
| 1 |
13140-037 |
FORK-SELECTOR,4TH&TOP Price: $134.12 |
| 2 |
92042-021 |
DOWEL PIN,8X18 Price: $11.51 |
| 3 |
550AA3020 |
PIN-COTTER,3.0X20 This part replaces 550D3020. Price: $1.78 |
| 4 |
211B0406 |
SCREW PAN HEAD 4X6 This part replaces 211B0406A. Price: $0.77 |
| 5 |
13239-003 |
DRUM ASSY-GEAR CHANGE Price: $143.48 |
| 6 |
92042-014 |
PIN,DOWEL,4X15.8 Price: $0.43 |
| 7 |
13142-008 |
PLATE CHANGE DRUM PIN Price: $3.78 |
| 8 |
464H0600 |
WASHER LOCK 6MM Price: $0.68 |
| 9 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 10 |
482J0100 |
CIRCLIP-TYPE-E,10MM Price: $0.73 |
| 11 |
13209-006 |
ROD-SHIFT Price: $12.17 |
| 12 |
13140-054 |
SELECTOR FORK,2ND&3RD Price: $81.33 |
| 13 |
13140-053 |
SELECTOR FORK,LOW Price: $84.62 |
| 14 |
92028-043 |
BUSH TRANSMMISION SFT Price: $29.36 |
| 15 |
92033-009 |
CIRCLIP 17MM Price: $3.42 |
| 16 |
92046-005 |
BEARING NEEDLE Price: $14.47 |
| 17 |
92033-025 |
RING-SNAP,20X25.5X1.2 Price: $4.96 |
| 19 |
92024-034 |
WASHER-LOCK Price: $2.93 |
| 20 |
13136-038 |
TOP GEAR-DRIVE SHAFT Price: $77.86 |
| 23 |
13127-034 |
SHAFT-DRIVE Price: $238.64 |
| 24 |
92045-1013 |
BEARING-BALL,#6205NX3 This part replaces 92045-010. Price: $24.30 |
| 25 |
92024-046 |
WASHER-LOCK,14MM Price: $4.78 |
| 26 |
315AA1400 |
NUT,14MM This part replaces 315B1400. Price: $2.17 |
| 27 |
92015-019 |
NUT 18MM Price: $7.22 |
| 29 |
13144-030 |
ENGINE SPROCKET 15T Price: $85.36 |
| 29 |
13144-036 |
ENG SPROCKET 16T (OPT Price: $29.93 |
| 30 |
92055-035 |
RING-O Price: $5.00 |
| 31 |
92026-1024 |
SPACER-ENG SPROCKET Price: $19.50 |
| 32 |
92049-1506 |
SEAL-OIL,HTC 32 52 10 This part replaces 92050-024. Price: $8.17 |
| 33 |
13128-5004 |
SHAFT,OUTPUT Price: $136.06 |
| 34 |
601B6005 |
BEARING BALL #6005 Price: $16.92 |
| 35 |
92027-135 |
COLLAR Price: $5.79 |
| 36 |
92024-035 |
WASHER-LOCK Price: $7.36 |
| 38 |
13137-022 |
TOP GEAR-OUTPUT SHAFT Price: $121.57 |
| 40 |
600A0500 |
BALL-STEEL,5/32 Price: $0.81 |
| 42 |
13129-038 |
LOW GEAR-OUTPUT SHAFT Price: $119.90 |
| 43 |
92026-021 |
WASHER THRUST Price: $10.41 |
| 44 |
92022-075 |
WASHER 17MM Price: $7.68 |
| 45 |
13151-021 |
SWITCH,NEUTRAL Price: $25.49 |
