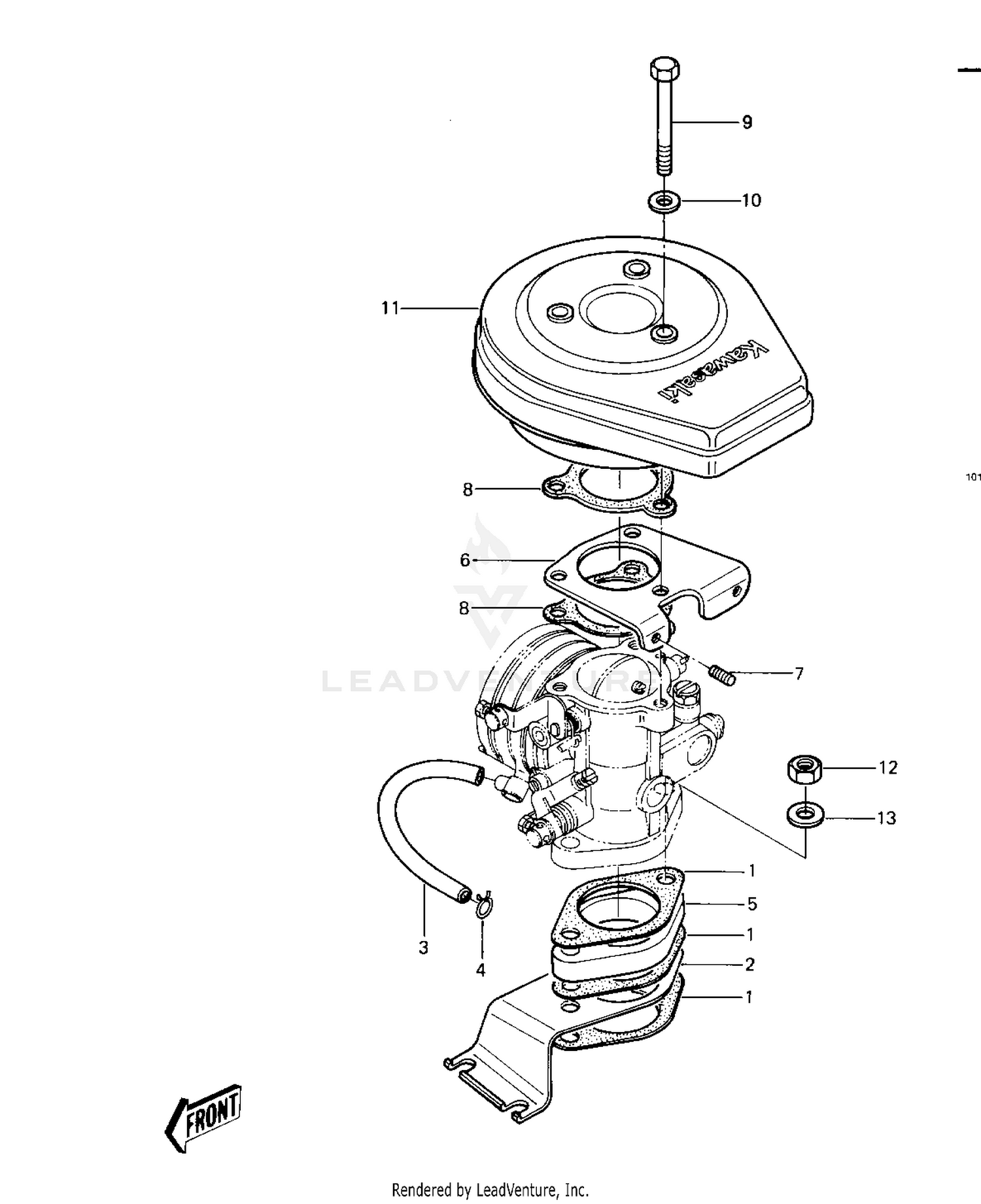

CARBURETOR BRACKETS/FLAME ARRESTER
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11009-3786 | GASKET,INSULATOR Price: $6.56 |
| 2 | 11034-3004 | BRACKET,CONTROL Price: $26.98 |
| 3 | 92059-518 | PIPE,PULS Price: $4.99 |
| 4 | 92037-1173 | CLAMP Price: $3.49 |
| 5 | 16061-511 | INSULATOR Price: $15.64 |
| 6 | 11034-3003 | BRACKET,CARBURETOR Price: $18.70 |
| 7 | 171R0612 | STUD,6X12 Price: $3.11 |
| 8 | 11060-3702 | GASKET Price: $4.32 |
| 9 | 110R0680 | BOLT,6X80 Price: $12.50 |
| 10 | 411S0600 | WASHER-PLAIN,6MM Price: $2.06 |
| 11 | 59006-2051-YR | ARRESTER-FLAME Price: $329.43 |
| 12 | 312R0800 | NUT,8MM Price: $2.37 |
| 13 | 410S0800 | WASHER-PLAIN-SMALL,8MM Price: $2.58 |
