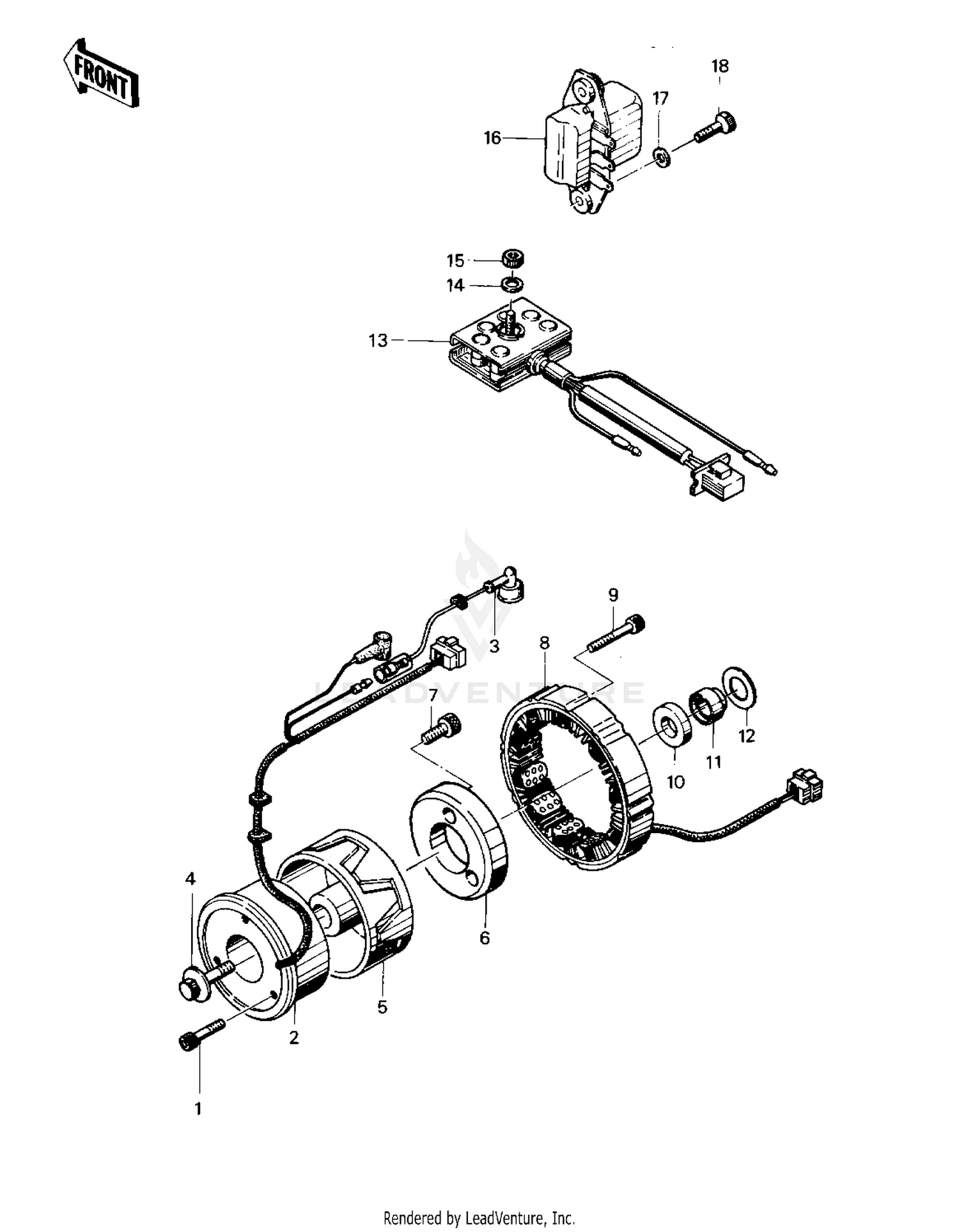

| Ref | Part Number | Description |
|---|
| 1 |
120CA0618 |
BOLT-SOCKET,6X18 This part replaces 120P0618. Price: $3.07 |
| 2 |
21077-002 |
COIL FIELD Price: $332.47 |
| 3 |
26011-087 |
WIRE DYNAMO LEAD Price: $16.13 |
| 4 |
92002-1303 |
BOLT,10X40 Price: $16.16 |
| 5 |
21007-030 |
ROTOR Price: $447.19 |
| 6 |
21050-024 |
FLYWHEEL Price: $32.19 |
| 7 |
120CA0816 |
BOLT-SOCKET,8X16 This part replaces 120P0816. Price: $4.45 |
| 8 |
21076-019 |
STATOR ASSY Price: $560.77 |
| 9 |
120Q0632 |
BOLT,ALLEN,6X32 Price: $7.20 |
| 10 |
92050-066 |
OIL SEAL Price: $10.20 |
| 11 |
92027-265 |
COLLAR Price: $20.09 |
| 12 |
92026-126 |
WASHER,THRUST Price: $3.67 |
| 14 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 15 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 16 |
21066-018 |
REGULATOR Price: $539.65 |
| 17 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
