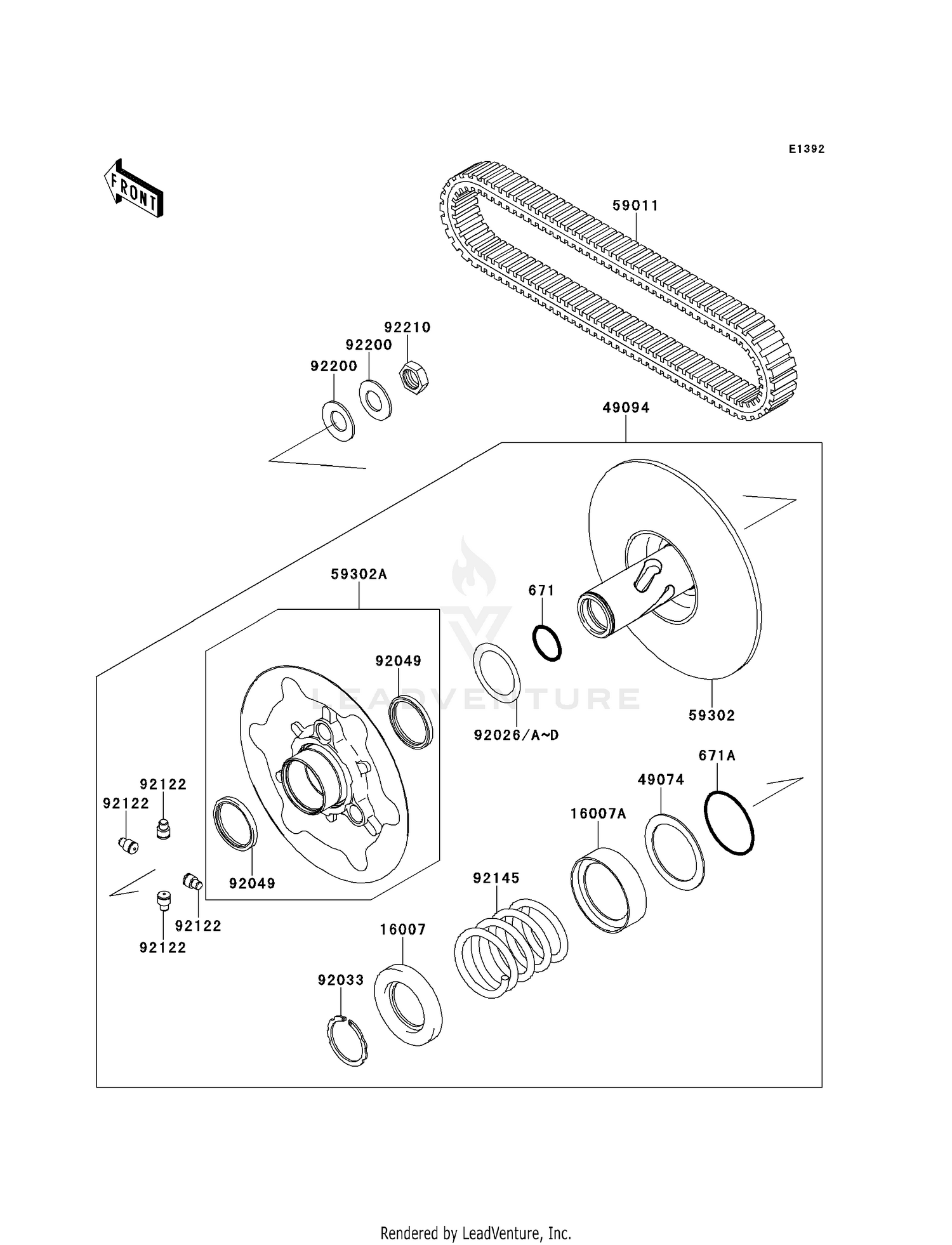

DRIVEN CONVERTER/DRIVE BELT
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 671 | 671D2530 | O RING Price: $5.79 |
| 671A | 671D2550 | O RING Price: $6.57 |
| 16007 | 16007-1203 | SEAT-SPRING Price: $10.39 |
| 16007A | 16007-1221 | SEAT-SPRING,SHEAVE MOVABLE Price: $19.90 |
| 49074 | 49074-1055 | PLATE-THRUST Price: $36.58 |
| 49094 | 49094-0051 | CONVERTER-ASSY-DRIVEN Price: $668.83 |
| 59011 | 59011-0003 | BELT Price: $118.78 |
| 59302 | 59302-0077 | SHEAVE-COMP,FIXED This part replaces 59302-0001. Price: $337.75 |
| 59302A | 59302-0039 | SHEAVE-COMP,MOVABLE Price: $337.75 |
| 92026 | 92026-0034 | SPACER,T=0.30 Price: $7.98 |
| 92026A | 92026-1565 | SPACER,T=1.00 Price: $7.98 |
| 92026B | 92026-1569 | SPACER,T=0.60 Price: $7.98 |
| 92026C | 92026-1570 | SPACER,T=1.40 Price: $7.98 |
| 92026D | 92026-1617 | SPACER,T=0.80 Price: $7.98 |
| 92033 | 92033-1317 | RING-SNAP Price: $6.12 |
| 92049 | 92049-1528 | SEAL-OIL Price: $16.41 |
| 92122 | 92122-1209 | ROLLER Price: $7.65 |
| 92145 | 92145-1499 | SPRING,PURPLE Price: $34.02 |
| 92200 | 92200-1505 | WASHER Price: $5.00 |
