| Ref | Part Number | Description |
|---|
| 12 |
518325371 |
MAG Engine Support Price: $78.99 |
| 14 |
518325782 |
RH Deflector, Black Polypropylene Price: $13.99 |
| 16 |
518325783 |
LH Deflector, Black Polypropylene Price: $13.99 |
| 18 |
293150104 |
Pop Rivet 3/16" Price: $1.09 |
| 20 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip Price: $1.99 |
| 22 |
518325560 |
Adhesive Patch Price: $4.69 |
| 24 |
518327907 |
Front Radiator Ass'y Price: $539.99 |
| 26 |
293150203 |
Rivet Avibulb 3/16 Price: $2.19 |
| 30 |
293150174 |
Hemlock Rivet, 6.4 mm Price: $7.99 |
| 32 |
518326937 |
RH Reinforcement, Running Board Price: $27.99 |
| 34 |
518326938 |
LH Reinforcement, Running Board Price: $27.99 |
| 36 |
518325973 |
RH Rear Base Price: $21.99 |
| 36 |
518325974 |
LH Rear Base Price: $21.99 |
| 40 |
293450275 |
Insert Price: $12.99 |
| 42 |
518326656 |
Seal Price: $9.19 |
| 44 |
518327105 |
Rear Cap Price: $22.49 |
| 46 |
293450275 |
Insert Price: $12.99 |
| 48a |
390909200 |
Avex Rivet Price: $0.30 |
| 50 |
293450268 |
Insert M5 X 0.8 Price: $2.09 |
| 52a |
390909200 |
Avex Rivet Price: $0.30 |
| 54 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip Price: $0.98 |
| 56 |
293730042 |
Full Moon Dart 5 mm Price: $2.29 |
| 58 |
293450268 |
Insert M5 X 0.8 Price: $2.09 |
| 60 |
293150203 |
Rivet Avibulb 3/16 Price: $2.19 |
| 62 |
390909100 |
Avex Rivet Price: $0.30 |
| 64 |
293150144 |
Stavex Rivet Price: $0.84 |
| 66 |
293150146 |
Henrob Rivet Price: $2.09 |
| 72a |
518326328 |
RH Side Member Price: $284.99 |
| 72b |
518326330 |
LH Side Member Price: $284.99 |
| 72c |
518326198 |
Front Member Price: $64.99 |
| 72d |
293150144 |
Stavex Rivet Price: $0.84 |
| 72e |
293150120 |
Hemlock Rivet 6.5 mm Price: $7.59 |
| 72f |
293150119 |
Hemlock Rivet, 6.5 mm Price: $4.39 |
| 72g |
505073317 |
Leg Cushion Price: $8.66 |
| 72h |
250000349 |
Torx Truss Screw M6 X 10 Price: $7.69 |
| 72j |
234062410 |
Flat Washer 6 mm Price: $0.79 |
| 80 |
518328344 |
RH Slide Suspension Bracket Price: $39.99 |
| 82 |
518328345 |
LH SLIDE SUSPENSION BRACKET - Call your local BRP dealership Price: $36.99 |
| 84 |
518327472 |
RH Roller Price: $194.99 |
| 86 |
518327473 |
LH Roller Price: $194.99 |
| 92 |
293150144 |
Stavex Rivet Price: $0.84 |
| 94 |
293150174 |
Hemlock Rivet, 6.4 mm Price: $7.99 |
| 150 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 205 |
234281474 |
Conical Spring Washer M8 Price: $1.49 |
| 210 |
390407200 |
Pop Rivet 3/16” Price: $0.72 |
| 300a |
518327487 |
Front Suspension Support Price: $289.99 |
| 305 |
518327565 |
Front Member Price: $349.99 |
| 310 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 320 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 This part replaces 250000822. Price: $1.49 |
| 330 |
207662544 |
Hex. Flange Screw M6 X 25 Price: $0.66 |
| 340 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 350 |
293150191 |
Monobolt Rivet, 4.8 mm Price: $0.99 |
| 360 |
293150182 |
Monobolt Rivet 6.4 Price: $3.19 |
| 370 |
207661644 |
Hex. Flange Screw M6 X 16 Price: $0.76 |
| 500 |
518327460 |
Driven Pulley Support Price: $109.99 |
| 510 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 530 |
250000351 |
Hex. Flange Screw M8 X 25, Nylon Price: $2.19 |
| 900 |
518326559 |
Rear Member Price: $264.99 |
| 910 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 1100 |
518325114 |
Upper Lateral Column Support Price: $22.49 |
| 1110 |
207662044 |
Hex. Flange Screw M6 X 20 Price: $2.09 |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 1200 |
518326657 |
Center Column Support Price: $19.99 |
| 1210 |
207662544 |
Hex. Flange Screw M6 X 25 Price: $0.66 |
| 1220 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 1300 |
518327637 |
Black, Rear Bumper Price: $169.99 |
| 1340 |
520000840 |
BLACK CAP - Call your local BRP dealership Price: $9.99 |
| 1400 |
293730047 |
Black, Dart 8 mm Price: $2.29 |
| 1400 |
293730053 |
Black Dart 5 mm Price: $4.69 |
| 1400 |
293730060 |
Black, Dart 10 mm Price: $4.69 |
| 1700a |
517124300 |
Washer Price: $0.19 |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. Price: $1.19 |
| 2000 |
860200802 |
TUNNEL PROT. - Call your local BRP dealership This part replaces 860200267. Price: $69.99 |
| 2100 |
860200802 |
TUNNEL PROT. - Call your local BRP dealership This part replaces 860200267. Price: $69.99 |
| 2200 |
518327145 |
Sub A Support Price: $79.99 |
| 2300 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. Price: $4.29 |
| 6000 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip Price: $2.19 |
| 39156 |
39156-2695 |
PAD This part replaces 39156-1641. Price: $11.68 |

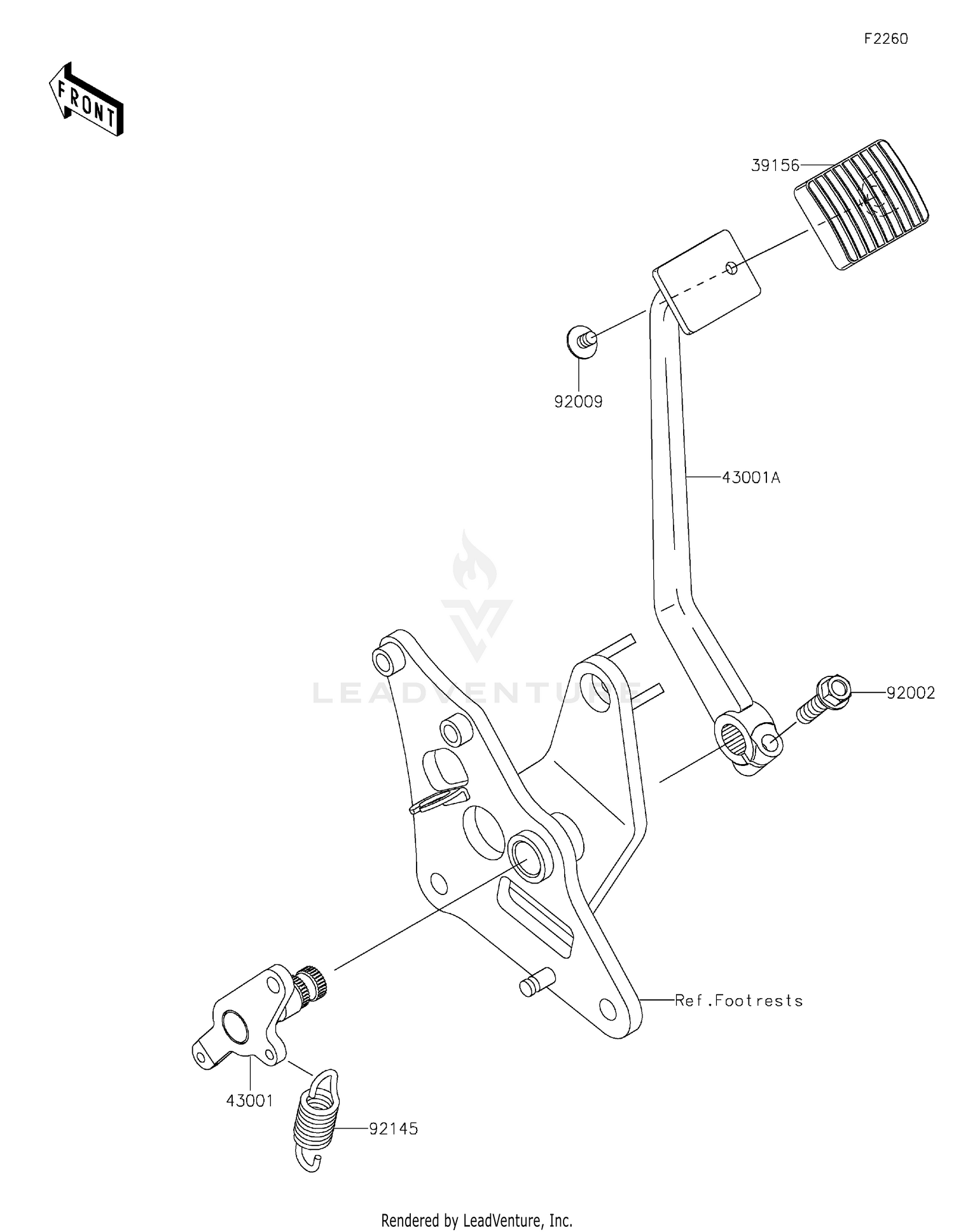

| 43001 |
43001-0057 |
LEVER-BRAKE Price: $46.10 |
| 43001A |
43001-0114 |
LEVER-BRAKE,PEDAL Price: $100.52 |
| 92002 |
92002-1201 |
BOLT,FLANGED,8X25 Price: $4.69 |
| 92009 |
92009-1677 |
SCREW,6X8 Price: $4.31 |
