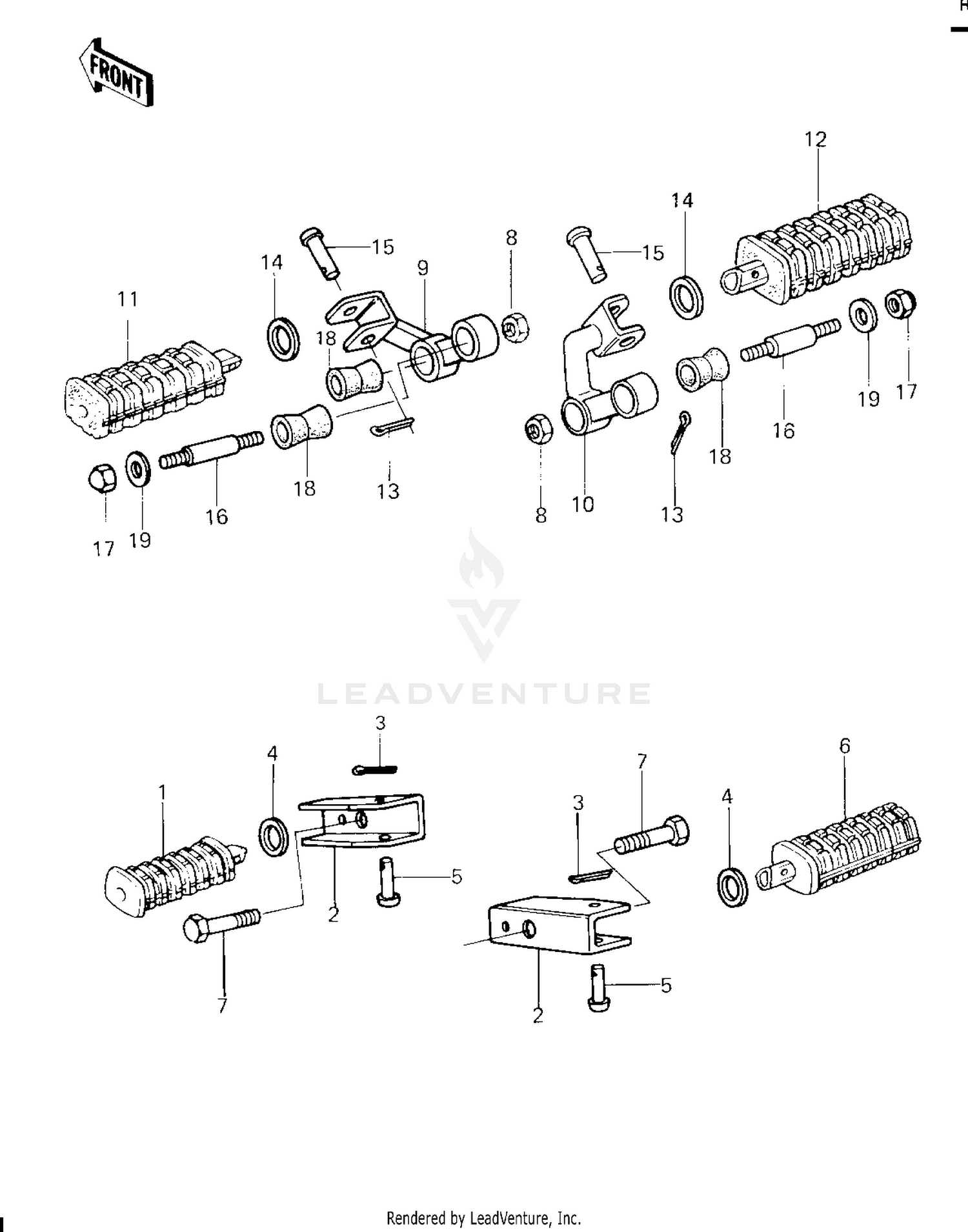

| Ref | Part Number | Description |
|---|
| 1 |
34028-1009 |
STEP,FOOTREST,REAR,LH Price: $35.18 |
| 2 |
34036-002 |
BRACKET,REAR FOOTREST Price: $37.60 |
| 3 |
550AA2012 |
PIN,COTTER,2.0X12 This part replaces 550D2012. Price: $1.11 |
| 4 |
92022-181 |
WASHER-PLAIN Price: $7.33 |
| 5 |
92043-1464 |
PIN,6X28 Price: $8.10 |
| 6 |
34028-1010 |
STEP,FOOTREST,REAR,RH Price: $35.18 |
| 7 |
92003-213 |
BOLT,HEX HEAD,10X40 Price: $8.03 |
| 8 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 9 |
34003-1012 |
HOLDER,STEP,L.H. Price: $78.66 |
| 10 |
34003-1015 |
HOLDER,STEP,R.H. Price: $78.66 |
| 11 |
34028-1007 |
STEP,FOOTREST,FRONT,L Price: $38.33 |
| 12 |
34028-1008 |
STEP,FOOTREST,FRONT,R Price: $40.37 |
| 13 |
550D2516 |
PIN COTTER 2.5X16 Price: $2.79 |
| 14 |
92022-250 |
WASHER,25X36X2.3 Price: $5.00 |
| 15 |
92043-080 |
PIN,8X31 Price: $5.52 |
| 16 |
92004-048 |
STUD,FOOTREST BAR FIT Price: $14.37 |
| 17 |
92019-013 |
NUT,CAP AND LOCK,8MM Price: $14.88 |
| 18 |
92075-293 |
DAMPER RUBBER,FOOTRES Price: $9.89 |
