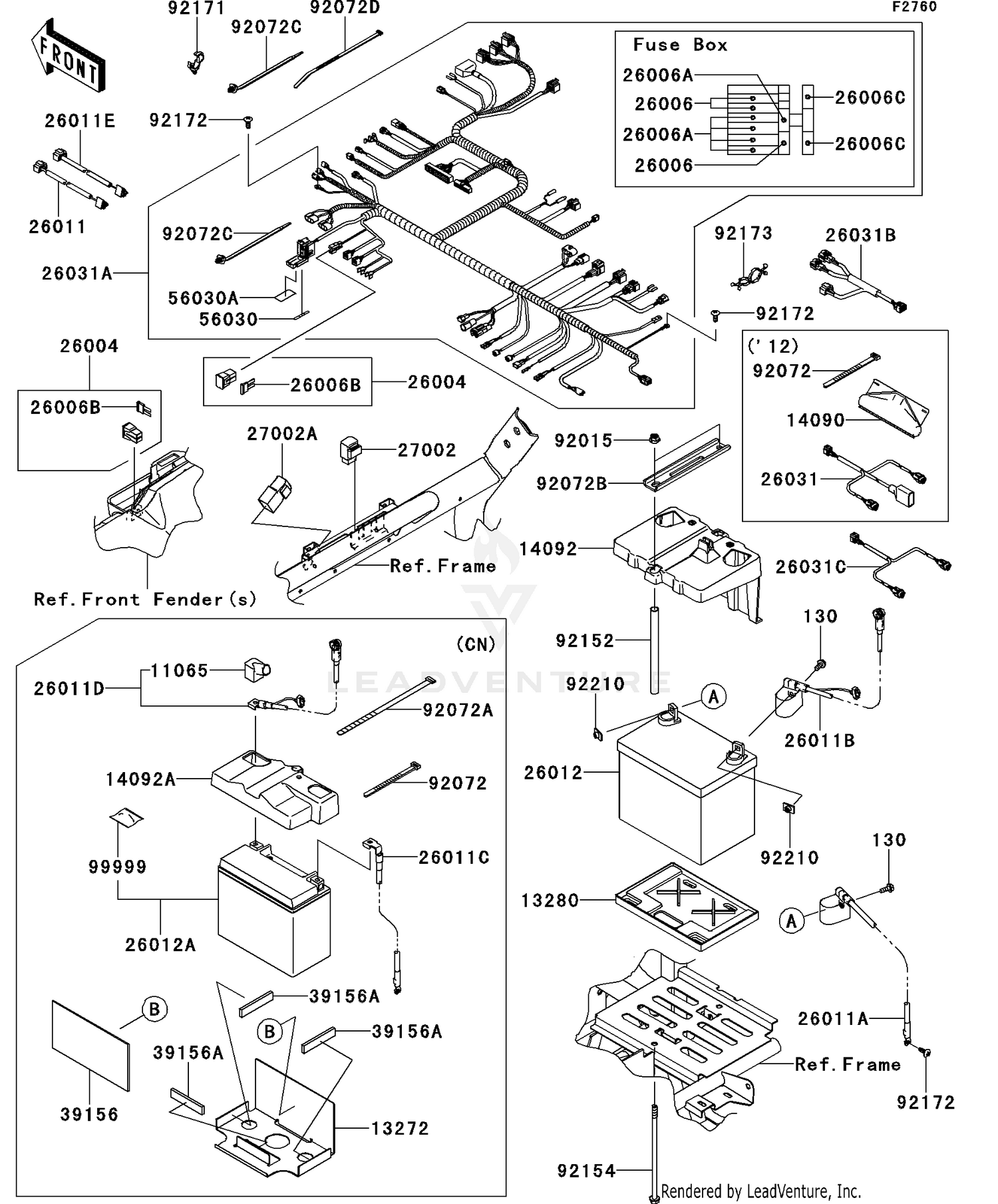

Chassis Electrical Equipment

Chassis Electrical Equipment

Parts (25)

RefPart NumberDescription
13280 13280-0709 HOLDER,BATTERY Price: $7.80
14090 14090-1331 COVER,COUPLER Price: $8.51
26004 26004-0035 FUSE-ASSY,40A This part replaces 26004-1093. Price: $4.11
26006 26006-0001 FUSE,MINI BLADE,15A,BLUE Price: $6.12
26006A 26006-1078 FUSE,MINI BLADE,10A,RED This part replaces 26006-0009. Price: $4.87
26006B 26006-0014 FUSE,SLOW BLOW,BT,40A,GREEN Price: $5.24
26006C 26006-1080 FUSE,MINI BLADE,30A,GREEN Price: $4.87
26011 26011-0276 WIRE-LEAD,HEAD LAMP,L Price: $58.61
26011E 26011-0759 WIRE-LEAD,HEAD LAMP,R Price: $50.58
26031 26031-1149 HARNESS,SUB,TAIL LAMP Price: $34.32
26031A 26031-1179 HARNESS,MAIN Price: $752.89
26031B 26031-1264 HARNESS,SUB,TPS Price: $28.09
27002 27002-1062 RELAY-ASSY Price: $45.39
27002A 27002-1086 RELAY-ASSY Price: $36.91
56030 56030-0404 LABEL,FUSE BOX,30A Price: $3.77
56030A 56030-0703 LABEL,FUSE BOX Price: $3.77
92015 92015-1406 NUT,FLANGED,8MM Price: $4.45
92072B 92072-0707 BAND Price: $7.59
92072C 92072-1414 BAND,OS170-FT7(BLACK) Price: $3.74
92072D 92072-3509 BAND,L=292.1 Price: $2.12
92152 92152-1555 COLLAR,10.2X12.7X165.8 Price: $3.21
92154 92154-0889 BOLT,FLANGED,8X185 Price: $9.17
92171 92171-1415 CLAMP,13MM DIA. Price: $2.03
92172 92172-0739 SCREW,TAPPING,6X16 Price: $0.85
92173 92173-0962 CLAMP,PURSE LOCK Price: $4.62
