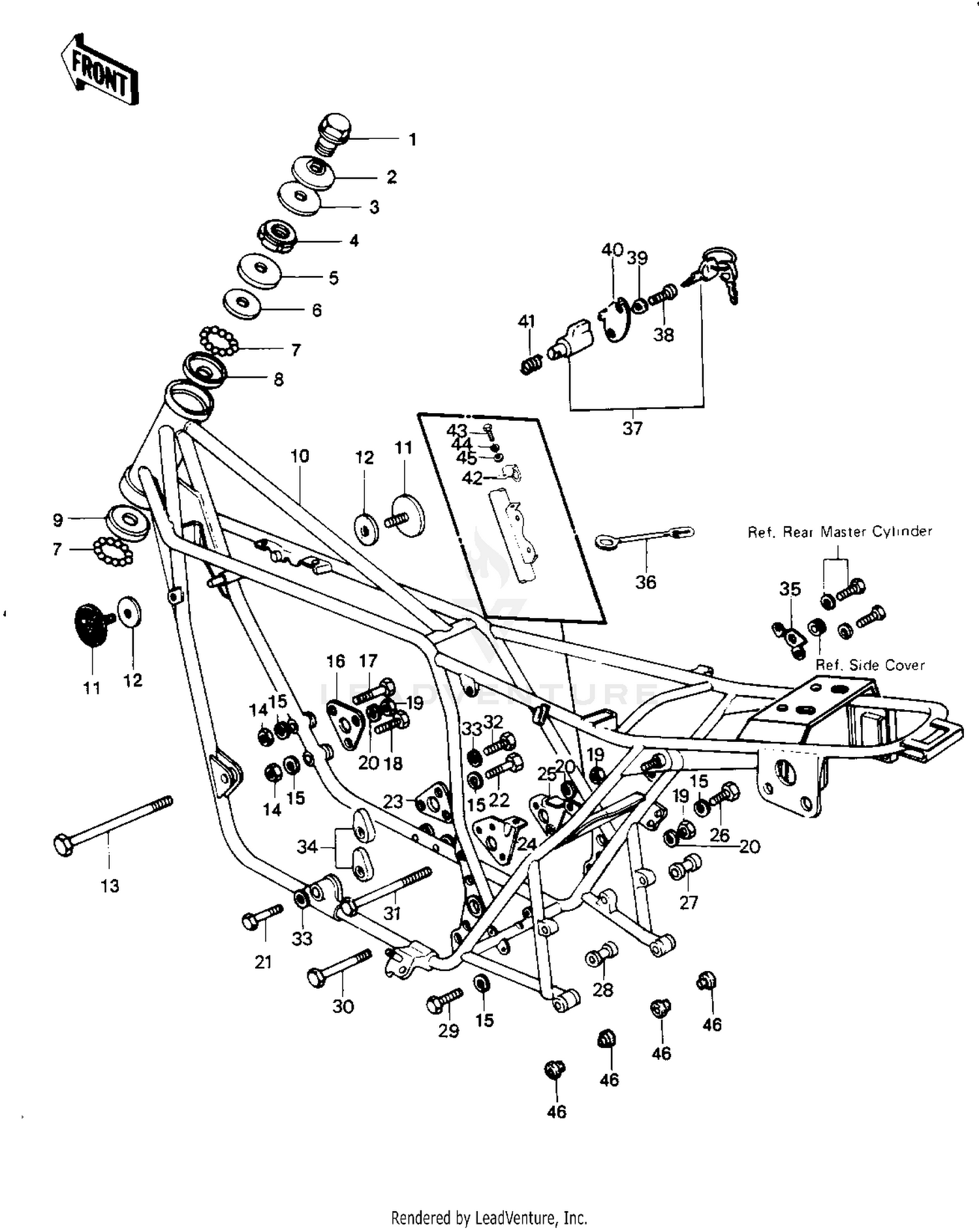

| Ref | Part Number | Description |
|---|
| 1 |
92007-031 |
BOLT,STEERG STEM HEAD Price: $29.84 |
| 2 |
92200-1273 |
WASHER,16X41X4.5 This part replaces 92022-230. Price: $11.93 |
| 3 |
46100-003 |
WASHER,WAVE Price: $11.39 |
| 4 |
92090-007 |
NUT,30MM Price: $11.71 |
| 5 |
46098-016 |
CAP,STEERING STEM Price: $6.51 |
| 6 |
92048-0032 |
RACE,STEERING STEM BEARING This part replaces 92047-011. Price: $14.60 |
| 7 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 8 |
92048-0036 |
RACE,STEERING STEM BEARING This part replaces 92048-006. Price: $11.61 |
| 9 |
92048-0037 |
RACE,STEERING STEM BEARING This part replaces 92048-008. Price: $16.02 |
| 10 |
32002-1141 |
FRAME Price: $947.30 |
| 11 |
28012-016 |
REFLECTOR-REFLEX,FR Price: $23.25 |
| 12 |
92094-011 |
DAMPER RUBBER,REFLECT Price: $4.60 |
| 14 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 15 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 16 |
32030-025 |
PLATE,ENG MOUNT FRONT Price: $21.66 |
| 17 |
92002-1349 |
BOLT,FLANGED,8X65 This part replaces 92001-1582. Price: $4.83 |
| 18 |
92001-1581 |
BOLT,FLANGED,8X60 Price: $5.14 |
| 19 |
92210-1184 |
NUT,LOCK,10MM This part replaces 92019-021. Price: $6.11 |
| 20 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 21 |
92001-1262 |
BOLT,HEX HEAD,12X55 Price: $11.66 |
| 22 |
115BA0818 |
BOLT-SMALL-UPSET,8X18 This part replaces 115G0818. Price: $5.61 |
| 23 |
32030-026 |
PLATE,ENG MOUNT LOWER Price: $18.71 |
| 24 |
32030-066 |
PLATE,REAR ENGINE,L.H Price: $15.67 |
| 25 |
32029-1024 |
BRACKET,REAR ENGINE Price: $15.73 |
| 26 |
92002-1838 |
BOLT,FLANGED,8X40 This part replaces 92001-1578. Price: $8.19 |
| 27 |
92027-160 |
COLLAR,ENG MOUNTING Price: $13.33 |
| 28 |
92027-159 |
COLLAR,ENG MOUNTING Price: $29.02 |
| 29 |
92001-1577 |
BOLT,FLANGED,8X35 Price: $5.00 |
| 32 |
92001-1265 |
BOLT,HEX HEAD,12X70 Price: $9.81 |
| 33 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 34 |
92016-045 |
NUT,12MM Price: $25.59 |
| 35 |
32049-101 |
BRACKET,SIDE COV,R.H Price: $5.32 |
| 36 |
92037-134 |
CLAMP,OVER FLOW PIPE Price: $11.50 |
| 37 |
27016-5009 |
LOCK-ASSY,STEERING This part replaces 27016-5016. Price: $97.93 |
| 38 |
92008-007 |
SCREW,3.51MM Price: $4.11 |
| 39 |
92097-003 |
WASHER,WAVE Price: $4.50 |
| 40 |
11012-1134 |
CAP,STEERING LOCK Price: $6.87 |
| 41 |
27032-001 |
SPRING-STEERING LOCK Price: $5.25 |
| 42 |
11034-1684 |
BRACKET,SIDE STAND Price: $2.73 |
| 43 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 44 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 45 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
