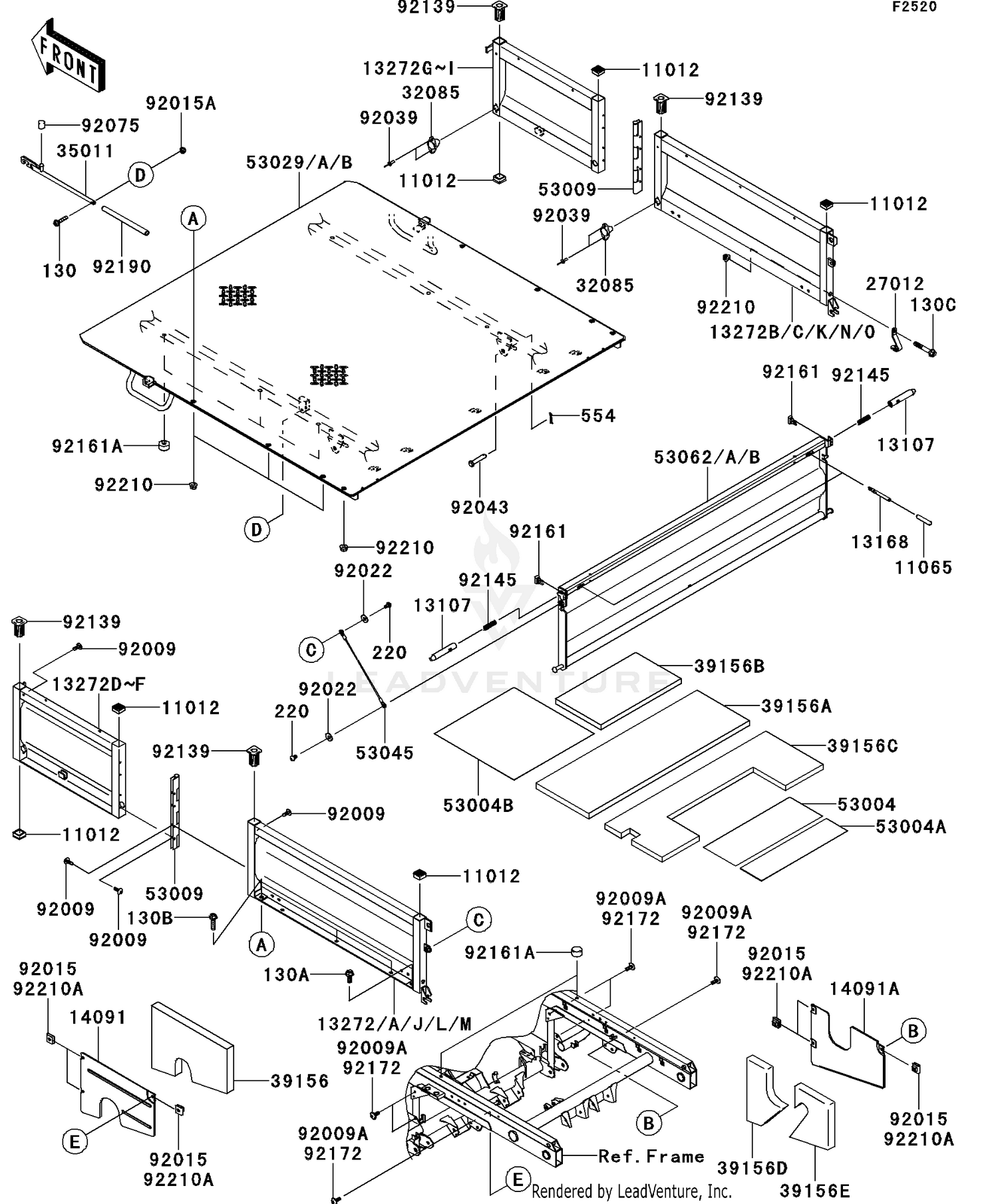

| Ref | Part Number | Description |
|---|
| 130 |
130BA0630 |
BOLT-FLANGED,6X30 Price: $1.46 |
| 130A |
130BB0820 |
BOLT-FLANGED,8X20 Price: $0.84 |
| 130B |
130BB0830 |
BOLT-FLANGED,8X30 Price: $4.49 |
| 130C |
130BB0850 |
BOLT-FLANGED,8X50 Price: $4.73 |
| 220 |
220AB0610 |
SCREW-PAN-CROS,6X10 Price: $1.81 |
| 554 |
554DA1200 |
PIN-SNAP,12MM Price: $3.96 |
| 11012 |
11012-1784 |
CAP Price: $6.32 |
| 11065 |
11065-0126 |
CAP Price: $3.38 |
| 13107 |
13107-0082 |
SHAFT Price: $65.41 |
| 13168 |
13168-0090 |
LEVER Price: $12.04 |
| 13272 |
13272-0089-16M |
PLATE,SIDE,RR,LH,D.R. Price: $163.86 |
| 13272A |
13272-0089-398 |
PLATE,SIDE,RR,LH,W.GR Price: $163.86 |
| 13272B |
13272-0090-16M |
PLATE,SIDE,RR,RH,D.R. Price: $163.86 |
| 13272C |
13272-0090-398 |
PLATE,SIDE,RR,RH,W.GR Price: $163.86 |
| 13272D |
13272-0501-16M |
PLATE,SIDE,FR,LH,D.R.RED Price: $108.41 |
| 13272E |
13272-0501-398 |
PLATE,SIDE,FR,LH,W.GR Price: $109.57 |
| 13272G |
13272-0502-16M |
PLATE,SIDE,FR,RH,D.R.RED Price: $108.41 |
| 13272H |
13272-0502-398 |
PLATE,SIDE,FR,RH,W.GR Price: $109.57 |
| 14091 |
14091-7546 |
COVER,ENCLOSURE,LH Price: $59.75 |
| 14091A |
14091-7562 |
COVER,ENCLOSURE,RH Price: $59.75 |
| 27012 |
27012-0022 |
HOOK,TAIL GATE Price: $6.43 |
| 32085 |
32085-7501 |
STOPPER Price: $6.96 |
| 35011 |
35011-1648 |
STAY,CARRIER STOPPER Price: $28.90 |
| 39156 |
39156-0007 |
PAD,ENCLOSURE COVER,L Price: $39.91 |
| 39156A |
39156-0465 |
PAD,CARRIER,MIDDLE Price: $70.49 |
| 39156B |
39156-0466 |
PAD,CARRIER,FR Price: $26.15 |
| 39156C |
39156-7505 |
PAD,CARRIER,RR Price: $75.12 |
| 39156D |
39156-7507 |
PAD,ENCLOSURE COVER,R Price: $22.27 |
| 39156E |
39156-7508 |
PAD,ENCLOSURE COVER,R Price: $22.27 |
| 53004 |
53004-0036 |
MAT,CARRIER,MIDDLE Price: $24.70 |
| 53004A |
53004-0037 |
MAT,CARRIER,RR Price: $17.03 |
| 53004B |
53004-0038 |
MAT,CARRIER,FR Price: $49.54 |
| 53009 |
53009-7501 |
HINGE,CARRIER Price: $46.65 |
| 53029 |
53029-0061-16M |
CARRIER,BASE PLATE,D. Price: $939.13 |
| 53029A |
53029-0061-398 |
CARRIER,BASE PLATE,W. Price: $939.13 |
| 53045 |
53045-0031 |
HOOK-ASSY,TAIL GATE This part replaces 53045-0004. Price: $29.74 |
| 53062 |
53062-7503-16M |
GATE-TAIL,D.R.RED Price: $397.28 |
| 53062A |
53062-7503-398 |
GATE-TAIL,W.GREEN Price: $416.34 |
| 92009 |
92009-1166 |
SCREW,TAPPING,6X16 Price: $5.52 |
| 92009A |
92009-1694 |
SCREW,6X16 This part replaces 92009-1621. Price: $3.92 |
| 92015 |
92015-1094 |
NUT,6MM Price: $8.58 |
| 92015A |
92015-1675 |
NUT,LOCK,FLANGED,6MM Price: $4.31 |
| 92022 |
92022-1545 |
WASHER,7X18X1.2 Price: $1.03 |
| 92039 |
92039-1150 |
RIVET Price: $3.92 |
| 92043 |
92043-1428 |
PIN,12X65 Price: $10.09 |
| 92075 |
92075-1817 |
DAMPER Price: $6.22 |
| 92139 |
92139-7501 |
BUSHING,REAR SCREEN Price: $4.67 |
| 92145 |
92145-1215 |
SPRING,TENSIONER Price: $4.63 |
| 92161 |
92161-0258 |
DAMPER Price: $4.16 |
| 92161A |
92161-7510 |
DAMPER Price: $4.36 |
| 92190 |
92190-1401 |
TUBE,13X16X200 Price: $5.25 |
