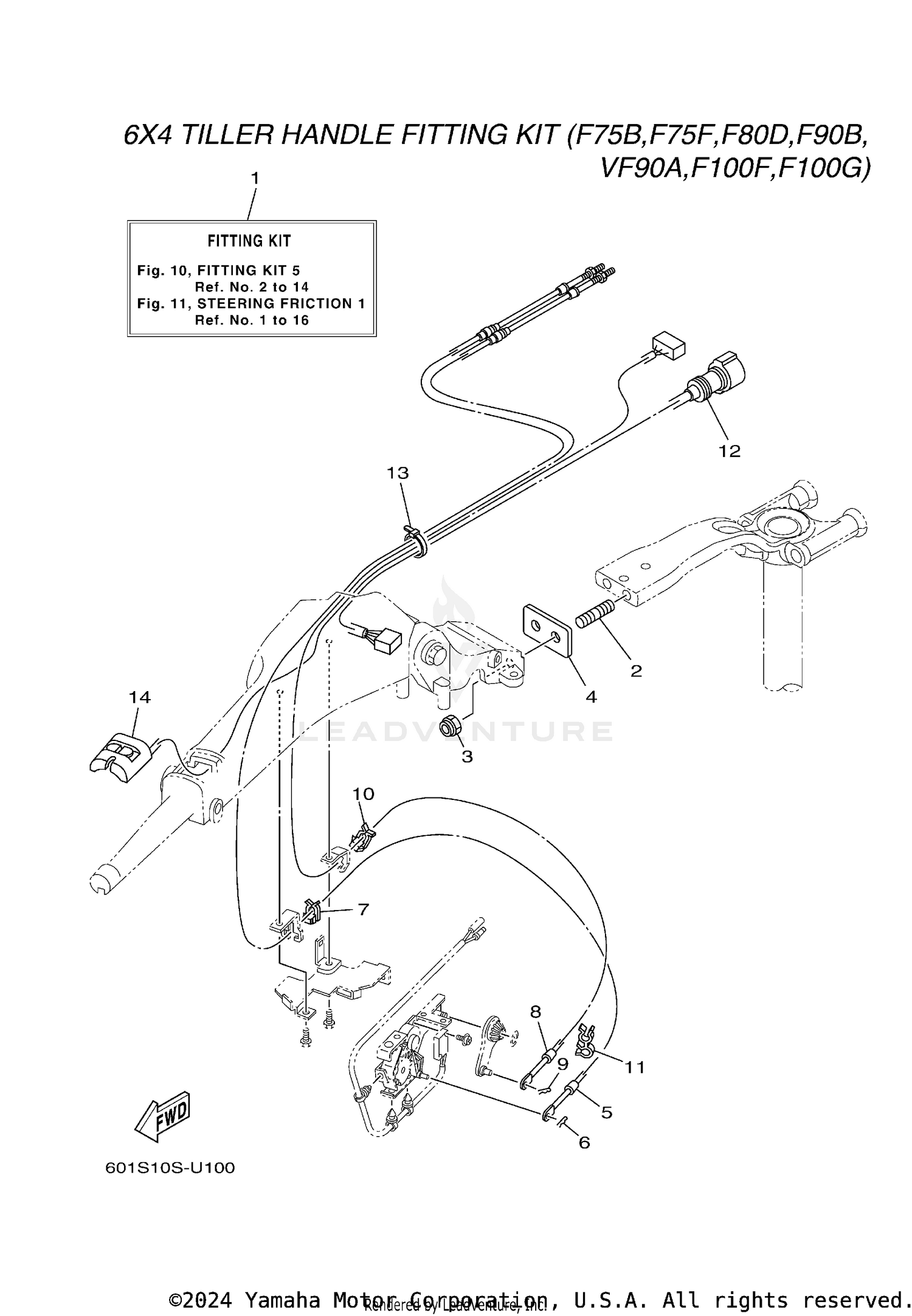

FITTING KIT 5
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 90116-10063-00 | BOLT, STUD Price: $4.05 |
| 3 | 90185-10027-00 | NUT, SELF-LOCKING Price: $2.40 |
| 4 | 6EK-42121-00-00 | BRACKET Price: $45.00 |
| 5 | 6EK-48321-00-00 | CABLE Price: $89.10 |
| 6 | 90468-10005-00 | CLIP Price: $7.15 |
| 7 | 63D-48538-00-00 | CLAMP, CABLE 1 Price: $6.40 |
| 8 | 6FP-26301-00-00 | THROTTLE CABLE ASSY Price: $67.55 |
| 9 | 90468-10005-00 | CLIP Price: $7.15 |
| 10 | 63D-48538-00-00 | CLAMP, CABLE 1 Price: $6.40 |
| 11 | 90464-09M42-00 | CLAMP Price: $6.40 |
| 12 | 6X4-82586-11-00 | EXT., WIRE HARNESS (L:950MM) This part replaces 6X4-82586-10-00. Price: $518.15 |
| 13 | 437-83936-11-00 | BAND, SWITCH CORD This part replaces 90465-13M24-00. Price: $5.00 |
