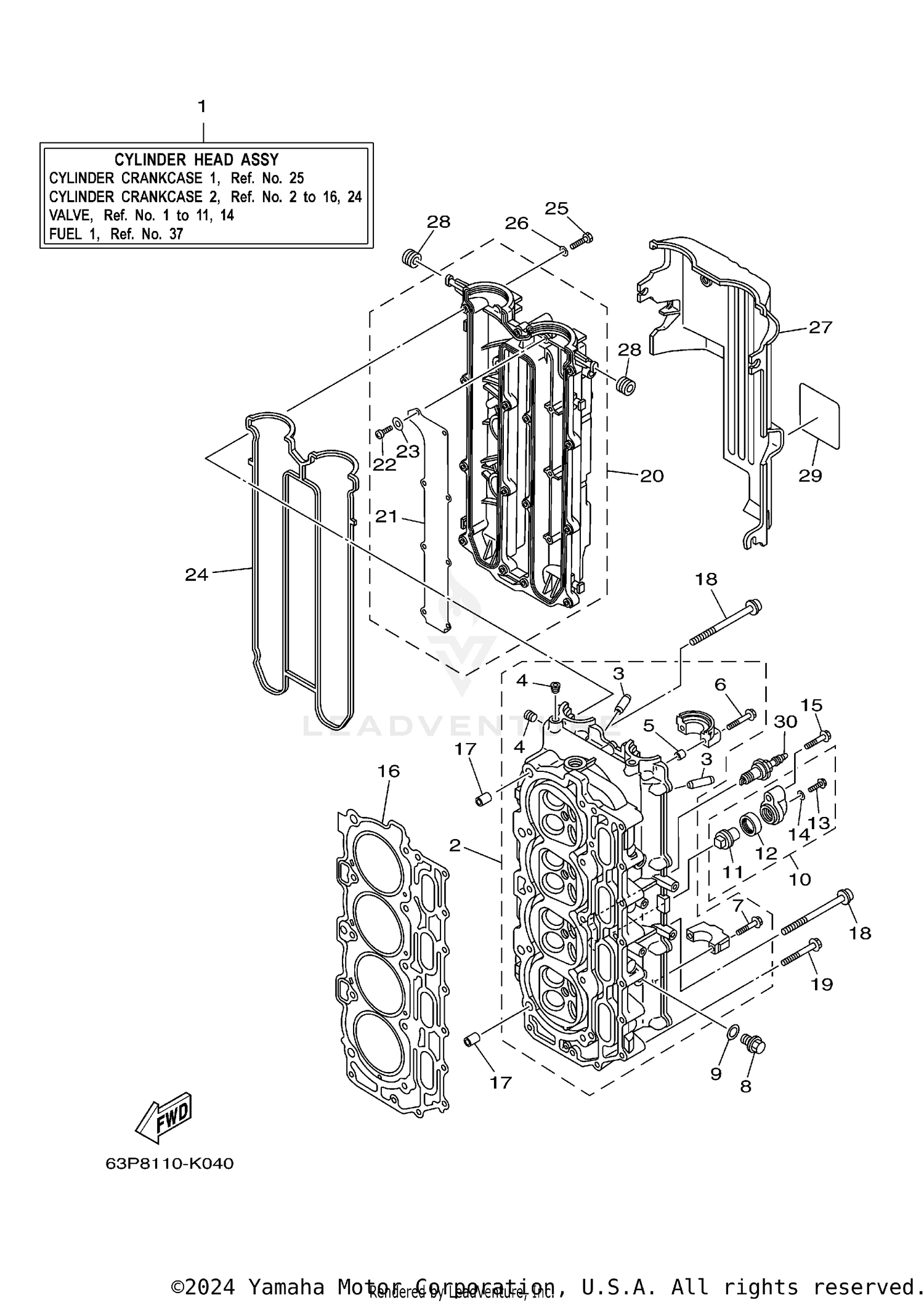

| Ref | Part Number | Description |
|---|
| 1 |
63P-W009A-A0-9S |
CYLINDER HEAD COMPLETE This part replaces 63P-W009A-02-9S. Price: $1,469.70 |
| 2 |
63P-11110-01-00 |
CYLINDER HEAD ASSY Price: $3,520.30 |
| 3 |
69J-11133-10-00 |
GUIDE, VALVE 1 Price: $128.55 |
| 4 |
90344-51008-00 |
PLUG, TAPER SCREW This part replaces 90344-51019-00. Price: $3.05 |
| 5 |
91809-08006-00 |
PIN, DOWEL Price: $5.55 |
| 6 |
90119-07235-00 |
BOLT/WASHER-CAM CAPS Price: $3.65 |
| 7 |
90119-07234-00 |
BOLT, WITH WASHER Price: $3.20 |
| 8 |
90340-14M06-00 |
PLUG, STRAIGHT SCREW Price: $14.20 |
| 9 |
90430-14115-00 |
GASKET Price: $3.00 |
| 10 |
69J-11301-02-00 |
ANODE COVER ASSY This part replaces 69J-11301-00-00. Price: $45.35 |
| 12 |
67F-11328-01-00 |
GROMMET, ANODE This part replaces 67F-11328-00-00. Price: $3.80 |
| 13 |
90105-06M07-00 |
BOLT, FLANGE Price: $2.30 |
| 14 |
90430-06M03-00 |
GASKET Price: $3.65 |
| 15 |
97E75-08540-00 |
BOLT, HEXAGON W/W This part replaces 97575-08540-00. Price: $5.35 |
| 16 |
63P-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $141.45 |
| 17 |
99530-14016-00 |
PIN, DOWEL This part replaces 90387-10M08-00. Price: $3.80 |
| 18 |
90155-10001-00 |
SCREW, FLAT FILLISTER Price: $11.70 |
| 19 |
90119-08M91-00 |
BOLT, WITH WASHER Price: $4.90 |
| 20 |
63P-11191-00-9S |
COVER, CYLINDER HEAD 1 Price: $274.55 |
| 21 |
63P-11135-00-00 |
PLATE, BREATHER 3 Price: $20.80 |
| 22 |
98507-04008-00 |
SCREW, PAN HEAD Price: $2.14 |
| 23 |
92907-04600-00 |
WASHER Price: $1.85 |
| 24 |
63P-11193-00-00 |
GASKET, HEAD COVER 1 Price: $47.45 |
| 25 |
97013-06030-00 |
BOLT This part replaces 97095-06030-00. Price: $2.45 |
| 26 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 27 |
63P-11192-01-00 |
COVER, CYLINDER HEAD 2 Price: $53.35 |
| 28 |
90480-12X00-00 |
GROMMET This part replaces 90480-12314-00. Price: $1.25 |
| 29 |
63P-83626-00-00 |
MARK 6 Price: $9.10 |
