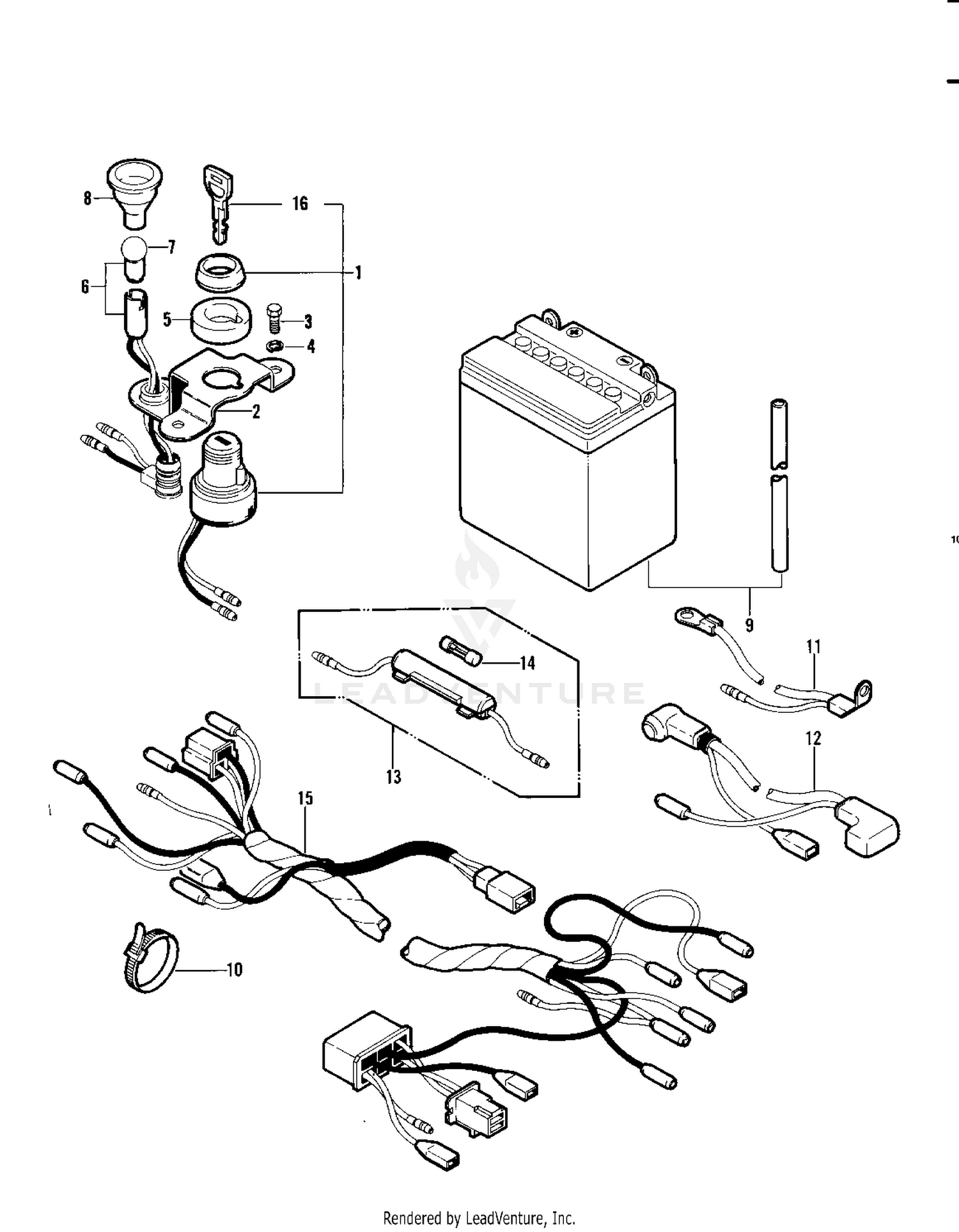

| Ref | Part Number | Description |
|---|
| 1 |
27005-1117 |
SWITCH-ASSY-IGNITION Price: $138.98 |
| 2 |
32059-4002 |
BRACKET-SWITCH,IGNITI Price: $9.78 |
| 3 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 4 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 5 |
92075-4016 |
DAMPER IGNITION SWITH Price: $7.29 |
| 6 |
23016-1025 |
LAMP-ASSY,IGNITION This part replaces 23016-4002. Price: $23.82 |
| 7 |
92069-018 |
BULB 12V 3W Price: $4.87 |
| 8 |
92059-1559 |
TUBE Price: $6.40 |
| 9 |
26012-1061 |
YUA BAT YB12A-A This part replaces 26012-1004. Price: $95.75 |
| 10 |
92072-3505 |
BAND Price: $1.59 |
| 11 |
26010-052 |
WIRE,BATTERY GROUND Price: $21.47 |
| 12 |
26011-4004 |
WIRE-LEAD,BATTERY Price: $24.13 |
| 13 |
26004-013 |
FUSE ASSY Price: $16.29 |
| 14 |
26006-005 |
FUSE,GLASS TUBE,6.4X25,20 Price: $5.06 |
| 15 |
26001-4015 |
HARNESS,MAIN Price: $132.80 |
