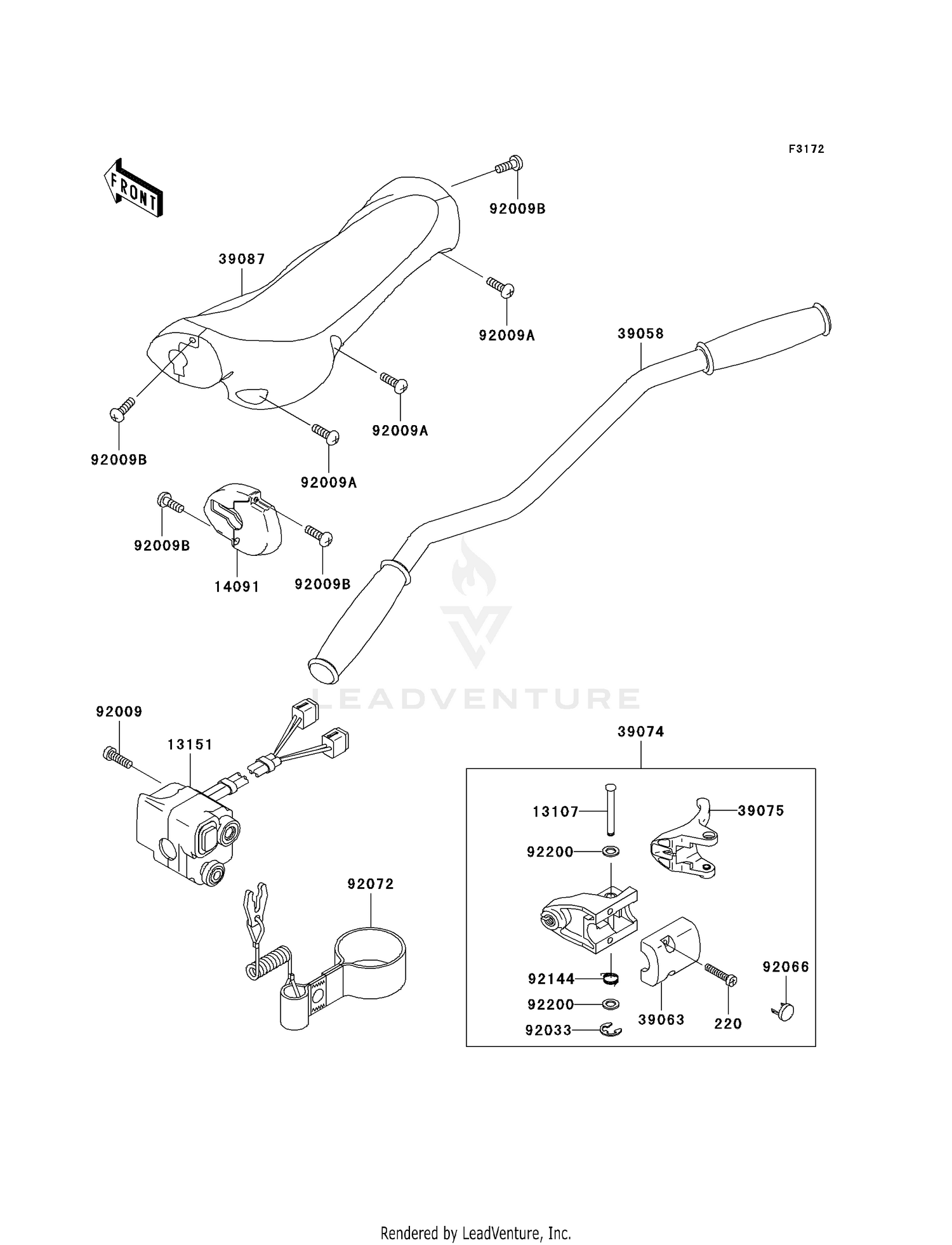

HANDLEBAR
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 220 | 220R0635 | SCREW-PAN-CROSS Price: $2.97 |
| 13107 | 13107-3766 | SHAFT Price: $9.52 |
| 13151 | 13151-3733 | SWITCH-COMP,STOP&STAR Price: $444.66 |
| 14091 | 14091-3752-6Z | COVER,F.BLACK Price: $42.77 |
| 39058 | 39058-3736-6Z | HANDLE-COMP,F.BLACK Price: $227.98 |
| 39063 | 39063-3724 | HOUSING-CONTROL Price: $25.91 |
| 39074 | 39074-3722 | LEVER-ASSY-THROTTLE Price: $142.55 |
| 39075 | 39075-3715 | LEVER-THROTTLE Price: $40.86 |
| 39087 | 39087-3729-MA | PAD-HANDLE,BLACK Price: $231.05 |
| 92009 | 92009-3836 | SCREW,5X30 Price: $4.18 |
| 92009A | 92009-3851 | SCREW,6X14 Price: $2.75 |
| 92009B | 92009-3853 | SCREW Price: $1.36 |
| 92033 | 92033-3723 | RING-SNAP Price: $3.29 |
| 92066 | 92066-3760 | PLUG Price: $4.74 |
| 92072 | 92072-0891 | BAND,TETHER SWITCH This part replaces 92072-3816. Price: $57.31 |
| 92144 | 92144-3749 | SPRING Price: $4.26 |
