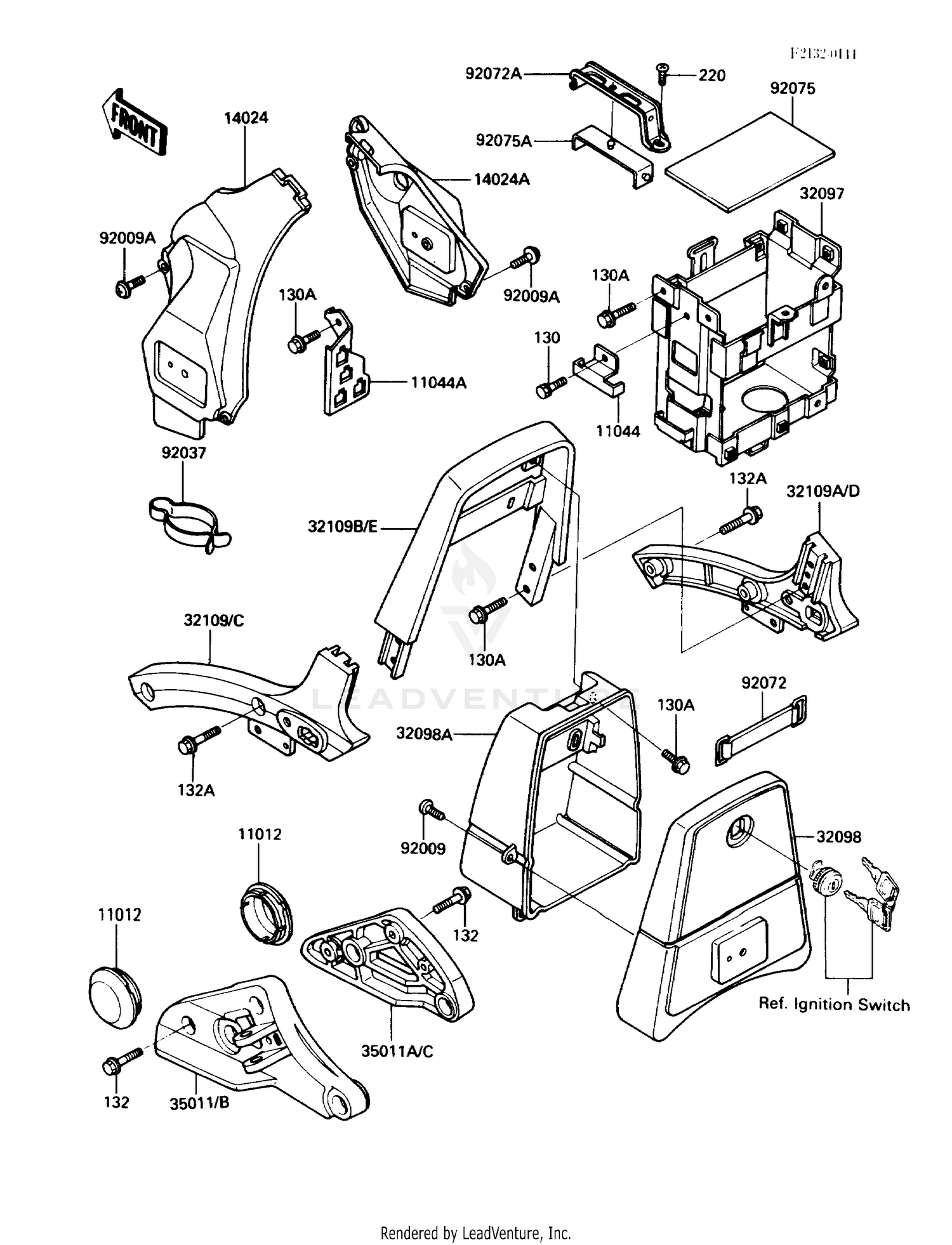

| Ref | Part Number | Description |
|---|
| 130 |
130AA0608 |
BOLT-FLANGED,6X8 This part replaces 130B0608. Price: $0.68 |
| 130A |
130AA0612 |
BOLT-FLANGED,6X12 This part replaces 130D0612. Price: $0.68 |
| 132 |
132E0830 |
BOLT-FLANGED-SMALL,8X30 Price: $5.78 |
| 132A |
132E0835 |
BOLT-FLANGED-SMALL,8X35 Price: $5.52 |
| 11012 |
11012-1433 |
CAP,SWING ARM Price: $21.93 |
| 11044 |
11043-1934 |
BRACKET,JOINT BOX Price: $9.89 |
| 11044A |
11043-1935 |
BRACKET,HARNESS Price: $12.40 |
| 14024 |
14025-1994 |
COVER,FUEL TANK,LH Price: $53.05 |
| 14024A |
14025-1995 |
COVER,FUEL TANK,RH Price: $44.09 |
| 32097 |
32097-1121 |
CASE-BATTERY Price: $130.02 |
| 32098 |
32098-1057 |
CASE-TOOL Price: $73.59 |
| 32098A |
32098-1058 |
CASE-TOOL Price: $49.12 |
| 32109C |
32109-1131 |
GRIP-FRAME,LWR,LH Price: $214.77 |
| 32109D |
32109-1132 |
GRIP-FRAME,LWR,RH Price: $214.77 |
| 32109E |
32109-1133 |
GRIP-FRAME,UPP Price: $248.31 |
| 35011B |
35011-1263 |
STAY,MUFFLER,LH Price: $368.27 |
| 35011C |
35011-1264 |
STAY,MUFFLER,RH Price: $368.27 |
| 92009 |
92009-1264 |
SCREW,TAPPING,5X16 Price: $3.13 |
| 92009A |
92009-1662 |
SCREW,6X14 This part replaces 92009-1288. Price: $3.92 |
| 92037 |
92037-093 |
CLAMP,CABLE Price: $11.37 |
| 92072 |
92072-053 |
BAND,L=82 Price: $12.35 |
| 92072A |
92072-1177 |
BAND,BATTERY Price: $10.62 |
| 92075 |
92075-1076 |
DAMPER Price: $8.86 |
| 92075A |
92075-1371 |
DAMPER,BATTERY BAND Price: $11.49 |
