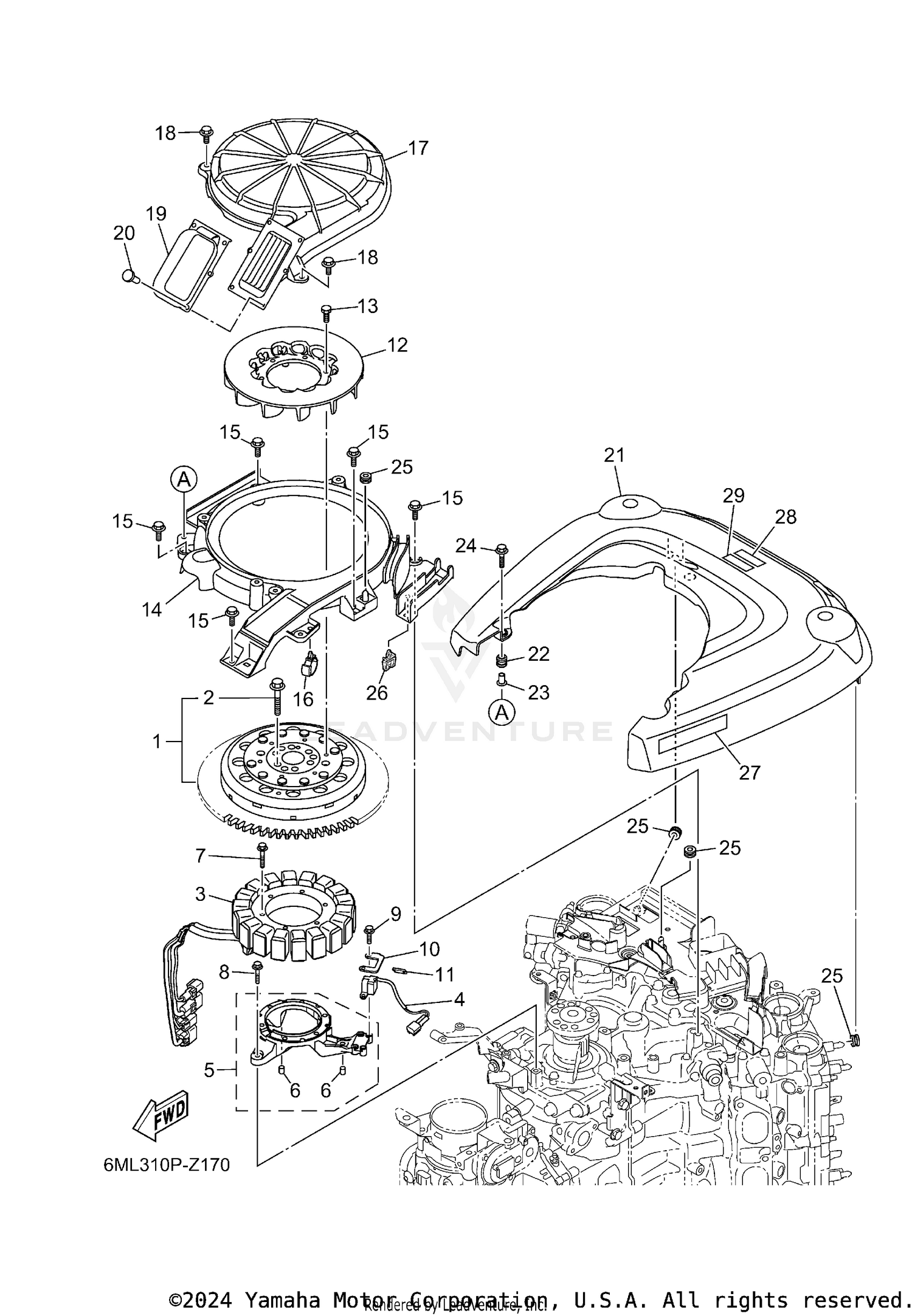

| Ref | Part Number | Description |
|---|
| 1 |
6ML-W8145-00-00 |
ROTOR ASSY WITH BOLTS Price: $1,673.70 |
| 2 |
6EK-W9010-00-00 |
BOLT SET Price: $79.90 |
| 3 |
6ML-81410-00-00 |
STATOR ASSY Price: $896.55 |
| 4 |
6CB-85580-01-00 |
COIL, PULSER Price: $98.10 |
| 5 |
6CB-85561-00-00 |
BASE, MAGNETO Price: $129.85 |
| 6 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 7 |
95022-06035-00 |
BOLT, FLANGE Price: $3.85 |
| 8 |
95D95-06030-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 9 |
97595-05520-00 |
BOLT, WITH WASHER This part replaces 90119-05M03-00. Price: $4.75 |
| 10 |
6ML-85592-00-00 |
STAY, PULSER Price: $9.25 |
| 11 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 12 |
6ML-85586-00-00 |
FAN Price: $52.85 |
| 13 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
| 14 |
6ML-12651-10-00 |
AIR SHROUD, CYLINDER 1 Price: $83.20 |
| 15 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 16 |
90464-12183-00 |
CLAMP Price: $3.50 |
| 17 |
6ML-12653-10-00 |
AIR SHROUD, CYLINDER 3 Price: $60.90 |
| 18 |
95D95-06012-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 19 |
6ML-12659-00-00 |
DAMPER, AIR SHROUD 2 Price: $114.95 |
| 20 |
90269-05001-00 |
RIVET Price: $3.50 |
| 21 |
6ML-81942-00-00 |
COVER Price: $95.05 |
| 22 |
6A0-82317-01-00 |
DAMPER, IGNITION C Price: $7.10 |
| 23 |
90387-06119-00 |
COLLAR Price: $4.80 |
| 24 |
95D95-06025-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 25 |
90480-12X00-00 |
GROMMET This part replaces 90480-12314-00. Price: $1.25 |
| 26 |
90464-11121-00 |
CLAMP Price: $3.20 |
| 27 |
6ML-13437-60-00 |
MARK, CAUTION Price: $9.95 |
| 28 |
6EE-81994-41-00 |
LABEL, SAFETY Price: $24.35 |
