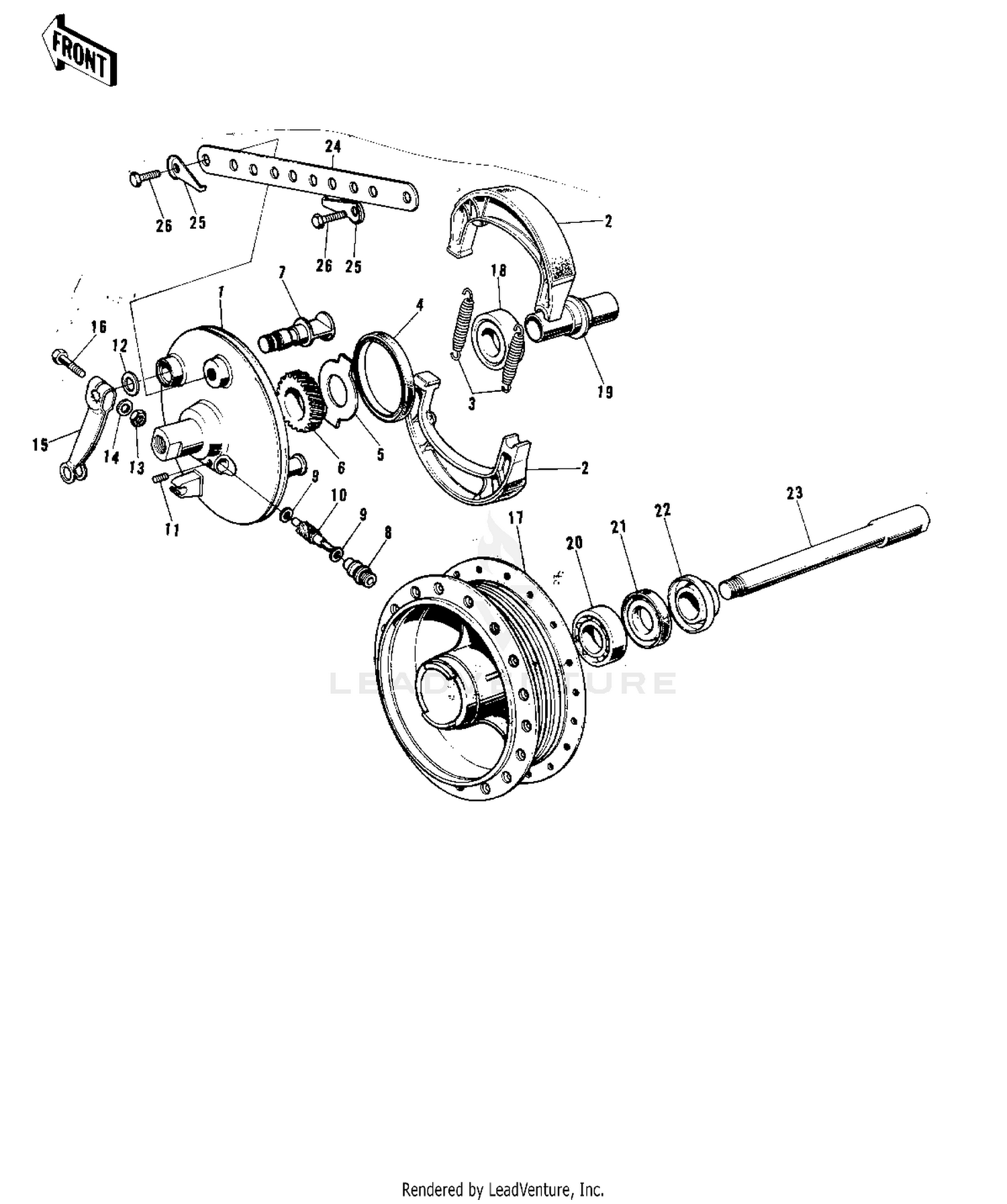

| Ref | Part Number | Description |
|---|
| 1 |
41043-025 |
PANEL-FRONT BRAKE Price: $65.37 |
| 2 |
41048-1107 |
SHOE-BRAKE This part replaces 42019-011. Price: $37.39 |
| 3 |
42020-004 |
SPRING-BRAKE SHOE Price: $8.51 |
| 4 |
92050-010 |
OIL SEAL F BRK PANEL Price: $20.98 |
| 5 |
41064-003 |
RECIEVER GEAR Price: $8.06 |
| 7 |
42026-021 |
CAM SHAFT,REAR BRAKE Price: $22.25 |
| 8 |
41062-001 |
BUSH SPEEDMETER CABLE Price: $10.59 |
| 9 |
41063-001 |
WASHER,5.1X9X0.4 Price: $4.69 |
| 10 |
41060-010 |
PINION-SPEEDOMETER Price: $16.29 |
| 11 |
41070-004 |
SCREW-BUSHING NET Price: $0.72 |
| 11 |
41082-001 |
PIN,SPRING Price: $3.92 |
| 12 |
41051-001 |
SEAL,BRAKE CAM Price: $4.26 |
| 13 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 14 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 15 |
42029-037 |
LEVER,REAR BRAKE CAM Price: $36.94 |
| 16 |
110R0635 |
BOLT 6X35 Price: $5.96 |
| 16 |
112BA0635 |
BOLT-UPSET,6X35 This part replaces 112G0635. Price: $3.90 |
| 18 |
601B6202Z |
BEARING BALL #6202Z Price: $18.63 |
| 19 |
41039-004 |
SPACER FR HUB BEARING Price: $9.58 |
| 20 |
601B6202 |
BEARING-BALL,#6202C3 Price: $8.64 |
| 21 |
92050-008 |
OIL SEAL RR BRK DRUM Price: $13.82 |
| 22 |
41069-004 |
COLLAR FRONT HUB R.H Price: $6.31 |
| 23 |
41068-029 |
AXLE-FRONT Price: $26.75 |
| 24 |
43007-022 |
TORQUE LINK-FRNT BRK Price: $13.98 |
| 25 |
92088-012 |
WASHER-LOCK Price: $6.96 |
