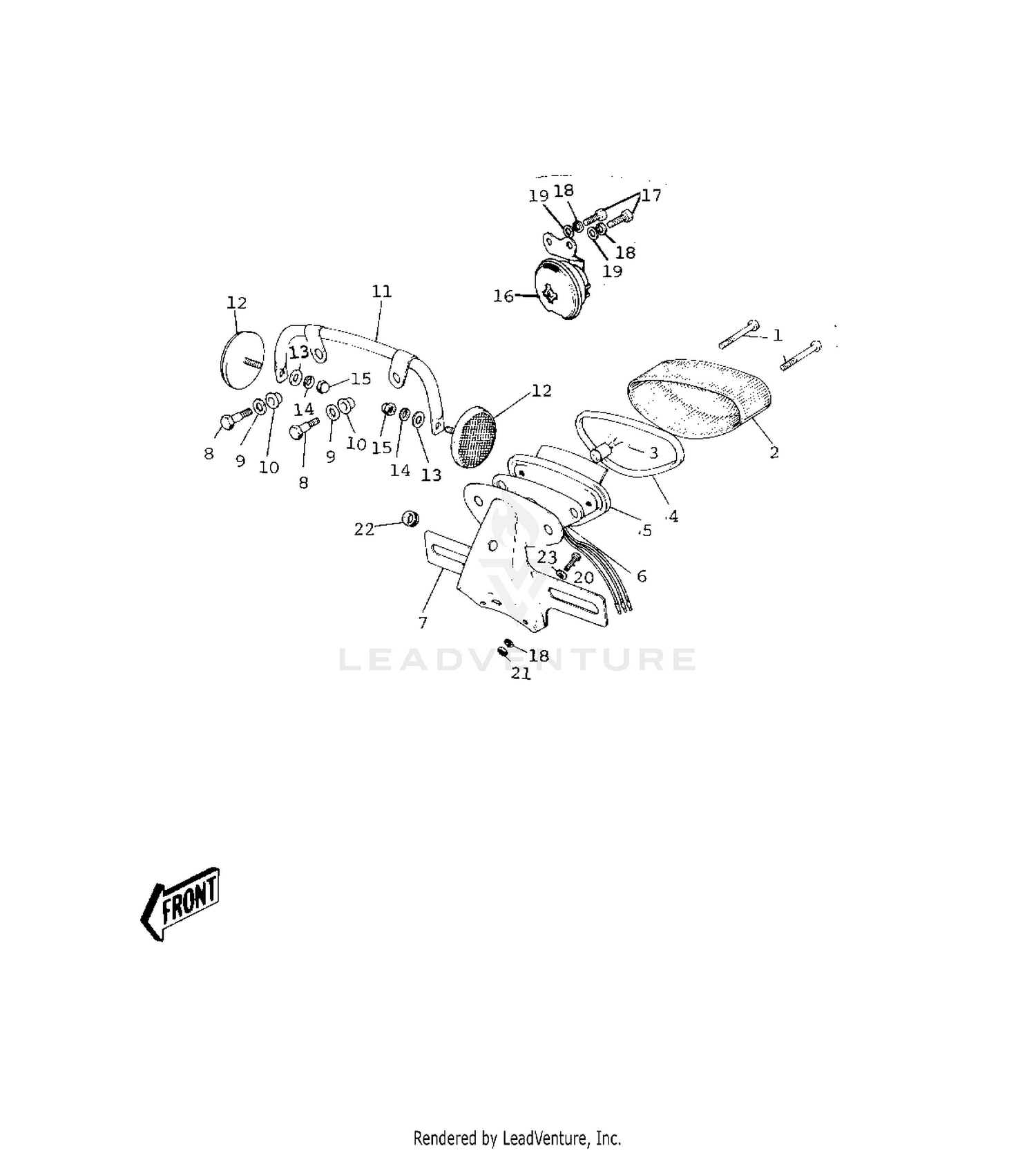

| Ref | Part Number | Description |
|---|
| 1 |
220R0455 |
SCREW Price: $5.03 |
| 2 |
23026-022 |
LENS-TAIL LAMP Price: $94.58 |
| 3 |
92069-023 |
BULB 6V 3/21CP Price: $10.08 |
| 4 |
23028-016 |
GASKET-TAIL LAMP LENS Price: $10.56 |
| 5 |
23027-029 |
CASE-TAIL LAMP Price: $41.02 |
| 6 |
23028-015 |
GASKET-TAIL LAMP CASE Price: $9.74 |
| 7 |
23036-014-21 |
BKT-LICENSE PLT,BLACK Price: $39.76 |
| 8 |
92001-111 |
BOLT Price: $2.43 |
| 9 |
92022-1561 |
WASHER,8.5X20X1.6 Price: $4.31 |
| 10 |
92075-091 |
DAMPER RUBBER Price: $2.73 |
| 11 |
28013-002 |
BRACKET-REFLECTOR Price: $16.60 |
| 12 |
28012-008 |
REFLECTOR-REFLEX,REAR Price: $13.07 |
| 13 |
410AA0500 |
WASHER-PLAIN-SMALL This part replaces 411B0500. Price: $0.47 |
| 14 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 15 |
322N0500 |
NUT-CAP,5MM Price: $4.06 |
| 16 |
27003-059 |
HORN Price: $45.32 |
| 17 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 18 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 19 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 20 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 21 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 22 |
92071-019 |
GROMMET HARNESS 10MM Price: $3.89 |
