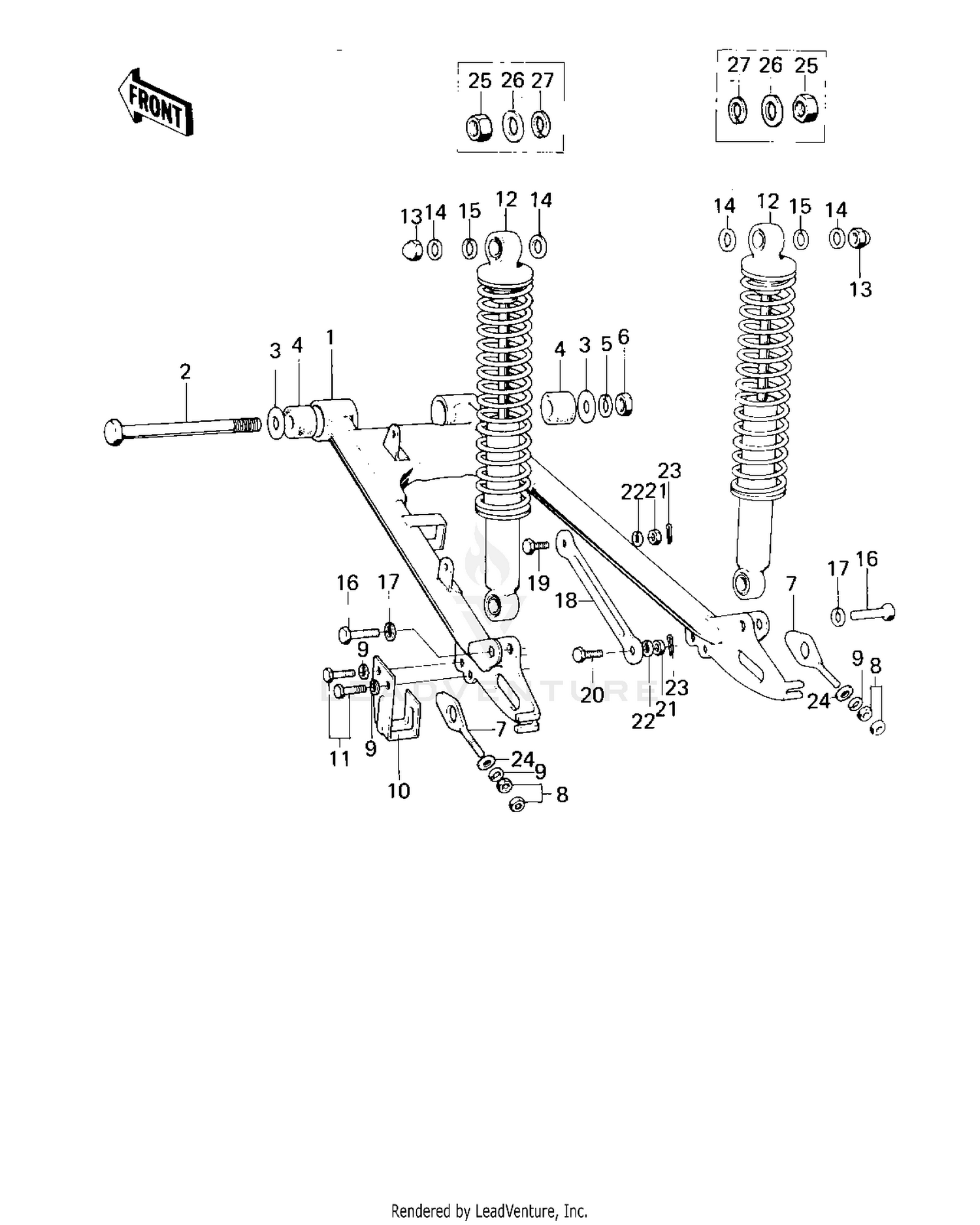

| Ref | Part Number | Description |
|---|
| 2 |
33032-043 |
SHAFT,SWING ARM PIVOT Price: $28.34 |
| 3 |
410AA1200 |
WASHER-PLAIN-SMALL,12MM This part replaces 410B1200. Price: $0.72 |
| 4 |
92092-005 |
BUSHING-RUBBER Price: $14.10 |
| 5 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 6 |
92015-1381 |
NUT,12MM This part replaces 314B1200. Price: $2.67 |
| 7 |
33040-008 |
ADJUSTER CHAIN Price: $10.48 |
| 8 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 9 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 10 |
55020-012 |
GUARD,CHAIN Price: $9.13 |
| 11 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 17 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 18 |
43007-037 |
TORQUE LINK,RR BRAKE Price: $13.71 |
| 19 |
92003-017 |
BOLT TORQUE LINK FIT Price: $5.68 |
| 20 |
92150-1872 |
BOLT,10X32 This part replaces 92003-003. Price: $6.22 |
| 21 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 22 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
