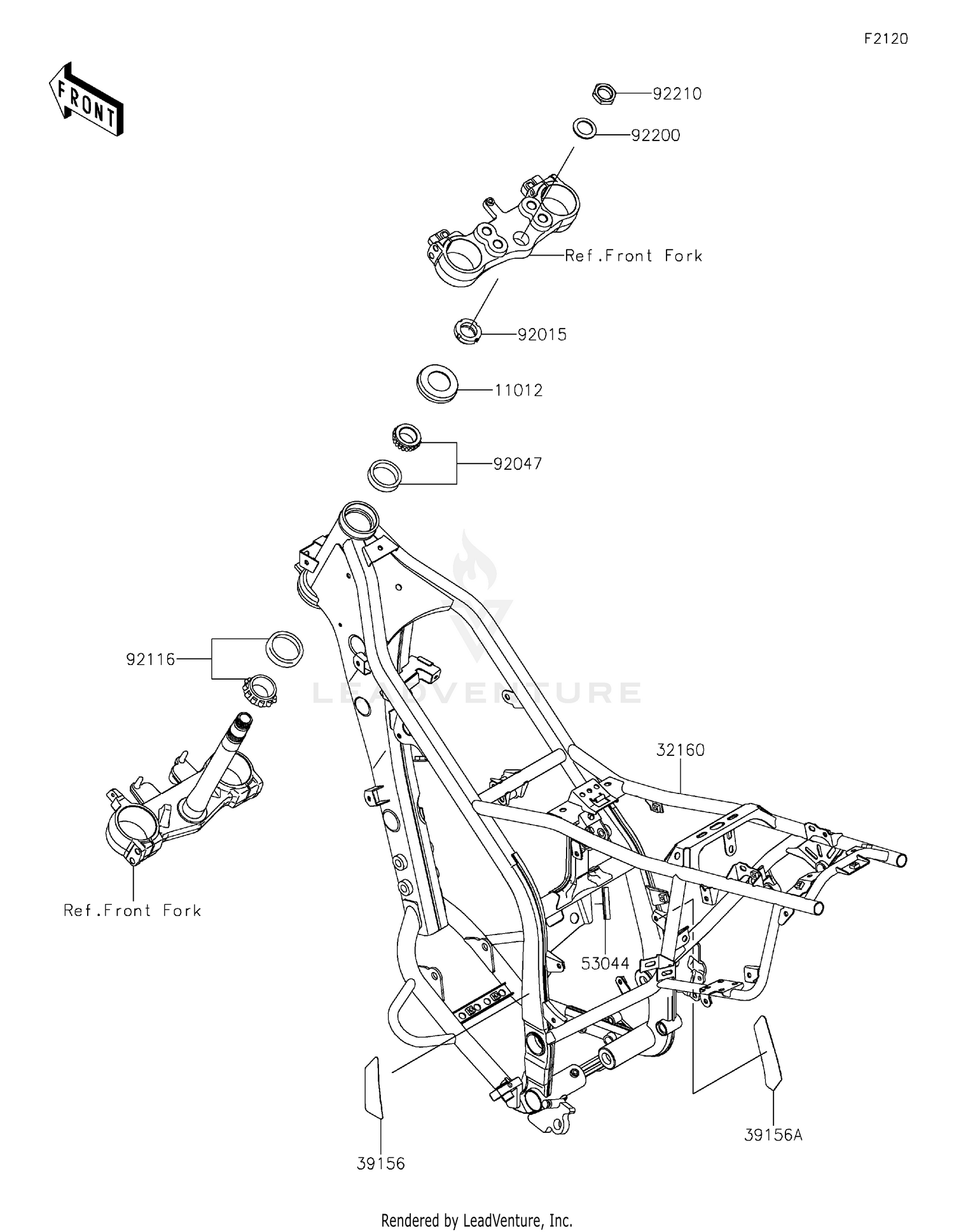

Frame
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 11012 | 11012-1762 | CAP,STEERING STEM Price: $6.16 |
| 32160 | 32160-1832-458 | FRAME-COMP,P.SILVER Price: $1,590.63 |
| 39156 | 39156-2529 | PAD,FRAME,LH Price: $18.28 |
| 39156A | 39156-2530 | PAD,FRAME,RH Price: $22.14 |
| 53044 | 53044-0644 | TRIM,45MM Price: $5.59 |
| 92015 | 92015-1546 | NUT,25MM,T=12 Price: $20.96 |
| 92047 | 92047-017 | RACE,ROLLER,32005JR RS Price: $43.75 |
| 92116 | 92116-1069 | BEARING-ROLLER,HI-CAP32006JRRS Price: $64.45 |
| 92200 | 92200-0517 | WASHER,STEERING STEM Price: $7.60 |
