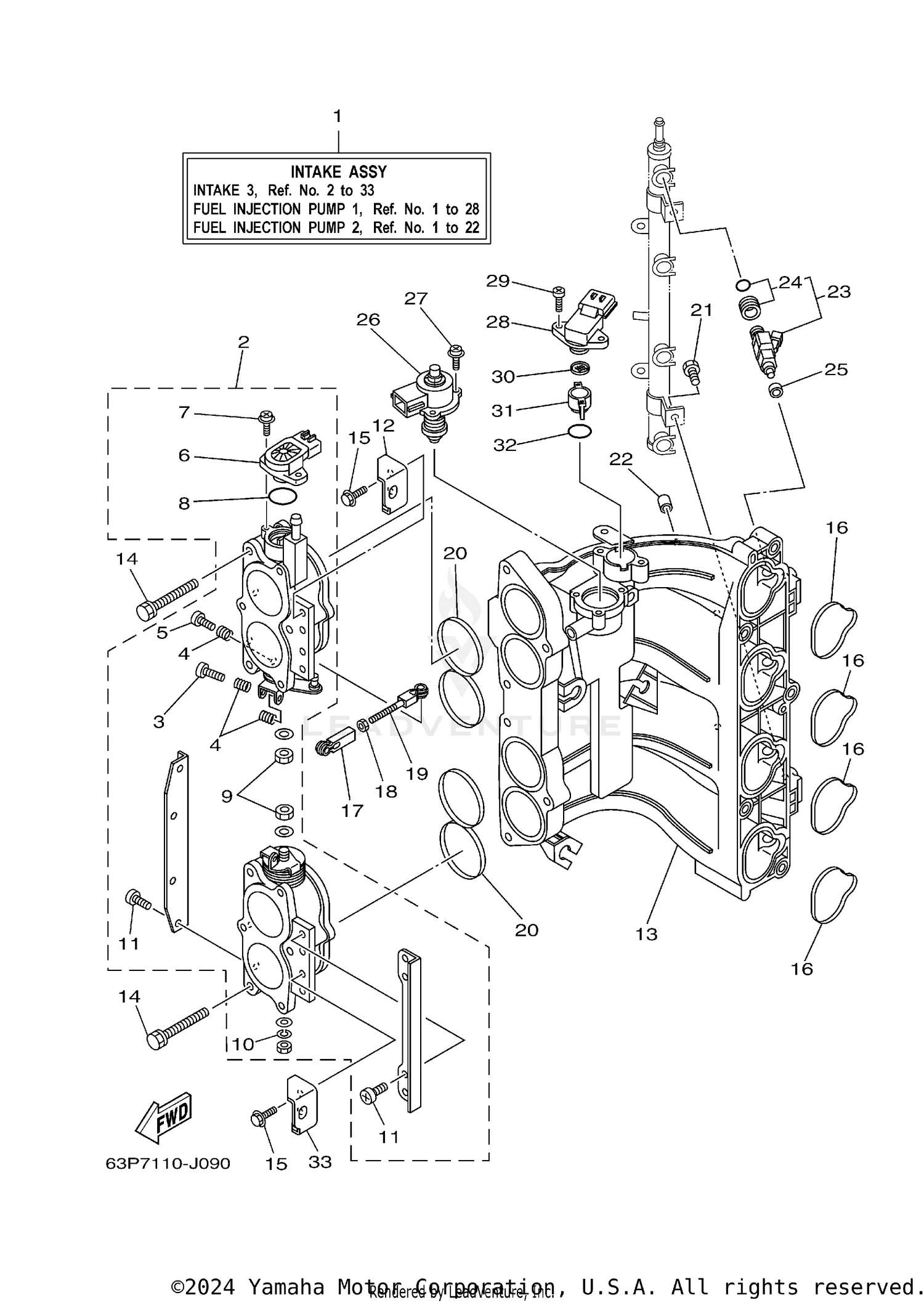

| Ref | Part Number | Description |
|---|
| 1 |
63P-14200-24-00 |
INTAKE ASSY This part replaces 63P-14200-21-00. Price: $3,808.45 |
| 2 |
63P-13751-02-00 |
BODY, THROTTLE 1 This part replaces 63P-13751-01-00. Price: $1,285.55 |
| 3 |
69J-14321-00-00 |
SCREW, THROTTLE Price: $14.35 |
| 4 |
68V-14331-00-00 |
SPRING, THROTTLE VALVE Price: $11.15 |
| 5 |
68V-14323-00-00 |
SCREW, AIR ADJUSTING Price: $22.10 |
| 7 |
68V-81145-01-00 |
SCREW 1 Price: $6.60 |
| 8 |
68V-8182L-00-00 |
O-RING 1 Price: $15.55 |
| 9 |
3CF-14594-00-00 |
NUT Price: $2.49 |
| 10 |
68V-14356-00-00 |
WASHER, SPRING Price: $5.55 |
| 11 |
68V-14565-00-00 |
SCREW Price: $7.90 |
| 12 |
63P-14291-00-00 |
BRACKET 1 Price: $57.80 |
| 13 |
63P-13641-00-00 |
MANIFOLD, INTAKE 1 Price: $682.50 |
| 14 |
63P-14496-00-00 |
BOLT Price: $23.15 |
| 15 |
97E95-06516-00 |
BOLT, HEXAGON W/W This part replaces 97595-06516-00. Price: $4.20 |
| 16 |
63P-13645-00-00 |
GASKET, MANIFOLD 1 Price: $21.35 |
| 17 |
6H4-41237-00-00 |
JOINT, LINK Price: $11.10 |
| 18 |
95380-05700-00 |
NUT Price: $5.50 |
| 19 |
682-41238-01-00 |
JOINT, LINK Price: $9.35 |
| 20 |
63P-13557-00-00 |
GASKET Price: $50.90 |
| 21 |
63P-14446-00-00 |
BOLT Price: $9.45 |
| 22 |
84M-14169-00-00 |
CAP This part replaces 63P-13643-00-00. Price: $16.49 |
| 23 |
63P-13761-01-00 |
INJECTOR This part replaces 63P-13761-00-00. Price: $172.75 |
| 24 |
68V-1410B-00-00 |
PACKING KIT Price: $16.10 |
| 25 |
68V-13766-00-00 |
RUBBER, INJECTOR Price: $14.60 |
| 26 |
63P-1312A-02-00 |
VALVE, CONTROL This part replaces 63P-1312A-01-00. Price: $435.65 |
| 27 |
68V-81146-01-00 |
SCREW 2 Price: $6.25 |
| 28 |
63P-82380-00-00 |
SENSOR, PRESSURE Price: $317.70 |
| 29 |
68V-81147-00-00 |
SCREW 3 Price: $6.75 |
| 30 |
63P-13905-00-00 |
FILTER COMP. Price: $2.55 |
| 31 |
63P-13898-00-00 |
HOLDER Price: $13.00 |
| 32 |
63P-13769-00-00 |
O-RING Price: $17.70 |
