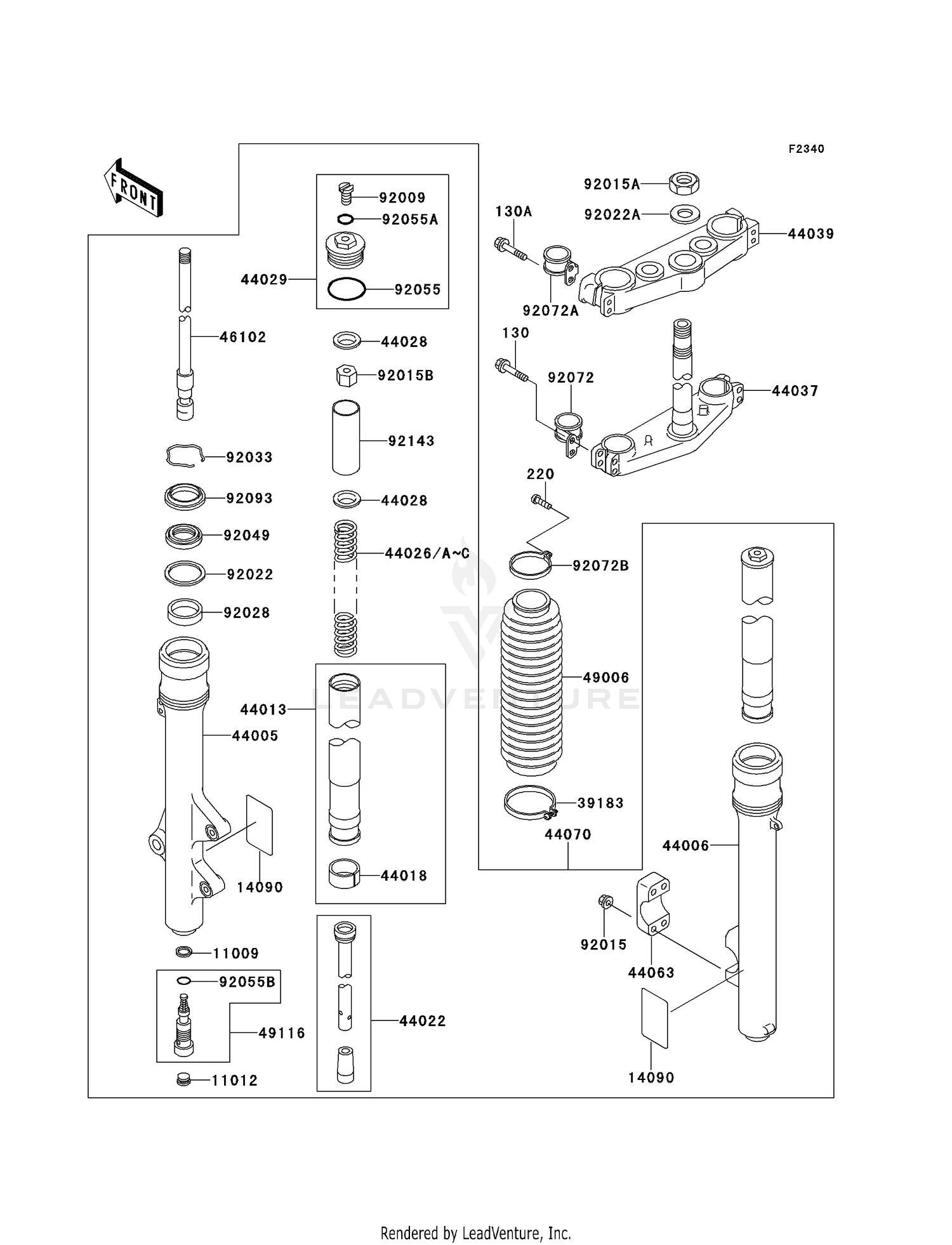

| Ref | Part Number | Description |
|---|
| 130 |
130BA0845 |
BOLT-FLANGED,8X45 This part replaces 130G0845. Price: $1.61 |
| 130A |
130BA0850 |
BOLT-FLANGED,8X50 This part replaces 130G0850. Price: $2.25 |
| 220 |
220AA0416 |
SCREW-PAN-CROS This part replaces 220B0416. Price: $1.78 |
| 11009 |
11009-1592 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 11012 |
11012-1381 |
CAP,FORK CYLINDER Price: $6.11 |
| 14090 |
14090-1564 |
COVER Price: $6.07 |
| 39183 |
39183-1060 |
BAND-ASSY,BOOT Price: $11.07 |
| 44005 |
44005-1345 |
PIPE-LEFT FORK OUTER Price: $435.87 |
| 44006 |
44006-1343 |
PIPE-RIGHT FORK OUTER Price: $393.48 |
| 44013 |
44013-1403 |
PIPE-FORK INNER Price: $517.29 |
| 44018 |
44018-1056 |
PISTON-FORK,INNER PIPE Price: $28.45 |
| 44022 |
44022-1299 |
CYLINDER-FORK Price: $148.33 |
| 44026 |
44026-1570 |
SPRING-FRONT FORK,K=0 Price: $85.07 |
| 44028 |
44028-1010 |
GUIDE-FORK SPRING Price: $11.30 |
| 44029 |
44029-1152 |
SEAT-FORK SPRING Price: $67.65 |
| 44037 |
44037-1369 |
HOLDER-FORK UNDER This part replaces 44037-1331. Price: $751.54 |
| 44039 |
44039-1256 |
HOLDER-FORK UPPER Price: $325.96 |
| 44063 |
44063-1056 |
HOLDER-FRONT AXLE Price: $55.31 |
| 44070 |
44070-1576 |
DAMPER-ASSY,FORK SET This part replaces 44070-1369. Price: $1,412.82 |
| 46102 |
46102-1376 |
ROD,FORK Price: $312.12 |
| 49006 |
49006-1296-VW |
BOOT,FORK,J.S.VIOLET Price: $102.37 |
| 49116 |
49116-1132 |
VALVE-ASSY,FORK Price: $195.65 |
| 92009 |
92009-1568 |
SCREW Price: $7.21 |
| 92015 |
92210-0630 |
NUT,FLANGED,6MM This part replaces 92015-1078. Price: $2.00 |
| 92015A |
92210-1521 |
NUT,STEERING STEM,22MM This part replaces 92015-1653. Price: $16.69 |
| 92015B |
92015-1839 |
NUT Price: $19.64 |
| 92022 |
92022-1299 |
WASHER Price: $8.58 |
| 92022A |
92022-1873 |
WASHER,STEERING STEM Price: $7.45 |
| 92028 |
92028-1581 |
BUSHING Price: $21.80 |
| 92033 |
92033-1077 |
RING-SNAP Price: $4.96 |
| 92049 |
92049-1373 |
SEAL-OIL This part replaces 92049-1316. Price: $28.98 |
| 92055 |
92055-1123 |
RING-O Price: $6.22 |
| 92055A |
92055-1441 |
RING-O,2.8X6.6X1.9 Price: $2.93 |
| 92055B |
92055-1502 |
RING-O,FORK VALVE Price: $7.45 |
| 92072 |
92072-1166 |
BAND Price: $27.29 |
| 92072A |
92072-1268 |
BAND Price: $23.46 |
| 92072B |
92072-1316 |
BAND,BOOT Price: $11.49 |
| 92093 |
92093-1260 |
SEAL,FORK DUST Price: $27.10 |
