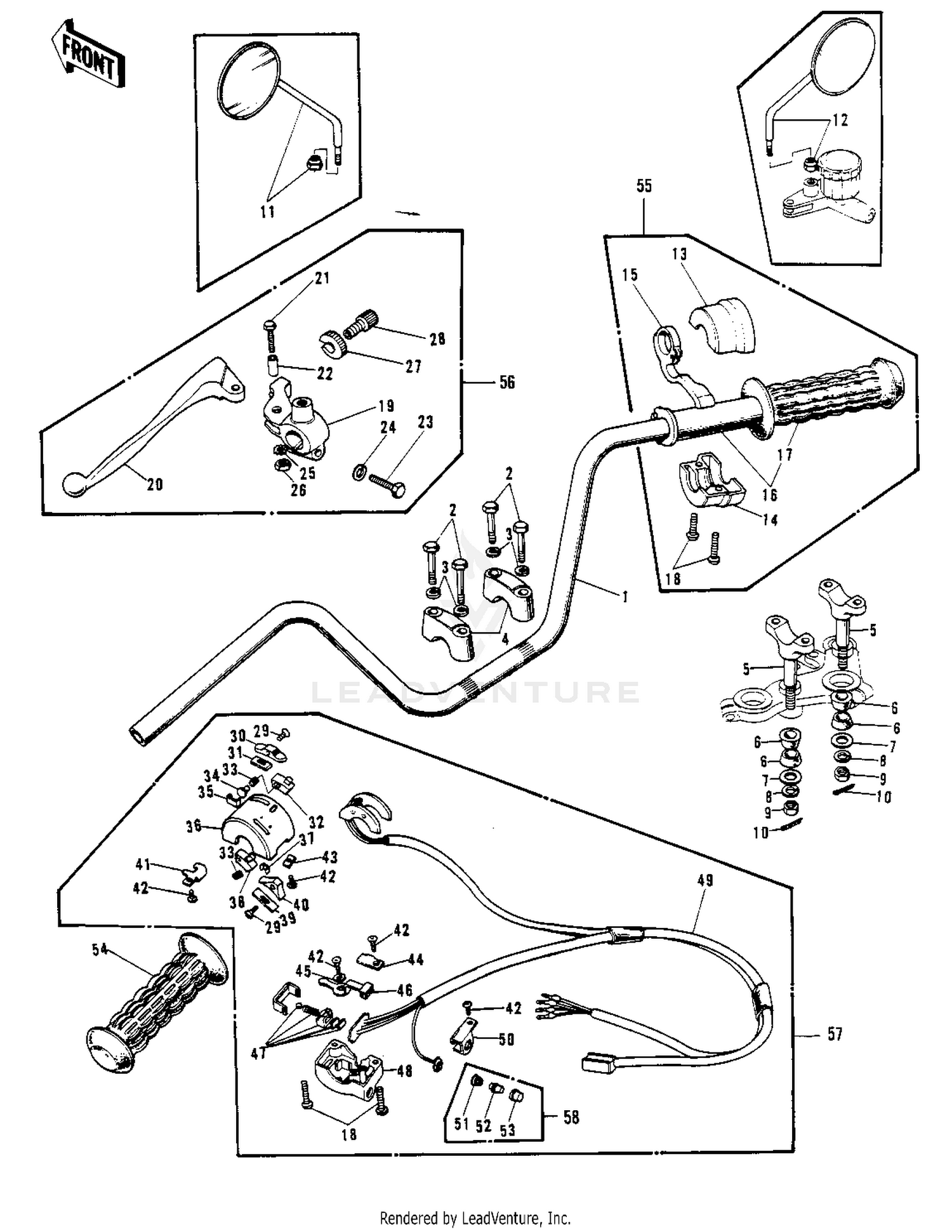

| Ref | Part Number | Description |
|---|
| 1 |
46003-025 |
HANDLEBAR Price: $74.62 |
| 2 |
92001-1405 |
BOLT 8X38 Price: $16.50 |
| 3 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 4 |
46012-008 |
HOLDER-HANDLEBAR Price: $37.74 |
| 5 |
46012-010 |
HOLDER-HANDLEBAR LOW Price: $30.76 |
| 6 |
92075-275 |
DAMPER RUBBER,HANDLE Price: $11.03 |
| 7 |
92022-196 |
WASHER-HANDLEBAR FIT Price: $4.63 |
| 8 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 9 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 10 |
550AA2520 |
PIN-COTTER,2.5X20 This part replaces 550D2520. Price: $1.36 |
| 11 |
56003-009 |
REAR VIEW MIRROR,L.H Price: $67.12 |
| 12 |
56002-020 |
REAR VIEW MIRROR,R.H Price: $67.12 |
| 13 |
46023-006 |
CASE-R.H LOWER Price: $12.18 |
| 14 |
46023-006 |
CASE-R.H LOWER Price: $12.18 |
| 15 |
46096-007 |
LEVER-STARTER Price: $12.48 |
| 17 |
46061-012 |
RUBBER-R.H GRIP Price: $35.79 |
| 18 |
20B0522A |
UNAVAILABLE IN PRICE BOOK Price: Call Us |
| 20 |
46092-015 |
LEVER-CLUTCH Price: $20.99 |
| 21 |
92007-020 |
BOLT HEX HEAD 5X20 Price: $6.37 |
| 22 |
46059-011 |
COLLAR LEVER Price: $8.03 |
| 23 |
112N0625 |
BOLT-UPSET This part replaces 110N0625. Price: $5.86 |
| 24 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 25 |
464EA0500 |
WASHER-TOOTHED This part replaces 464H0500. Price: $1.01 |
| 26 |
312AA0500 |
NUT-HEX,5MM This part replaces 312B0500. Price: $0.47 |
| 27 |
46056-005 |
NUT,CABLE ADJUST LOCK,8MM Price: $8.86 |
| 28 |
46055-006 |
SCREW ADJUST Price: $30.18 |
| 29 |
221B0308A |
SCREW CNTSNK HD 3X8 Price: $5.98 |
| 30 |
46044-008 |
KNOB-L.H SWITCH,B Price: $5.58 |
| 31 |
46031-006 |
SPRING-L.H SW KNOB,B Price: $4.83 |
| 32 |
46089-005 |
SWITCH-L.H,A Price: $7.39 |
| 33 |
46031-007 |
SPRING-L.H SWITCH Price: $2.63 |
| 34 |
46079-004 |
CONTACT-L.H SWITCH Price: $1.92 |
| 35 |
46080-004 |
PLATE-L.H SW CNTACT,B Price: $4.71 |
| 36 |
46086-014 |
CASE-L.H UPPER Price: $13.79 |
| 37 |
46080-003 |
PLATE-L.H SW CNTACT,A Price: $4.82 |
| 38 |
46089-006 |
SWITCH-L.H,B Price: $7.39 |
| 39 |
46031-003 |
SPRING L.H SW KNOB Price: $1.92 |
| 40 |
46044-011 |
KNOB-L.H SWITCH Price: $8.72 |
| 41 |
46085-018 |
HOLDER-L.H SW UPPER,A Price: $1.73 |
| 42 |
92009-1123 |
SCREW,3X5 This part replaces 220B0305A. Price: $0.59 |
| 43 |
46085-019 |
HOLDER-L.H SW UPPER,B Price: $0.94 |
| 44 |
46085-016 |
HOLDER-L.H SW LOWER,A Price: $3.85 |
| 45 |
92095-010 |
WASHER Price: $3.64 |
| 46 |
46044-007 |
KNOB-SWITCH Price: $9.78 |
| 47 |
46089-007 |
SLIDE BLOCK AY-L.H SW Price: $16.24 |
| 48 |
46077-016 |
CASE-L.H LOWER Price: $26.09 |
| 49 |
46082-018 |
WIRING HARNESS-L.H SW Price: $50.76 |
| 50 |
46085-017 |
HOLDER-L.H SW LOWER,B Price: $1.23 |
| 51 |
27010-1009 |
SWITCH ASSY,HORN BUTN Price: $9.20 |
| 52 |
27010-1009 |
SWITCH ASSY,HORN BUTN Price: $9.20 |
| 53 |
27010-1009 |
SWITCH ASSY,HORN BUTN Price: $9.20 |
| 54 |
46075-017 |
RUBBER-L.H GRIP Price: $33.73 |
| 56 |
46076-026 |
LEVER ASSY-CLUTCH Price: $42.99 |
| 57 |
46091-005 |
CASE ASSY-L.H Price: $57.77 |
