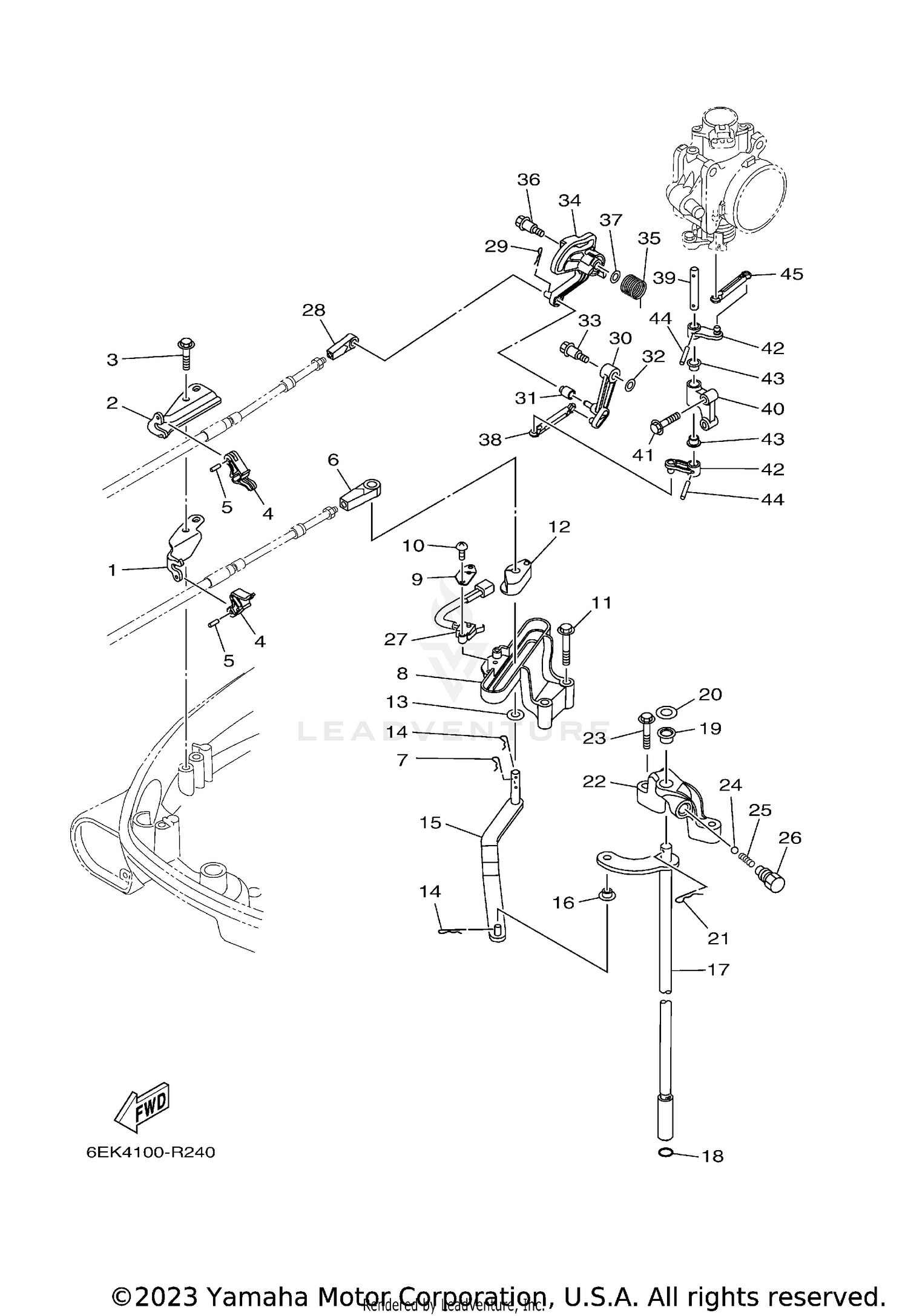

| Ref | Part Number | Description |
|---|
| 1 |
6EK-48531-01-00 |
BRACKET, REMOTE CONTROL 1 Price: $29.85 |
| 2 |
6EK-48532-00-00 |
BRACKET, REMOTE CONTROL 2 Price: $12.35 |
| 3 |
90109-06M81-00 |
BOLT Price: $2.70 |
| 4 |
6EK-48538-00-00 |
CLAMP, CABLE 1 Price: $3.15 |
| 5 |
91690-30010-00 |
PIN, SPRING Price: $6.15 |
| 6 |
6E5-48344-00-00 |
CABLE END, REMOTE CONTROL Price: $14.05 |
| 7 |
90468-18008-00 |
CLIP Price: $1.55 |
| 8 |
6EK-44117-01-00 |
BRACKET Price: $32.85 |
| 11 |
95D75-06040-00 |
BOLT, FLANGE DEEP RE Price: $1.35 |
| 12 |
63P-44122-00-00 |
BUSHING, SHIFT ROD LEVER Price: $6.40 |
| 13 |
90202-08M20-00 |
WASHER, PLATE Price: $6.40 |
| 14 |
90468-18008-00 |
CLIP Price: $1.55 |
| 15 |
6EK-44121-00-00 |
LEVER, SHIFT ROD Price: $38.45 |
| 16 |
90386-06M12-00 |
BUSH Price: $10.10 |
| 18 |
93210-09350-00 |
O-RING This part replaces 93210-09165-00. Price: $7.49 |
| 19 |
90386-10001-00 |
BUSH Price: $3.00 |
| 20 |
90201-11008-00 |
WASHER, PLATE Price: $12.15 |
| 21 |
90468-180A0-00 |
CLIP Price: $3.55 |
| 22 |
6EK-44118-00-00 |
BRACKET Price: $27.70 |
| 23 |
95D95-06030-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 24 |
93501-04M02-00 |
BALL Price: $2.10 |
| 25 |
90501-12082-00 |
SPRING, COMPRESSION Price: $6.60 |
| 26 |
648-42715-00-00 |
BUSHING Price: $15.40 |
| 28 |
6E5-48344-00-00 |
CABLE END, REMOTE CONTROL Price: $14.05 |
| 29 |
90468-18008-00 |
CLIP Price: $1.55 |
| 30 |
6EK-42154-00-00 |
LEVER, THROTTLE CONTROL Price: $8.95 |
| 31 |
68V-42171-00-00 |
BUSHING Price: $7.90 |
| 32 |
90201-06M08-00 |
WASHER, PLATE This part replaces 90201-06M05-00. Price: $2.50 |
| 33 |
90109-06288-00 |
BOLT Price: $3.45 |
| 34 |
6EK-41213-00-00 |
CAM, ACCEL. Price: $7.90 |
| 35 |
6EK-44135-00-00 |
SPRING Price: $2.70 |
| 36 |
90109-06288-00 |
BOLT Price: $3.45 |
| 37 |
90201-06M08-00 |
WASHER, PLATE This part replaces 90201-06M05-00. Price: $2.50 |
| 38 |
6EK-41237-10-00 |
JOINT, LINK Price: $3.80 |
| 39 |
6EK-41635-00-00 |
SHAFT, LINK CONNECTING Price: $14.35 |
| 40 |
6EK-41662-00-00 |
BRACKET 2 Price: $18.90 |
| 41 |
95D95-06030-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 42 |
6EK-42157-00-00 |
LEVER, THROTTLE Price: $5.35 |
| 43 |
90386-10001-00 |
BUSH Price: $3.00 |
| 44 |
91690-30018-00 |
PIN, SPRING Price: $6.40 |
