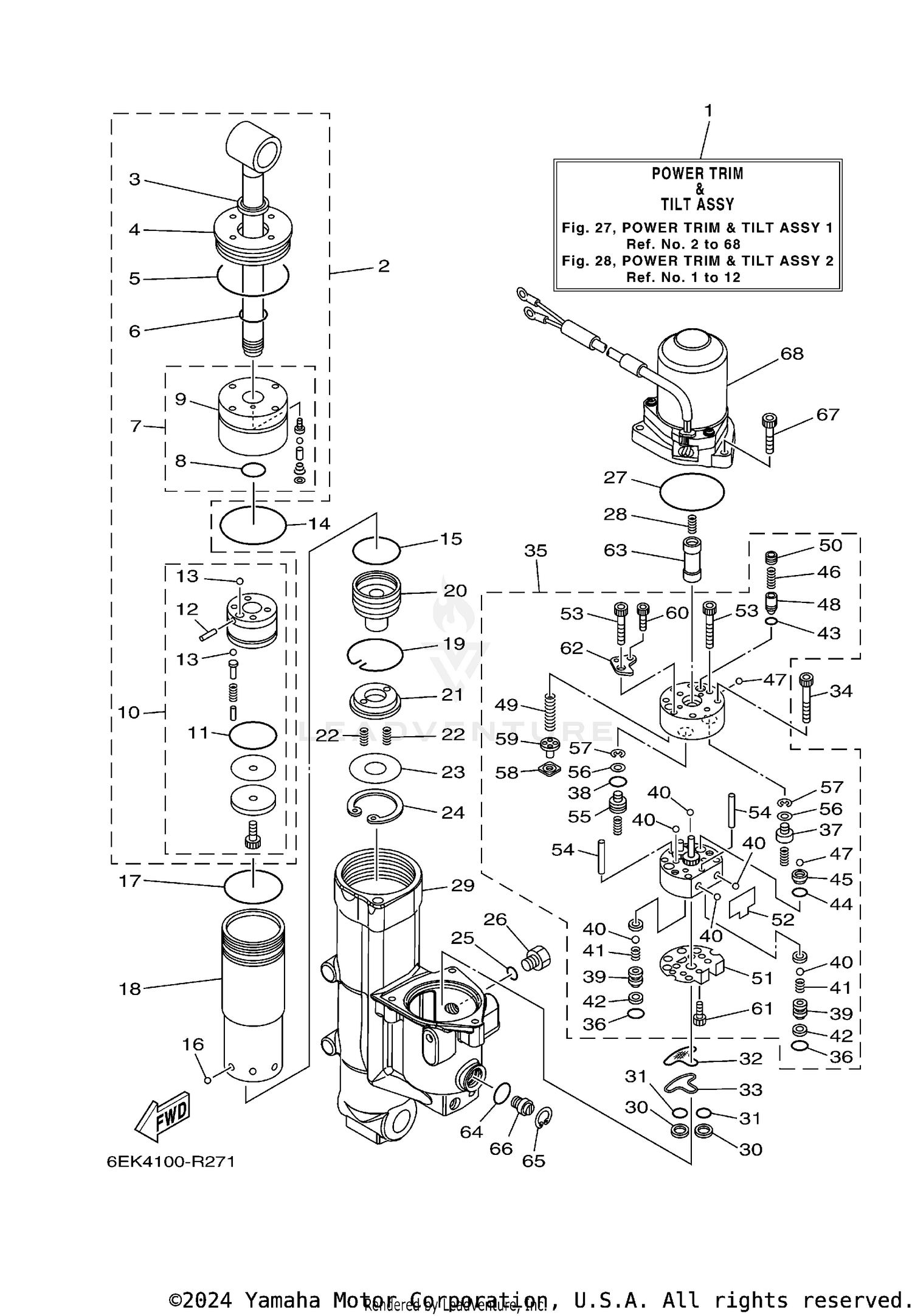

| Ref | Part Number | Description |
|---|
| 1 |
6EK-43800-04-00 |
POWER TRIM & TILT ASSY Price: $2,687.05 |
| 2 |
6EK-43810-00-00 |
TILT PISTON SUB ASSY Price: $321.95 |
| 3 |
6H1-43812-00-00 |
SEAL, DUST Price: $12.55 |
| 4 |
6EK-43821-00-00 |
SCREW, TRIM CYLINDER END Price: $84.80 |
| 5 |
6EK-43861-00-00 |
O-RING Price: $6.60 |
| 6 |
6D8-43861-00-00 |
O-RING Price: $6.60 |
| 7 |
6EK-4380R-00-00 |
CYLINDER END SUB ASSY Price: $77.55 |
| 8 |
6D8-43861-00-00 |
O-RING Price: $6.60 |
| 9 |
6EK-43811-00-00 |
SCREW, CYLINDER END Price: $67.00 |
| 10 |
6EK-4380P-00-00 |
PISTON SUB ASSY Price: $146.75 |
| 11 |
6H1-43862-00-00 |
O-RING Price: $13.45 |
| 12 |
91609-16012-00 |
PIN, SPRING Price: $2.05 |
| 13 |
93505-32038-00 |
BALL Price: $0.50 |
| 14 |
62X-43865-00-00 |
O-RING This part replaces 67F-43865-00-00. Price: $10.40 |
| 15 |
6H1-43862-00-00 |
O-RING Price: $13.45 |
| 16 |
93503-16003-00 |
BALL Price: $2.90 |
| 17 |
7BB-G3861-00-00 |
O-RING Price: $5.05 |
| 18 |
6EK-22471-01-00 |
CYLINDER, SHOCK ABSORBER Price: $132.30 |
| 19 |
6EK-43875-00-00 |
RING, SNAP Price: $1.85 |
| 20 |
6EK-4381B-00-00 |
FREE PISTON SUB ASSY Price: $50.75 |
| 21 |
6EK-43899-00-00 |
PLATE STOPPER Price: $7.40 |
| 22 |
62X-4384H-00-00 |
SPRING Price: $3.55 |
| 23 |
6EK-22434-00-00 |
PLATE, VALVE 1 Price: $4.60 |
| 24 |
99009-47500-00 |
CIRCLIP Price: $10.49 |
| 25 |
93210-09350-00 |
O-RING This part replaces 93210-09165-00. Price: $7.49 |
| 26 |
6EK-43829-00-00 |
PLUG, RESERVOIR Price: $12.45 |
| 27 |
93210-68N50-00 |
O-RING Price: $3.20 |
| 28 |
62X-4384H-00-00 |
SPRING Price: $3.55 |
| 29 |
6EK-4380K-04-00 |
CYLINDER, TILT SUB ASSY Price: $511.95 |
| 30 |
6C5-43817-10-00 |
FILTER 2 This part replaces 6C6-43817-00-00. Price: $6.95 |
| 31 |
69J-4389J-00-00 |
O-RING Price: $3.55 |
| 32 |
6C5-43816-00-00 |
FILTER 1 Price: $16.60 |
| 33 |
6C5-4380G-00-00 |
PLATE Price: $3.55 |
| 34 |
91318-05045-00 |
BOLT Price: $2.05 |
| 35 |
6EK-43830-00-00 |
GEAR PUMP ASSY Price: $318.85 |
| 36 |
69J-4389J-00-00 |
O-RING Price: $3.55 |
| 37 |
6D8-4384M-00-00 |
PISTON, SHUTTLE 2 Price: $7.90 |
| 38 |
6H1-43883-00-00 |
O-RING Price: $3.55 |
| 39 |
6EK-4382E-00-00 |
ADAPTOR 2 Price: $17.00 |
| 40 |
93505-32038-00 |
BALL Price: $0.50 |
| 41 |
6C6-43853-00-00 |
SPRING, MAIN VALVE Price: $2.85 |
| 42 |
6C6-4387G-00-00 |
WASHER Price: $7.45 |
| 43 |
93210-04N51-00 |
O-RING Price: $5.95 |
| 44 |
93210-06519-00 |
O-RING This part replaces 93210-064A5-00. Price: $4.40 |
| 45 |
6D8-43851-00-00 |
SEAT, RELIEF VALVE Price: $6.60 |
| 46 |
6C5-43855-10-00 |
SPRING, UP RELIEF Price: $4.05 |
| 47 |
93501-08001-00 |
BALL Price: $1.15 |
| 48 |
6D8-43844-00-00 |
PIN, VALVE SUPPORT Price: $5.95 |
| 49 |
6EK-43856-00-00 |
SPRING, DOWN RELIEF Price: $3.65 |
| 50 |
6D8-43843-00-00 |
SCREW, VALVE LOCK Price: $5.55 |
| 51 |
6C5-43895-00-00 |
SEAT, RELIEF VALVE Price: $10.80 |
| 52 |
6C5-43854-00-00 |
SPRING, MANUAL RELEASE Price: $8.85 |
| 53 |
91318-05030-00 |
BOLT Price: $2.30 |
| 54 |
93604-26256-00 |
PIN, DOWEL Price: $1.00 |
| 55 |
6D8-43841-00-00 |
PISTON, SHUTTLE Price: $12.70 |
| 56 |
69A-4384F-00-00 |
SEAL, MAIN VALVE Price: $3.55 |
| 57 |
99080-03600-00 |
CIRCLIP This part replaces 99002-03600-00. Price: $3.55 |
| 58 |
6H1-4384G-11-00 |
SEAL, RELIEF VALVE Price: $11.40 |
| 59 |
6H1-43844-10-00 |
PIN, VALVE SUPPORT Price: $13.35 |
| 60 |
91318-03025-00 |
BOLT Price: $1.55 |
| 61 |
91318-03005-00 |
BOLT Price: $2.30 |
| 62 |
6D8-4382L-00-00 |
CAP, RELIEF VALVE Price: $2.40 |
| 63 |
6EK-43831-00-00 |
CONNECTOR, SHAFT Price: $2.50 |
| 64 |
6D8-43863-00-00 |
O-RING Price: $2.85 |
| 65 |
6H1-43875-00-00 |
RING, SNAP Price: $7.40 |
| 66 |
6EK-43845-00-00 |
SCREW, MANUAL RELEASE Price: $12.35 |
| 67 |
91380-06025-00 |
BOLT Price: $8.49 |
