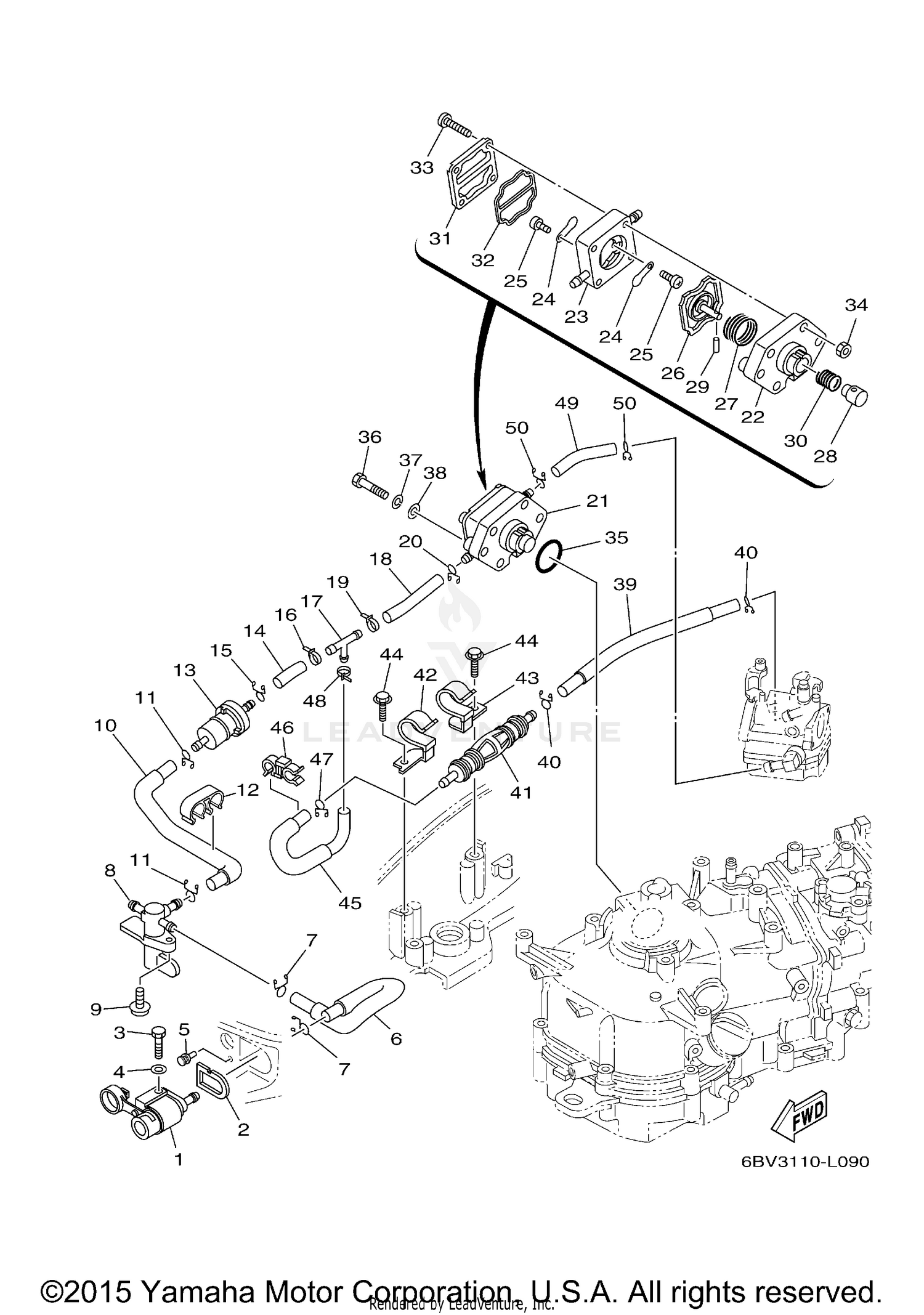

FUEL 2
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6G1-24304-11-00 | FUEL PIPE JOINT COMP. 1 This part replaces 6YL-24304-00-00. Price: $35.20 |
| 2 | 61N-24329-01-00 | SEAL This part replaces 60R-F4329-00-00. Price: $7.30 |
| 3 | 90101-06M27-00 | BOLT This part replaces 97095-06025-00. Price: $3.35 |
| 4 | 92990-06600-00 | WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 5 | 90480-04166-00 | GROMMET Price: $12.49 |
| 6 | 6EE-F4312-10-00 | PIPE 2 This part replaces 6BX-F4312-10-00. Price: $35.90 |
| 7 | 90467-09M09-00 | CLIP Price: $1.15 |
| 8 | 6BX-24500-01-00 | FUEL COCK ASSY 1 This part replaces 6BX-24500-00-00. Price: $61.10 |
| 9 | 90159-06M10-00 | SCREW, WITH WASHER Price: $5.35 |
| 10 | 6EE-F4313-10-00 | PIPE 3 This part replaces 6BX-F4313-10-00. Price: $27.30 |
| 11 | 90467-09M09-00 | CLIP Price: $1.15 |
| 12 | 90464-12809-00 | CLAMP Price: $13.85 |
| 13 | 68T-24251-01-00 | STRAINER 1 Price: $24.40 |
| 14 | 6EE-F247C-10-00 | HOSE 3 This part replaces 6BX-F247C-10-00. Price: $2.30 |
| 15 | 90467-09M09-00 | CLIP Price: $1.15 |
| 16 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 17 | 688-24378-00-00 | PIPE, JOINT 3 Price: $16.50 |
| 18 | 6BX-F247D-10-00 | HOSE 4 Price: $13.25 |
| 19 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 20 | 90467-09M09-00 | CLIP Price: $1.15 |
| 21 | 6BX-24410-01-00 | FUEL PUMP ASSY This part replaces 6BX-24410-00-00. Price: $128.35 |
| 22 | 67D-24412-00-00 | BODY 1 Price: $69.80 |
| 23 | 67D-24413-02-00 | BODY 2 Price: $50.05 |
| 24 | 62Y-24421-01-00 | VALVE, CHECK This part replaces 6A0-24421-01-00. Price: $15.30 |
| 25 | 6E7-14325-00-00 | SCREW, PAN HEAD Price: $5.00 |
| 26 | 6BX-24411-00-00 | DIAPHRAGM Price: $99.00 |
| 27 | 67D-24423-00-00 | SPRING, DIAPHRAGM Price: $9.95 |
| 28 | 6BX-13131-00-00 | PLUNGER Price: $40.10 |
| 29 | 66M-24374-00-00 | PIN Price: $6.15 |
| 30 | 6BX-24454-00-00 | SPRING Price: $6.40 |
| 31 | 67D-24414-01-00 | BODY 3 Price: $17.90 |
| 33 | 67D-24444-00-00 | SCREW Price: $5.30 |
| 34 | 95303-04600-00 | NUT This part replaces 95380-04600-00. Price: $4.75 |
| 35 | 93210-27ME3-00 | O-RING Price: $9.80 |
| 36 | 97013-06030-00 | BOLT This part replaces 97095-06030-00. Price: $2.45 |
| 37 | 92995-06100-00 | WASHER, SPRING Price: $3.45 |
| 38 | 92990-06600-00 | WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 39 | 90445-10077-00 | HOSE This part replaces 6BX-F247B-10-00. Price: $33.45 |
| 40 | 90467-09M09-00 | CLIP Price: $1.15 |
| 41 | 6BX-24360-10-00 | PRIMER PUMP ASSY Price: $38.15 |
| 42 | 6BX-24135-00-00 | CLAMP 1 Price: $23.55 |
| 43 | 6BX-24136-00-00 | CLAMP 2 Price: $23.55 |
| 44 | 90109-06M80-00 | BOLT Price: $2.95 |
| 45 | 6EE-2247A-10-00 | HOSE 1 This part replaces 6BX-F247A-10-00. Price: $32.45 |
| 46 | 90464-09021-00 | CLAMP Price: $4.50 |
| 47 | 90467-09M09-00 | CLIP Price: $1.15 |
| 48 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 49 | 90445-10074-00 | HOSE This part replaces 6BX-E3971-10-00. Price: $3.50 |
