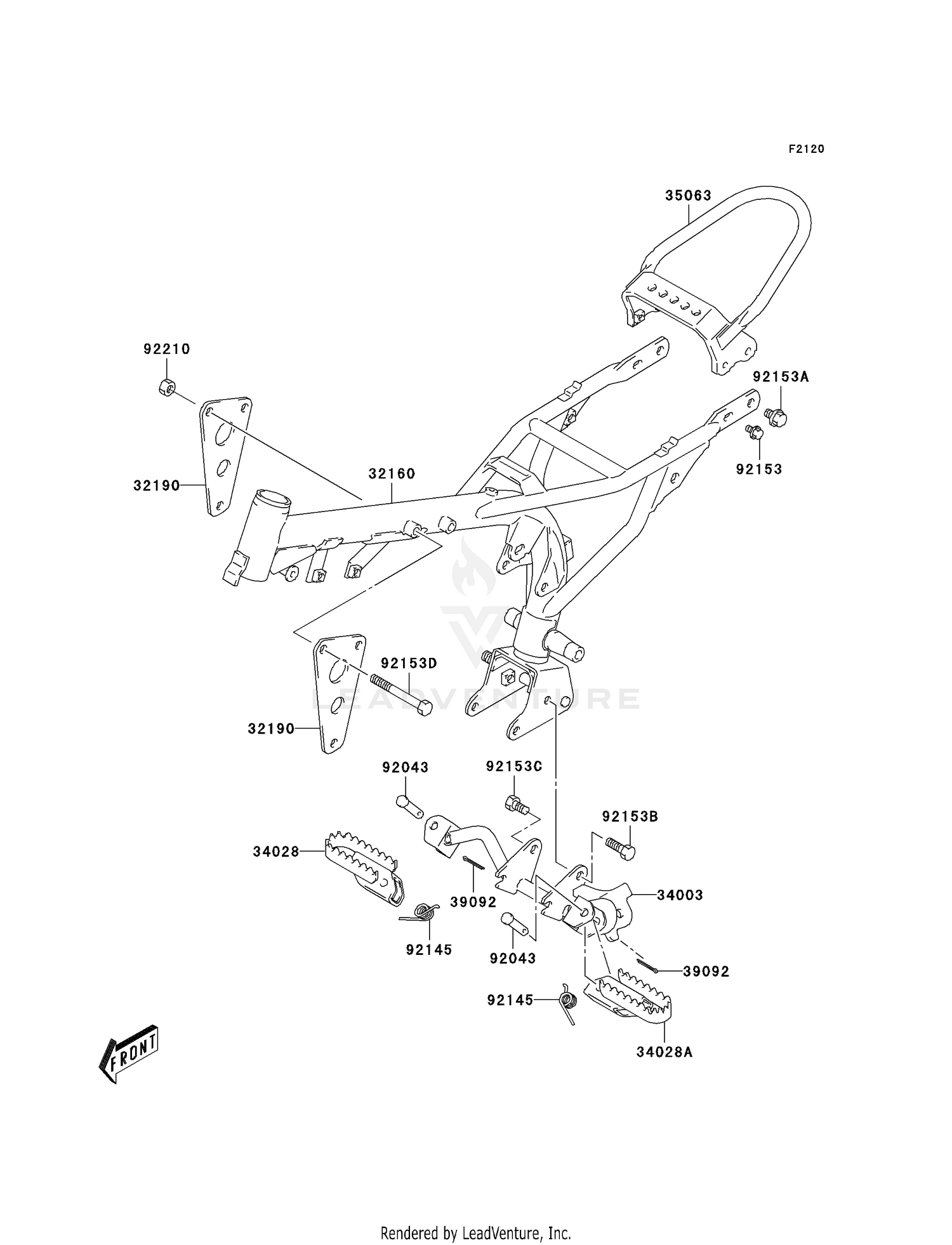

FRAME
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 32160 | 32160-S012-503 | FRAME-COMP,BLACK Price: $521.18 |
| 32190 | 32190-S007 | BRACKET-ENGINE Price: $10.48 |
| 34003 | 34003-S004 | HOLDER-STEP Price: $35.08 |
| 34028 | 34028-S005-503 | STEP,RH,BLACK Price: $17.18 |
| 34028A | 34028-S006-503 | STEP,LH,BLACK Price: $17.18 |
| 35063 | 35063-S001 | STAY,RR Price: $64.05 |
| 39092 | 39092-S020 | PIN-HAIR This part replaces 39092-S004. Price: $1.92 |
| 92043 | 92043-S046 | PIN Price: $2.42 |
| 92145 | 92145-S118 | SPRING Price: $3.64 |
| 92153 | 92153-S501 | BOLT This part replaces 92153-S010. Price: $1.92 |
| 92153A | 92153-S505 | BOLT This part replaces 92153-S015. Price: $2.40 |
| 92153B | 92153-S317 | BOLT Price: $2.42 |
| 92153C | 92153-S552 | BOLT This part replaces 92153-S321. Price: $1.92 |
| 92153D | 92153-S401 | BOLT Price: $3.51 |
