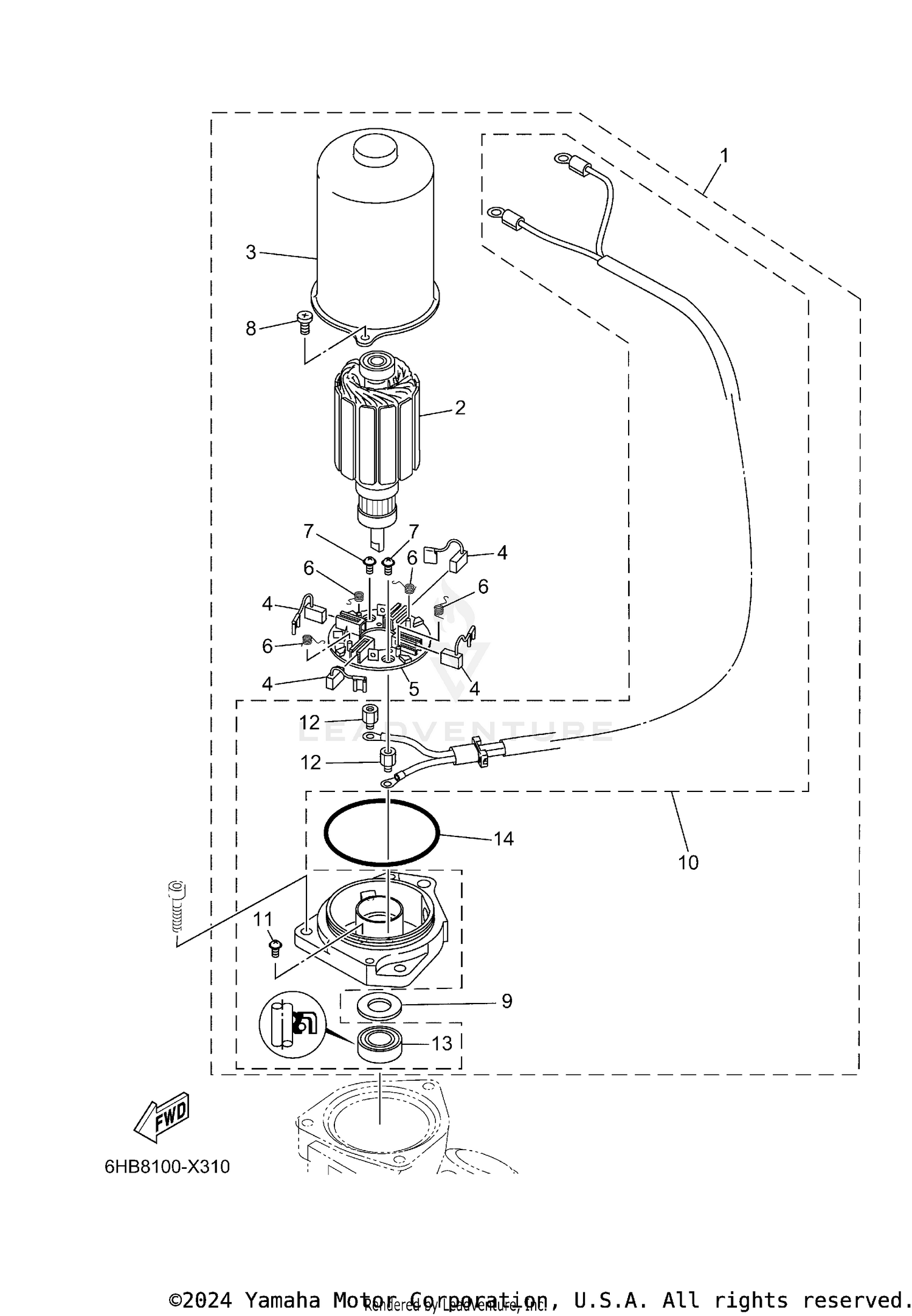

POWER TRIM TILT ASSY 2
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 69J-43880-21-00 | MOTOR ASSY This part replaces 69J-43880-20-00. Price: $756.15 |
| 2 | 6ML-43805-00-00 | ARMATURE ASSY This part replaces 6KA-43805-00-00. Price: $231.90 |
| 4 | 6KA-43892-00-00 | BRUSH 2 Price: $18.10 |
| 5 | 6KA-43806-00-00 | BRUSH HOLDER ASSY Price: $168.35 |
| 6 | 6KA-4386K-00-00 | SPRING, BRUSH Price: $10.00 |
| 7 | 97602-04306-00 | SCREW, PAN HEAD WITH WASHER Price: $2.35 |
| 8 | 6KA-43879-00-00 | SCREW, WITH WASHER Price: $3.15 |
| 9 | 6KA-4387G-00-00 | WASHER Price: $3.75 |
| 11 | 97602-04308-00 | SCREW, PAN HEAD WITH WASHER Price: $2.35 |
| 12 | 6KA-4388F-00-00 | SPACER Price: $4.65 |
| 13 | 6KA-43882-00-00 | OIL SEAL Price: $10.80 |
