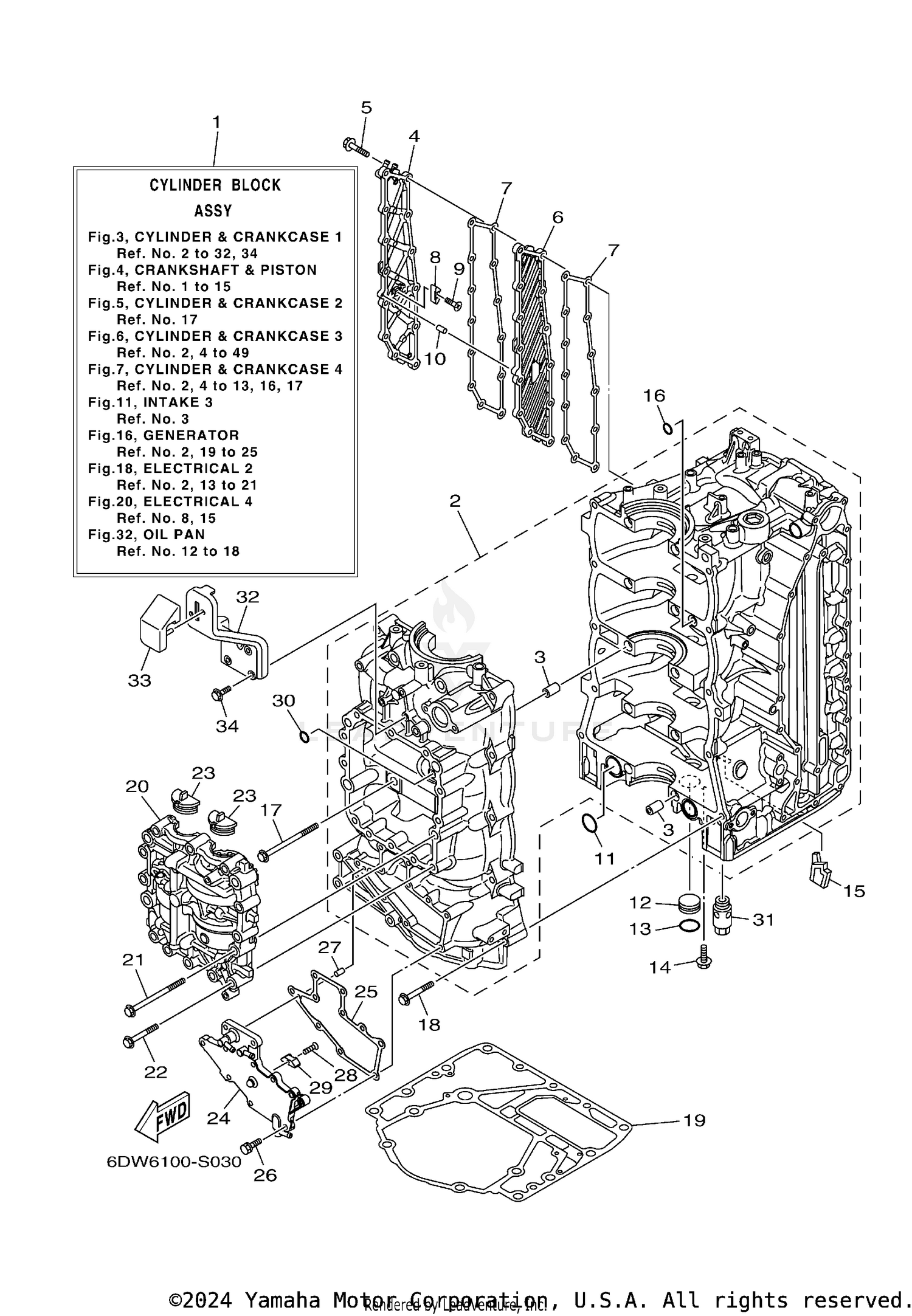

| Ref | Part Number | Description |
|---|
| 1 |
6DA-W009B-17-9S |
CYLINDER BLOCK ASSY This part replaces 6DA-W009B-13-9S. Price: $10,401.00 |
| 2 |
6DA-15109-01-9S |
CRANKCASE ASSY Price: $5,123.85 |
| 3 |
91814-18002-00 |
PIN, DOWEL Price: $4.40 |
| 4 |
6DA-15414-00-9S |
COVER, AIR CLEANER Price: $95.40 |
| 5 |
90105-06028-00 |
BOLT, FLANGE Price: $3.55 |
| 6 |
6DA-15423-00-9S |
COVER 2 Price: $65.90 |
| 7 |
6DA-15353-01-00 |
GASKET, DRAIN Price: $18.90 |
| 8 |
6E5-11325-00-00 |
ANODE Price: $5.50 |
| 9 |
98780-04016-00 |
SCREW, FLAT HEAD Price: $1.49 |
| 10 |
91690-40010-00 |
PIN, SPRING Price: $5.50 |
| 11 |
93210-25552-00 |
O-RING Price: $14.49 |
| 12 |
90338-25004-00 |
PLUG Price: $12.30 |
| 13 |
93210-25647-00 |
O-RING Price: $3.65 |
| 14 |
90119-06276-00 |
BOLT, WITH WASHER Price: $6.15 |
| 15 |
6DA-14664-01-00 |
GROMMET, WATER SHUT Price: $5.95 |
| 16 |
93210-12648-00 |
O-RING Price: $10.49 |
| 17 |
90105-10406-00 |
BOLT, FLANGE Price: $5.80 |
| 18 |
90119-08M66-00 |
BOLT, WITH WASHER Price: $3.65 |
| 20 |
6DA-11500-01-00 |
BALANCER ASSY This part replaces 6DA-11500-00-00. Price: $1,309.99 |
| 21 |
90105-10406-00 |
BOLT, FLANGE Price: $5.80 |
| 22 |
90105-08175-00 |
BOLT, FLANGE Price: $6.40 |
| 23 |
63P-11512-00-00 |
SEAL, CRANK COVER Price: $8.60 |
| 24 |
6DA-15411-00-9S |
COVER, CRANKCASE 1 Price: $99.70 |
| 25 |
6DA-15451-01-00 |
GASKET, CRANKCASE COVER 1 Price: $14.35 |
| 26 |
90119-06MA3-00 |
BOLT, WITH WASHER Price: $3.20 |
| 27 |
91690-40010-00 |
PIN, SPRING Price: $5.50 |
| 28 |
98780-04016-00 |
SCREW, FLAT HEAD Price: $1.49 |
| 29 |
6E5-11325-00-00 |
ANODE Price: $5.50 |
| 30 |
93210-08001-00 |
O-RING Price: $1.99 |
| 31 |
63P-13490-00-00 |
RELIEF VALVE ASSY Price: $162.30 |
| 32 |
6DA-42744-00-00 |
STAY Price: $49.00 |
| 33 |
6DA-42662-01-00 |
DAMPER Price: $10.90 |
