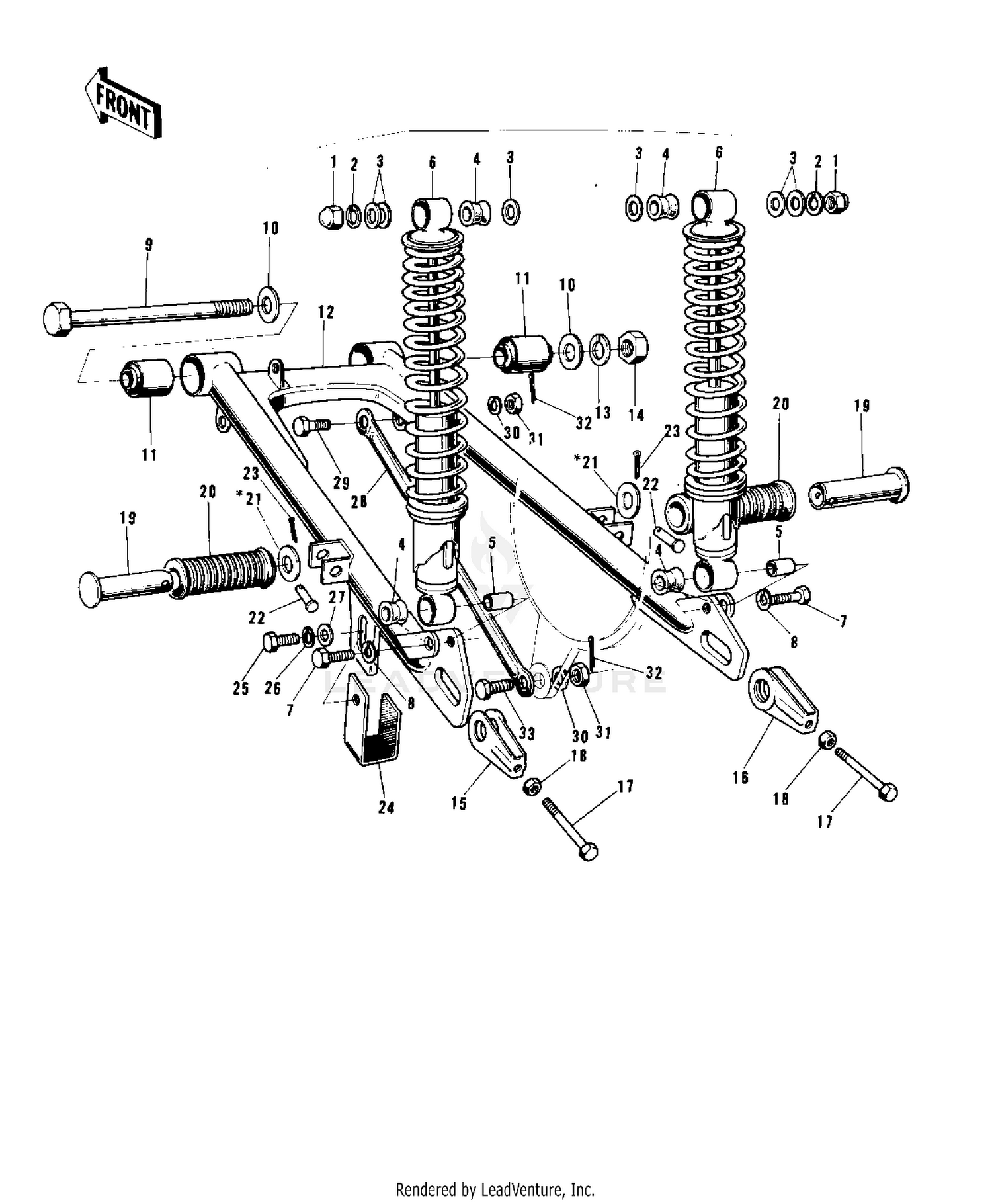

| Ref | Part Number | Description |
|---|
| 1 |
92020-014 |
NUT 12MM Price: $9.45 |
| 2 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 3 |
410AA1200 |
WASHER-PLAIN-SMALL,12MM This part replaces 410B1200. Price: $0.72 |
| 4 |
92075-1020 |
DAMPER,SHOCKABSORBER Price: $4.92 |
| 5 |
45016-003 |
BUSH SHCK ABS PVT SFT Price: $15.92 |
| 7 |
112N1035 |
BOLT-UPSET This part replaces 113N1035. Price: $9.83 |
| 8 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 9 |
33032-034 |
SHAFT-SWING ARM PIVOT Price: $38.31 |
| 10 |
410AA1200 |
WASHER-PLAIN-SMALL,12MM This part replaces 410B1200. Price: $0.72 |
| 11 |
92092-005 |
BUSHING-RUBBER Price: $14.10 |
| 13 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 14 |
92015-1381 |
NUT,12MM This part replaces 314B1200. Price: $2.67 |
| 17 |
92002-1076 |
BOLT,8X50 This part replaces 92001-1399. Price: $9.48 |
| 18 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 312B0800. Price: $0.59 |
| 19 |
34028-009 |
STEP,RR Price: $26.11 |
| 20 |
92076-024 |
RUBBER,REAR FOOTREST Price: $24.87 |
| 22 |
92043-1464 |
PIN,6X28 Price: $8.10 |
| 23 |
550AA2015 |
PIN-COTTER,2.0X15 This part replaces 550D2015. Price: $1.12 |
| 24 |
55020-007 |
GUARD-CHAIN Price: $9.98 |
| 25 |
115BA0816 |
BOLT-SMALL-UPSET This part replaces 115G0816. Price: $0.70 |
| 26 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 27 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 28 |
43007-028 |
TORQUE LINK-RR BRAKE Price: $13.96 |
| 29 |
92003-017 |
BOLT TORQUE LINK FIT Price: $5.68 |
| 30 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 31 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 32 |
550AA2015 |
PIN-COTTER,2.0X15 This part replaces 550D2015. Price: $1.12 |
