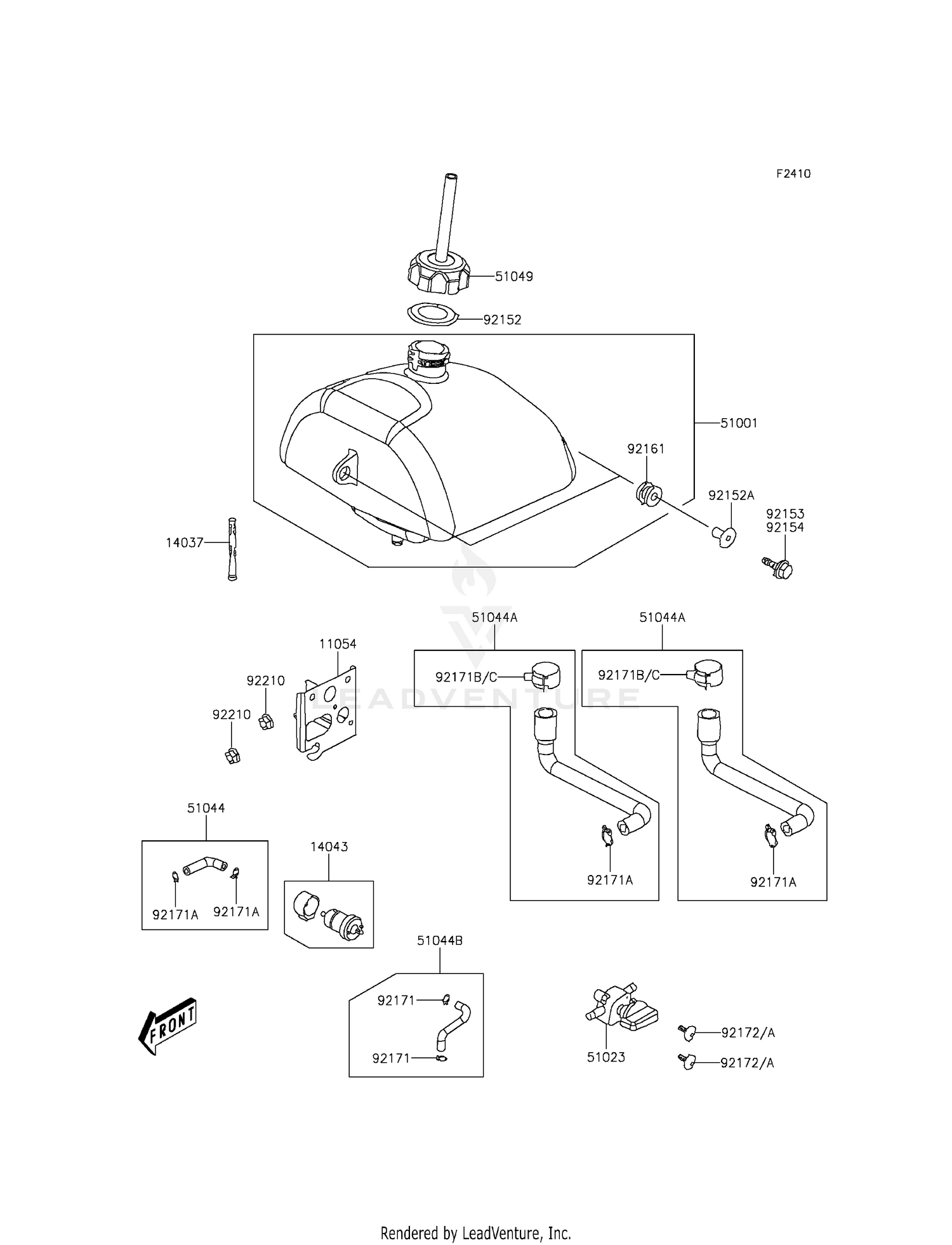

FUEL TANK
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 11054 | 11054-Y003 | BRACKET Price: $7.36 |
| 14037 | 14037-Y001 | SCREEN Price: $4.16 |
| 14043 | 14043-Y002 | FILTER,FUEL Price: $11.89 |
| 51001 | 51001-Y005 | TANK-COMP-FUEL Price: $227.95 |
| 51023 | 51023-Y006 | TAP-ASSY This part replaces 51023-Y003. Price: $28.41 |
| 51044 | 51044-Y005 | TUBE-ASSY,FUEL Price: $5.31 |
| 51044A | 51044-Y001 | TUBE-ASSY,FUEL TANK This part replaces 51044-Y007. Price: $3.57 |
| 51044B | 51044-Y008 | TUBE-ASSY,FUEL Price: $9.00 |
| 51049 | 51049-Y002 | CAP-TANK Price: $24.86 |
| 92152 | 92152-Y001 | COLLAR Price: $1.90 |
| 92152A | 92152-Y013 | COLLAR Price: $1.09 |
| 92153 | 92153-Y049 | BOLT,FLANGE,6X20 Price: $0.85 |
| 92161 | 92161-Y001 | DAMPER Price: $3.44 |
| 92171 | 92171-Y010 | CLAMP Price: $0.79 |
| 92171A | 92171-Y011 | CLAMP Price: $0.79 |
| 92171C | 92171-Y021 | CLAMP Price: $1.46 |
| 92172 | 92172-Y010 | SCREW,5X16 Price: $0.82 |
