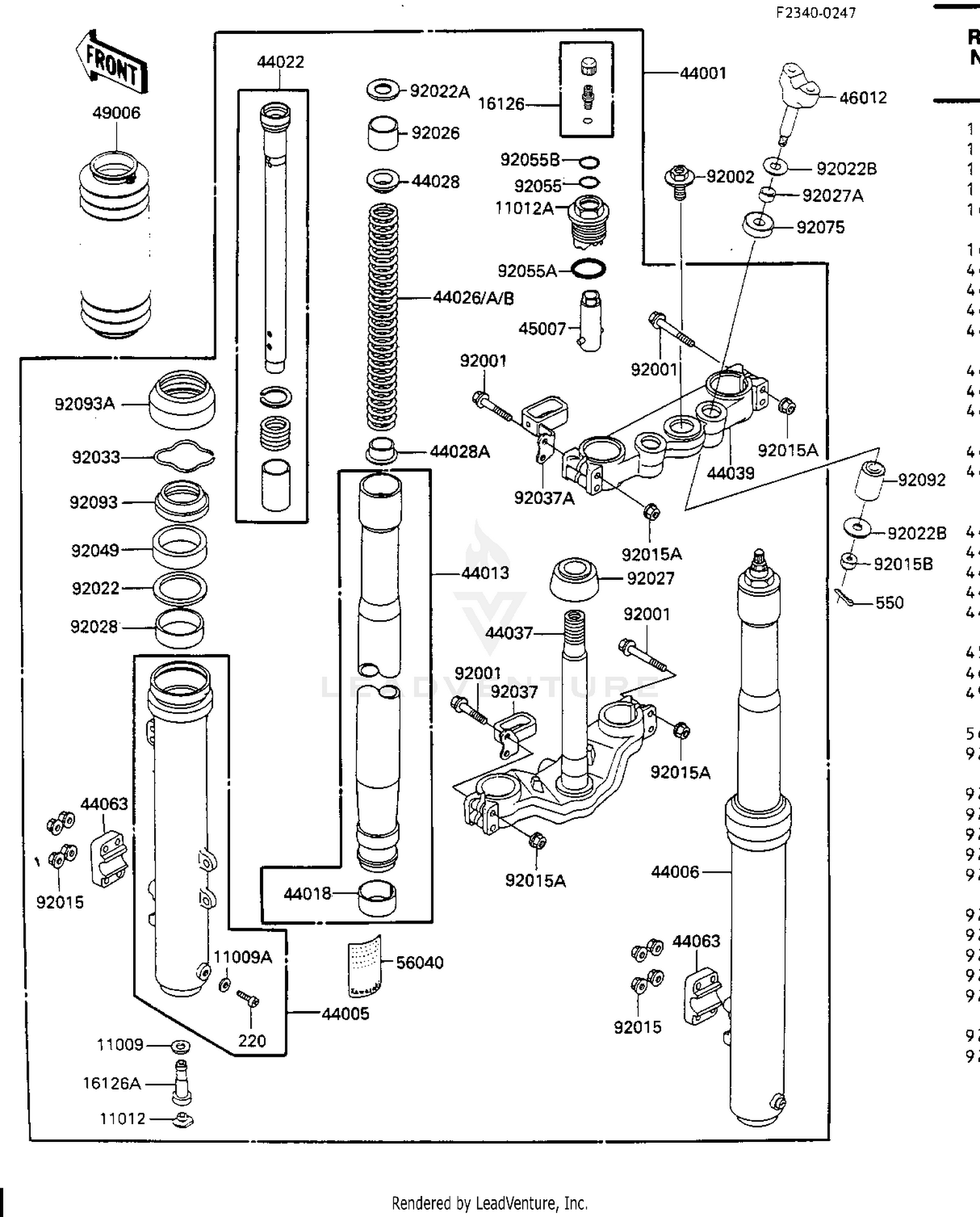

| Ref | Part Number | Description |
|---|
| 220 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 11009 |
11009-1324 |
GASKET,FORK CYLINDER Price: $5.54 |
| 11009A |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 11012 |
11012-1381 |
CAP,FORK CYLINDER Price: $6.11 |
| 11012A |
11012-1439 |
CAP Price: $61.63 |
| 16126 |
16126-1052 |
VALVE AIR Price: $35.06 |
| 16126A |
16126-1134 |
VALVE,FORK CYLINDER Price: $154.94 |
| 44001 |
44001-1561 |
FORK-FRONT Price: $1,248.18 |
| 44005 |
44005-1224 |
PIPE-LEFT FORK OUTER Price: $285.63 |
| 44006 |
44006-1224 |
PIPE-RIGHT FORK OUTER Price: $285.63 |
| 44013 |
44013-1223 |
PIPE-FORK INNER Price: $377.31 |
| 44018 |
44018-1005 |
PISTON-FORK Price: $41.55 |
| 44022 |
44022-1174 |
CYLINDER-FORK Price: $127.30 |
| 44026A |
44026-1293 |
SPRING-FRONT FORK,K=0 Price: $81.15 |
| 44028 |
44028-1010 |
GUIDE-FORK SPRING Price: $11.30 |
| 44028A |
44028-1054 |
GUIDE-FORK SPRING Price: $6.44 |
| 44037 |
44037-1177 |
HOLDER-FORK UNDER Price: $423.58 |
| 44039 |
44039-1120 |
HOLDER-FORK UPPER Price: $233.89 |
| 44063 |
44063-1008 |
HOLDER-FRONT AXLE Price: $53.61 |
| 45007 |
45007-1055 |
ADJUSTER-SPRING,FRONT Price: $45.70 |
| 46012 |
46012-1124 |
HOLDER-HANDLE,LWR Price: $43.61 |
| 56040 |
56040-1120 |
LABEL,FRONT FORK Price: $6.10 |
| 92001 |
92001-1639 |
BOLT Price: $8.05 |
| 92002 |
92002-1399 |
BOLT,FORK TOP Price: $30.82 |
| 92015 |
92210-0630 |
NUT,FLANGED,6MM This part replaces 92015-1078. Price: $2.00 |
| 92015A |
92015-1485 |
NUT,FLANGED,8MM Price: $5.38 |
| 92015B |
92210-1184 |
NUT,LOCK,10MM This part replaces 92019-021. Price: $6.11 |
| 92022 |
92022-1299 |
WASHER Price: $8.58 |
| 92022A |
92022-1665 |
WASHER,FORK SPRING Price: $4.04 |
| 92022B |
92022-196 |
WASHER-HANDLEBAR FIT Price: $4.63 |
| 92026 |
92026-1247 |
SPACER,FORK SPRING Price: $9.50 |
| 92027 |
92027-1427 |
COLLAR,FRONT FORK Price: $78.19 |
| 92027A |
92027-1850 |
COLLAR,10.5X15.1X6 Price: $7.29 |
| 92028 |
92028-1581 |
BUSHING This part replaces 92028-1145. Price: $21.80 |
| 92033 |
92033-1077 |
RING-SNAP Price: $4.96 |
| 92037 |
92037-1627 |
CLAMP Price: $27.70 |
| 92037A |
92037-1628 |
CLAMP Price: $19.52 |
| 92049 |
92049-1295 |
SEAL-OIL,FORK OUTER T This part replaces 92049-1104. Price: $22.14 |
| 92055 |
670B2022 |
O RING,22MM This part replaces 92055-1062. Price: $4.69 |
| 92055A |
92055-1123 |
RING-O Price: $6.22 |
| 92055B |
92055-1288 |
RING-O Price: $3.42 |
| 92075 |
92075-1725 |
DAMPER,HANDLE HOLDER Price: $3.59 |
| 92092 |
92092-1053 |
BUSHING-RUBBER Price: $63.71 |
| 92093 |
92093-1086 |
SEAL,FORK DUST Price: $19.48 |
| 92093A |
92093-1184 |
SEAL,FORK Price: $22.59 |
