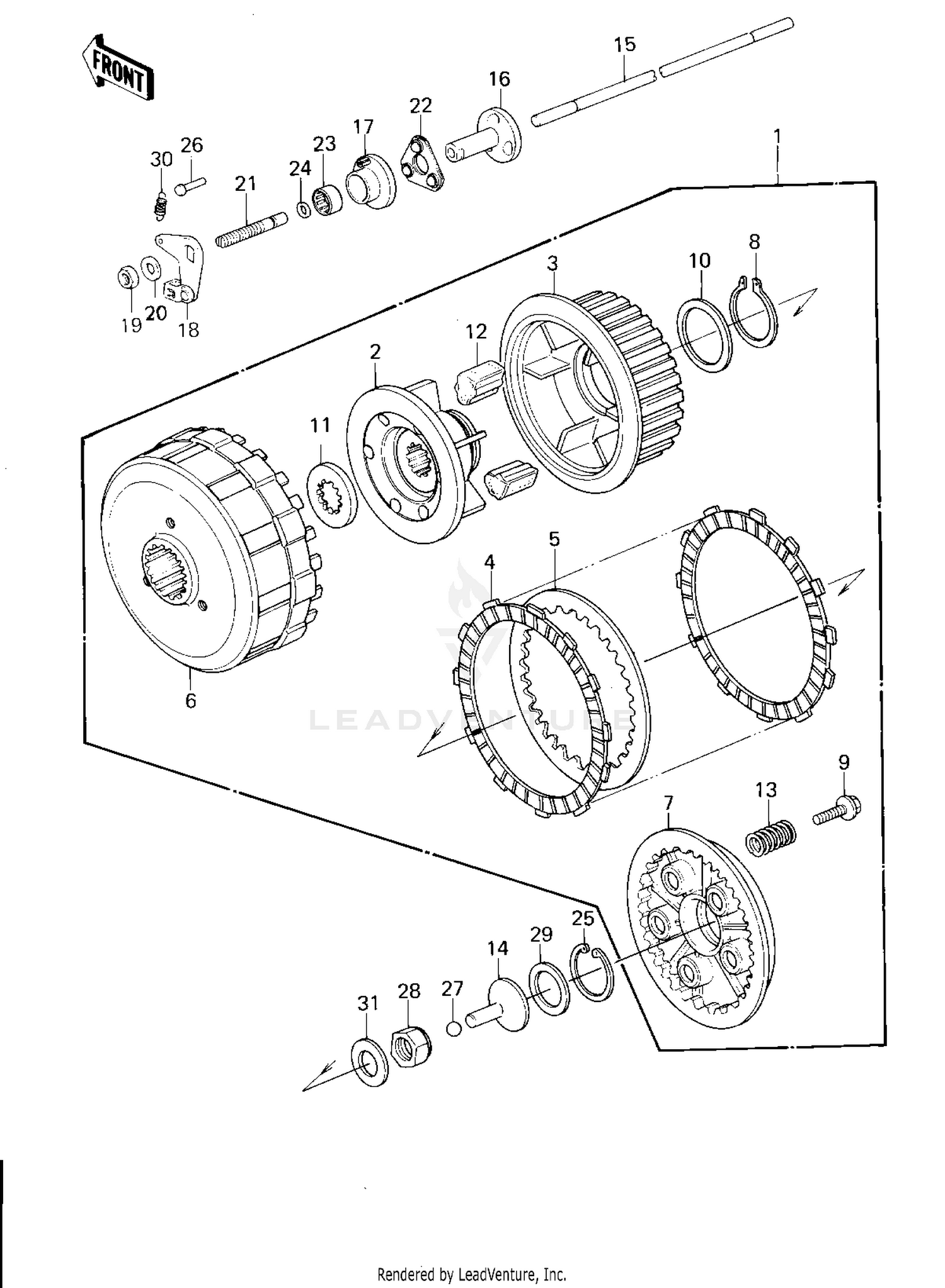

| Ref | Part Number | Description |
|---|
| 1 |
13081-1018 |
CLUTCH-ASSY Price: $536.40 |
| 2 |
13087-1006 |
HUB,CLUTCH,INNER Price: $117.33 |
| 3 |
13087-1007 |
HUB,CLUTCH,OUTER Price: $169.87 |
| 4 |
13088-1004 |
PLATE,FRICTION Price: $37.51 |
| 5 |
13089-1003 |
PLATE,CLUTCH,STEEL Price: $23.41 |
| 6 |
13096-1007 |
HOUSING,CLUTCH Price: $356.25 |
| 7 |
13187-1002 |
PLATE,CLUTCH SPRING Price: $46.29 |
| 8 |
480J5000 |
CIRCLIP,50MM Price: $9.70 |
| 9 |
92001-1066 |
BOLT,FLANGED,6X18 Price: $6.22 |
| 10 |
92022-1081 |
WASHER,50.3X60X1.0 Price: $7.20 |
| 11 |
92022-1082 |
WASHER,SPLINED Price: $27.93 |
| 12 |
92075-1088 |
DAMPER,CLUTCH Price: $18.02 |
| 13 |
92081-1149 |
SPRING,CLUTCH Price: $12.62 |
| 14 |
13116-022 |
PUSHER,CLUTCH SPRG PL Price: $26.40 |
| 15 |
13116-1013 |
ROD,PUSH,CLUTCH,8X328 Price: $46.74 |
| 16 |
13119-1005 |
CAM,RELEASE,INNER Price: $49.87 |
| 17 |
13119-1006 |
CAM,RELEASE,OUTER Price: $52.23 |
| 18 |
13236-1008 |
LEVER,CLUTCH RELEASE Price: $15.41 |
| 19 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 318B0800. Price: $0.59 |
| 20 |
411AA0800 |
WASHER-PLAIN,8MM This part replaces 411B0800. Price: $0.96 |
| 21 |
92009-1038 |
SCREW,SLOTTED,8M/M Price: $12.15 |
| 22 |
92045-1014 |
BALL ASSY,CLUTCH RELE Price: $11.73 |
| 23 |
92046-1013 |
BEARING,N,TLA1412 Price: $47.40 |
| 24 |
670B1505 |
O RING,5MM Price: $3.26 |
| 25 |
481J4500 |
CIRCLIP-TYPE-C,45MM Price: $2.06 |
| 26 |
530C0420 |
RIVET,ROUND,4X20 Price: $4.05 |
| 28 |
92015-1054 |
NUT,20M/M,CLUTCH HUB Price: $10.99 |
| 29 |
92022-1097 |
WASHER,30X44.7X3.2 Price: $8.22 |
| 30 |
92083-011 |
SPRING GEAR CHNG LEV Price: $4.09 |
