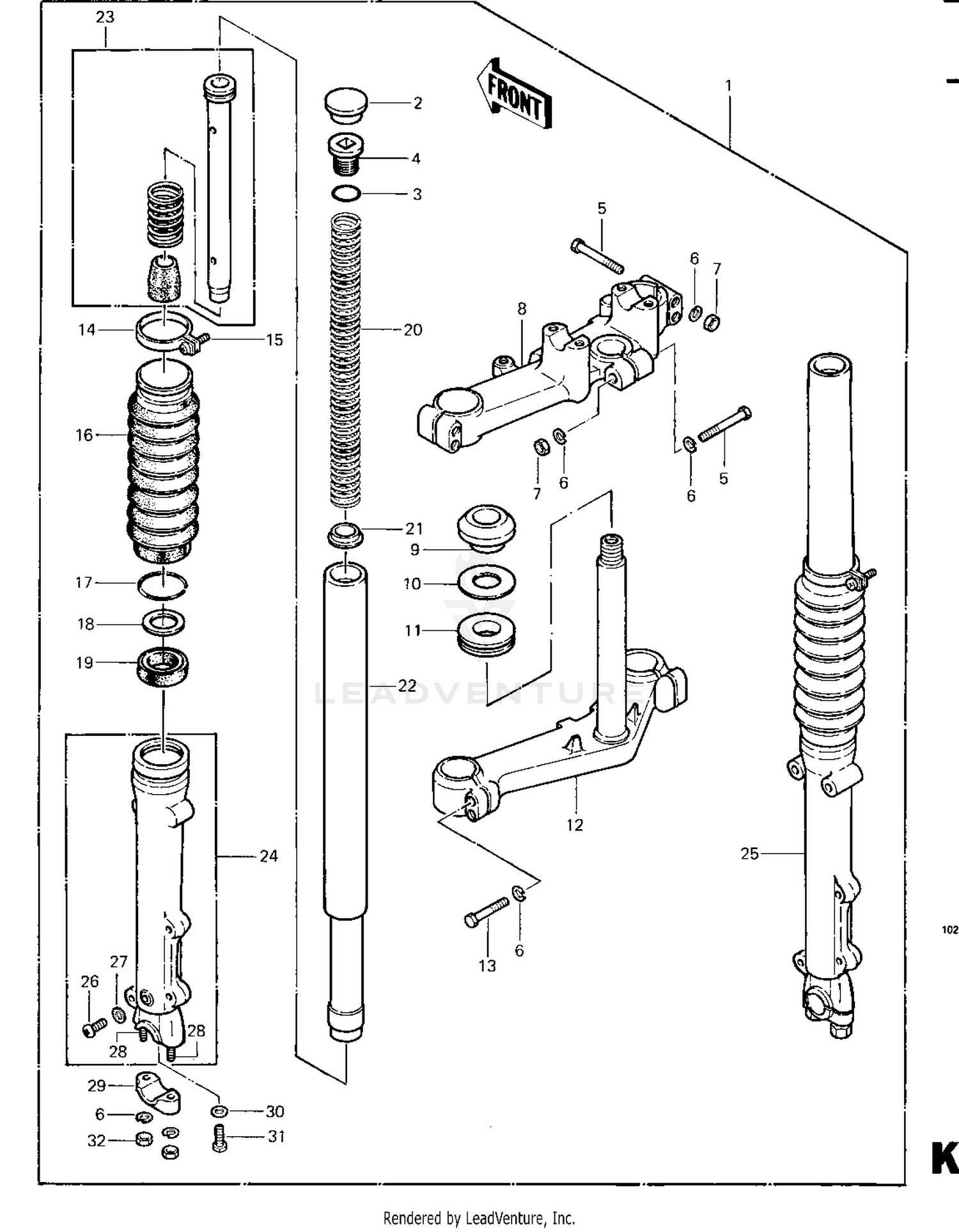

| Ref | Part Number | Description |
|---|
| 1 |
44001-4005 |
FORK-FRONT Price: $1,174.75 |
| 2 |
11012-1018 |
CAP,RUBBER Price: $15.82 |
| 3 |
92055-1012 |
O RING,FORK TOP Price: $8.50 |
| 4 |
44029-1046 |
SEAT-FORK SPRING Price: $22.33 |
| 5 |
44041-038 |
BOLT-HEX HEAD,8X55 Price: $9.41 |
| 6 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 7 |
323N0800 |
NUT,CAP,8M/M Price: $4.60 |
| 8 |
44039-1003 |
HEAD,STEERING STEM Price: $358.24 |
| 9 |
92048-0033 |
RACE,STEERING STEM BEARING This part replaces 92047-012. Price: $14.60 |
| 10 |
92022-231 |
WASHER,30.5X50X0.6 Price: $4.69 |
| 11 |
92056-003 |
SEAL-OIL,STEERING STEM Price: $8.86 |
| 12 |
44037-1027 |
STEM,STEERING Price: $471.73 |
| 13 |
115BA0840 |
BOLT-SMALL-UPSET This part replaces 115G0840. Price: $6.45 |
| 14 |
92072-1046 |
BAND,BOOT Price: $10.04 |
| 15 |
220AA0420 |
SCREW-PAN-CROS,4X20 This part replaces 220B0420. Price: $2.67 |
| 16 |
49016-1006 |
BOOTS,FORK Price: $63.80 |
| 17 |
92033-1002 |
CIRCLIP Price: $4.10 |
| 18 |
92022-1013 |
WASHER Price: $17.56 |
| 19 |
92049-1180 |
SEAL-OIL,FRONT FORK This part replaces 92049-1005. Price: $22.14 |
| 20 |
44026-1002 |
SPRING,FORK Price: $61.64 |
| 21 |
44028-1001 |
GUIDE,FORK SPRING Price: $7.78 |
| 22 |
44013-1002 |
TUBE,FORK INNER Price: $250.63 |
| 23 |
44022-4002 |
CYLINDER-FORK Price: $87.46 |
| 24 |
44005-1004 |
TUBE,LH,FORK OUTER Price: $391.21 |
| 25 |
44006-1004 |
TUBE,RH,FORK OUTER Price: $463.26 |
| 26 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 27 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 28 |
92004-1009 |
STUD,8X35 Price: $6.38 |
| 29 |
44063-014 |
HOLDER,FRONT AXLE Price: $33.28 |
| 30 |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 31 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
